200μH Toroidal Inductor with Double Wire Winding for Energy Storage and Power Filtering

Brand Name:	ZXY
Model Number:	T953
MOQ:	Negotiable
Price:	Negotiable
Packaging Details:	carton
Payment Terms:	L/C,D/A,D/P,T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China Guangdong

Certification:

RoHS,ISO9001,CE

Product Type:

Toroidal Inductor

Inductance:

200 μH

Core Type:

Magnetic Ring / Toroidal Core

Winding Type:

Double-Wire Winding

Function:

Energy Storage & Power Filtering

Frequency Application:

High-Frequency Power Circuits

Supply Ability:

50000

Highlight:

200μH Toroidal Inductor

Double Wire Winding Power Inductor

Energy Storage Magnetic Ring Inductor

Product Description

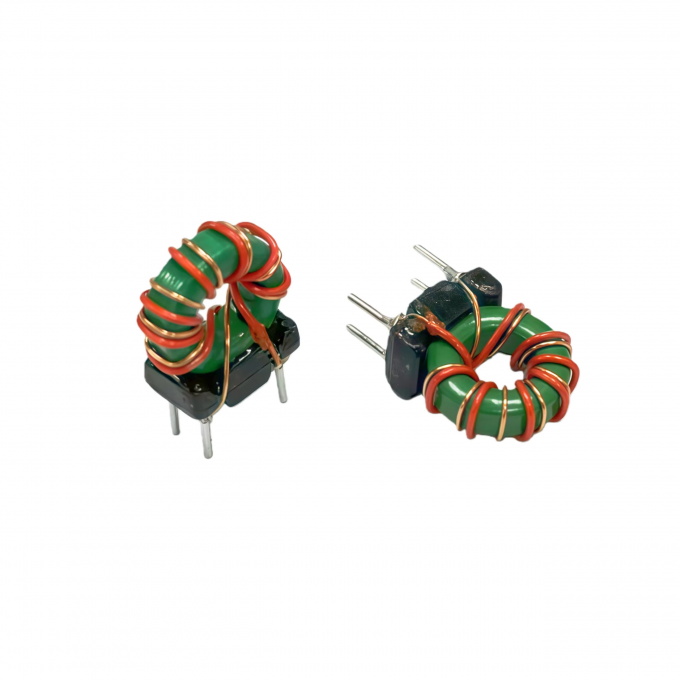

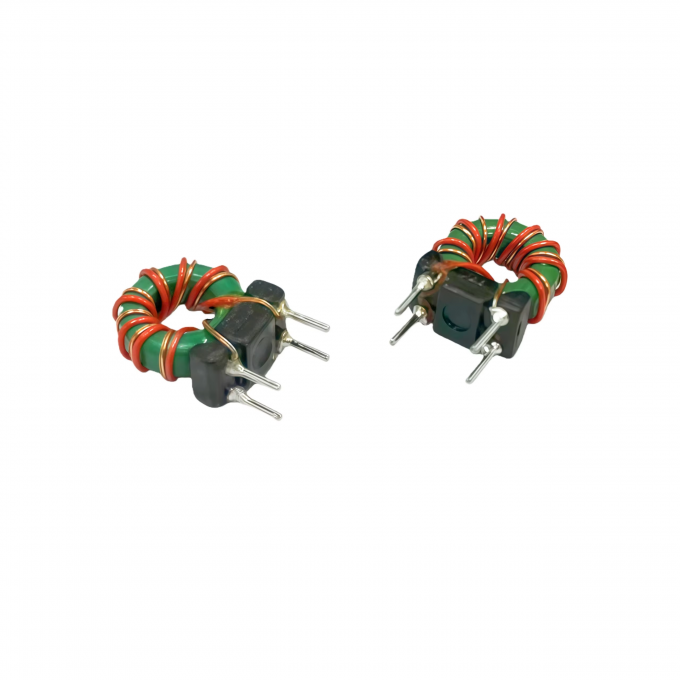

T9×5×3 200μH Toroidal Inductor Double Wire Winding Magnetic Ring Power Inductor

The T9×5×3 Toroidal Inductor features 200μH inductance with a double wire winding structure. The magnetic ring core offers low magnetic leakage, high permeability, and stable magnetic performance. This power inductor is ideal for energy storage circuits, EMI filtering, power supply converters, and various electronic applications.

Custom winding parameters, wire gauge, and inductance values are available to meet diverse project requirements. Manufactured under strict quality control, our toroidal inductors are RoHS compliant and provide reliable consistency for mass production.

Key Advantages

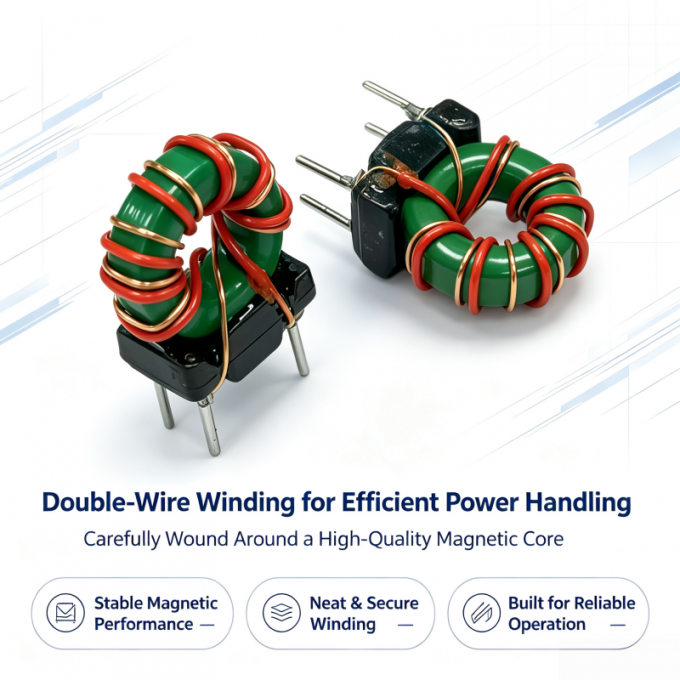

Double wire winding design for convenient circuit connection and balanced current transmission
Low magnetic flux leakage to effectively reduce electromagnetic interference
High magnetic core permeability with small size and high inductance stability
Excellent temperature resistance with stable performance under continuous operation
OEM & custom specifications support for flexible application scenarios
RoHS compliant for global electronic product projects

Specifications

Product Name	T9×5×3 200μH Toroidal Inductor
Core Dimension	T9×5×3 (OD9mm, ID5mm, Height3mm)
Inductance	200μH
Winding Type	Double Wire Winding
Core Type	Toroidal Magnetic Ring
Application	Energy Storage, EMI Filtering, Power Converter
Compliance	RoHS
Customization	Support wire gauge, inductance, winding customization
MOQ	1000pcs
Certification	ISO9001

Product Images

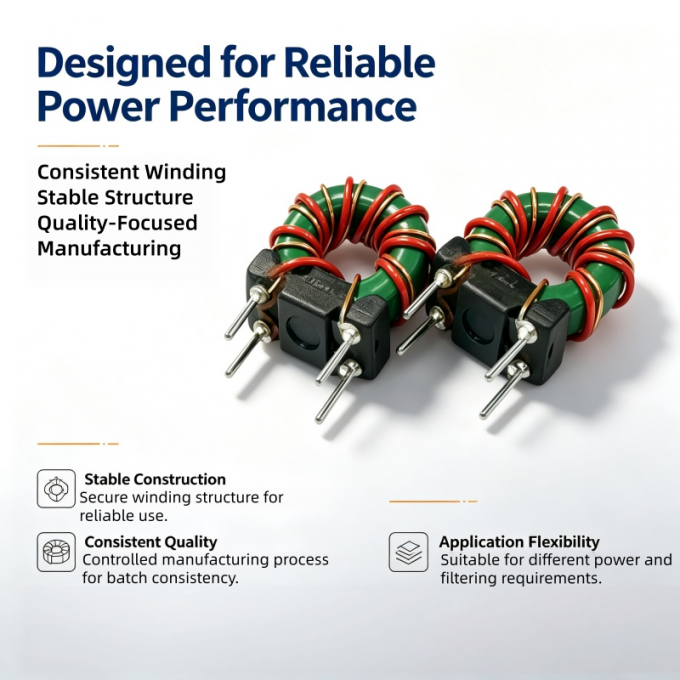

T9×5×3 Toroidal Inductor application diagram
