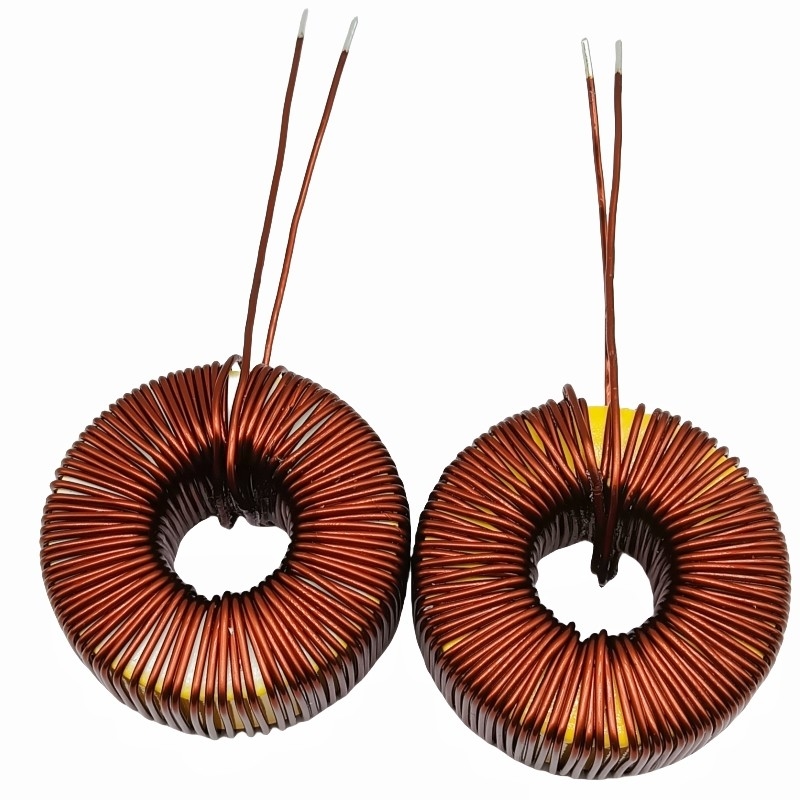

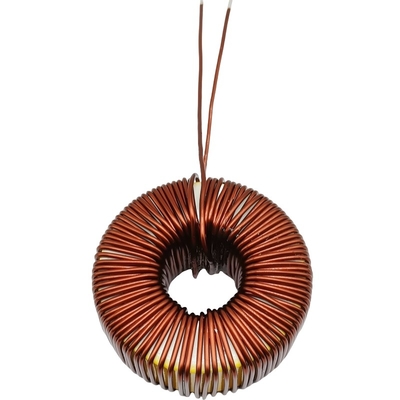

Custom Inductance High Current Power Toroidal Inductor Magnetic Ring

Brand Name:	ZXY
Model Number:	T Series Inductor
MOQ:	Negotiable
Price:	Negotiable
Packaging Details:	Customized cartons
Payment Terms:	T/T paypal xtransfer

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen,China

Certification:

RoHS,ISO9001,CE

Features:

High Performance

Supplier Type:

Manufacturer

Material:

Copper Wire,Magnetic Ring

Inductance:

Custom

Keywords:

High Current Power Toroidal Inductor

Coil Structure:

Toroidal

Supply Ability:

2000K-pcs/month

Highlight:

Toroidal Core Inductor 1000uh

horizontal circular inductor 1000uh 22uh

Toroidal Core Inductor 200uh

Product Description

Custom Inductance High Current Power Toroidal Inductor Magnetic Ring

1.Product Description

1.Basic Principle

High Current Power Toroidal Inductor consists of a coil of wire wound around a toroidal (doughnut-shaped) core made of magnetic material (e.g., ferrite or powdered iron).

When an electric current passes through the coil, it generates a magnetic field within the core.

2.Energy Storage

The inductor stores energy in its magnetic field when current flows through it.

3.Current Handling

The toroidal shape ensures uniform magnetic flux distribution, allowing the inductor to handle high currents without saturation.

The low DC resistance (DCR) minimizes power loss, making it efficient for high-current applications.

4.Noise Suppression

The closed-loop design of the toroidal core reduces electromagnetic interference (EMI), making it ideal for noise-sensitive circuits.

Characteristic	Description
High Current Capacity	Designed to handle high current levels, making it suitable for power applications.
Customizable	Can be tailored to specific current, inductance, and size requirements.
High Magnetic Efficiency	Toroidal shape minimizes magnetic flux leakage, enhancing performance.
Compact Design	Toroidal core allows for a compact and space-saving design.
Mechanical Durability	Robust construction ensures long-term reliability.
High Thermal Stability	Can operate at high temperatures without significant performance degradation.
Wide Frequency Range	Suitable for both low and high-frequency applications.

2.Functions

High Current Power Toroidal Inductor, i.e. High Current Power Toroidal Inductor, has the following main functions:

1. Energy storage function

2. Filtering function

3. Limit current changes

4. Adjustment of voltage and current

5. Preventing backlash voltage

6. Electromagnetic compatibility optimization

3.Applications

High current power toroidal inductors are used in a wide range of applications, including the following fields:

-Power electronics field

-Industrial automation

-Automotive electronics

-Communication field

-New energy field

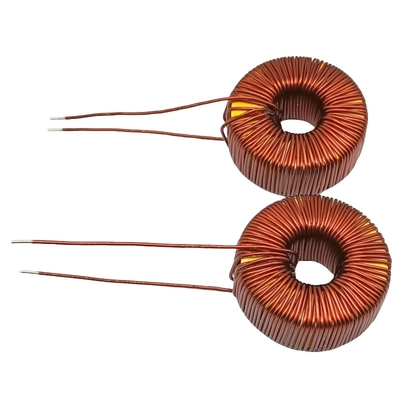

Custom Inductance High Current Power Toroidal Inductor Magnetic Ring 0

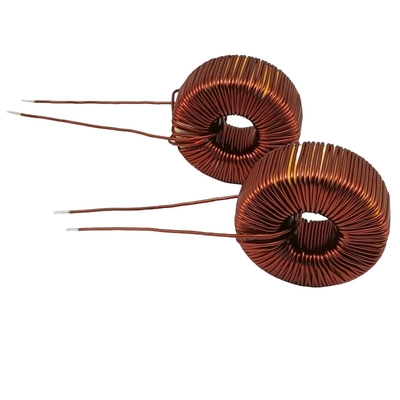

Custom Inductance High Current Power Toroidal Inductor Magnetic Ring 1
