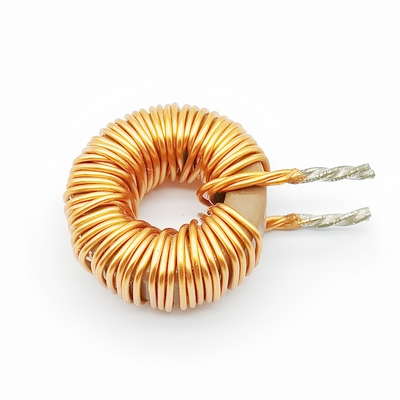

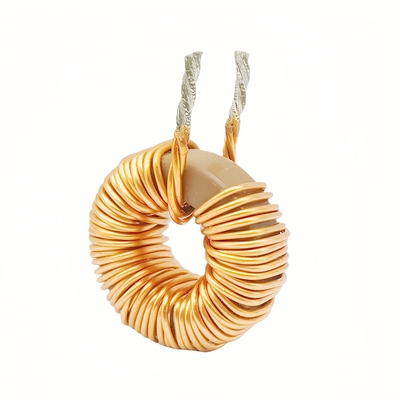

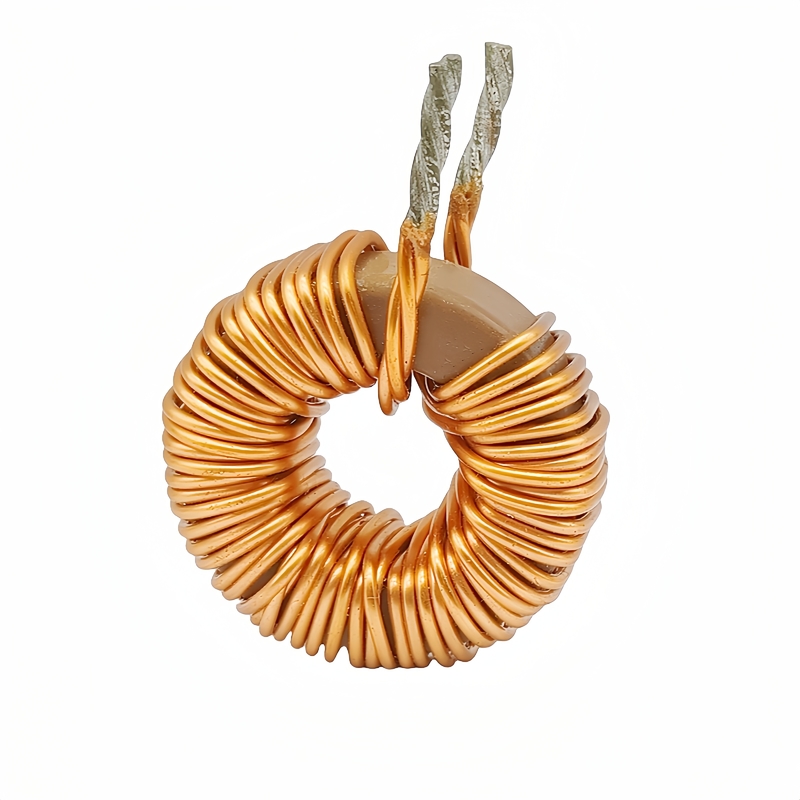

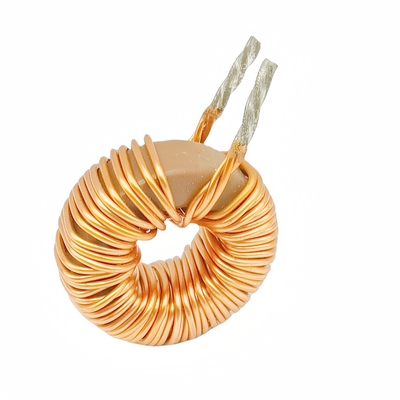

Plug-In Magnetic Ring Inductor Three Wire Parallel Winding Energy Storage Filter

Plug in magnetic ring inductor is an electronic component designed for convenient installation on circuit boards. Its core structure consists of a magnetic ring and a winding wound around it. Magnetic rings are usually made of materials with high magnetic permeability, such as ferrite, which can effectively concentrate the magnetic field, reduce magnetic flux leakage, enhance electromagnetic shielding effect, and reduce interference with surrounding components. The winding is made of wires of different specifications according to application requirements to achieve specific inductance values.

This inductor has excellent inductance performance, can maintain stability over a wide frequency range, effectively suppress high-frequency noise and electromagnetic interference, and is widely used in power filtering, signal processing and other circuits. Its plug-in design is easy to install and replace, suitable for various circuit board layouts, especially in scenarios that require high space utilization and maintenance convenience, with obvious advantages. In addition, it also has good temperature stability and mechanical strength, which can adapt to different working environments and ensure long-term stable operation of the circuit.

2.Craftsmanship

The manufacturing process of plug-in magnetic ring inductors involves multiple key links, which are closely connected and jointly determine the performance and quality of the inductors. Here is a detailed introduction for you:

1. Choose materials

2. Wire selection - winding method: manual winding/semi-automatic winding/fully automatic winding

3. Pin Forming and Installation

Pin Material - Forming Process: By stamping, bending, and other processes, the pins are processed into the desired shape, such as direct insertion, bent leg, etc., for plug-in installation with circuit boards.
Installation and fixation

4. Insulation treatment
Immersion treatment - tape wrapping treatment

5. Testing and Inspection
Inductance measurement - DC resistance test - Insulation performance test - Voltage withstand test

​​​
