DR1016-15uh I-shaped inductor charger/switch power supply dedicated vertical plug-in inductor

Brand Name:	ZXY
Model Number:	DR1016
MOQ:	negotiable
Price:	negotiable
Packaging Details:	carton
Payment Terms:	L/C,T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China Guangdong

Certification:

IS09001/ CE

Physical Dimension:

Φ10mm × Height 16mm

Inductance Value:

15 Microhenry (15uH)

Mounting Type:

2-Pin Vertical Through Hole

Winding Material:

High Purity Enameled Copper Wire

Production Standard:

100% Electrical Full Inspection

Main Function:

Energy Storage & EMI Filtering

Supply Ability:

50000

Product Description

DR1016-15uh I-shaped inductor charger/switch power supply dedicated vertical plug-in inductor

1. Product Brief Introduction

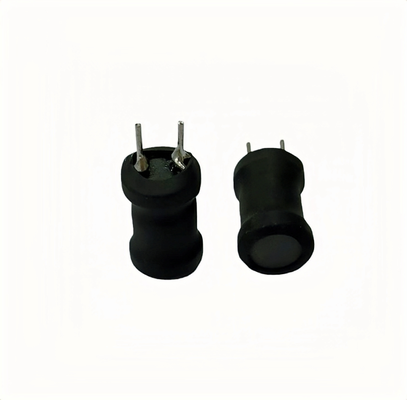

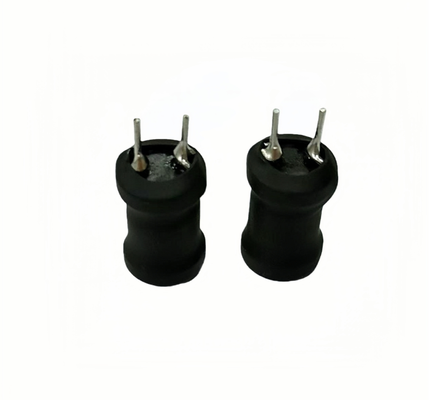

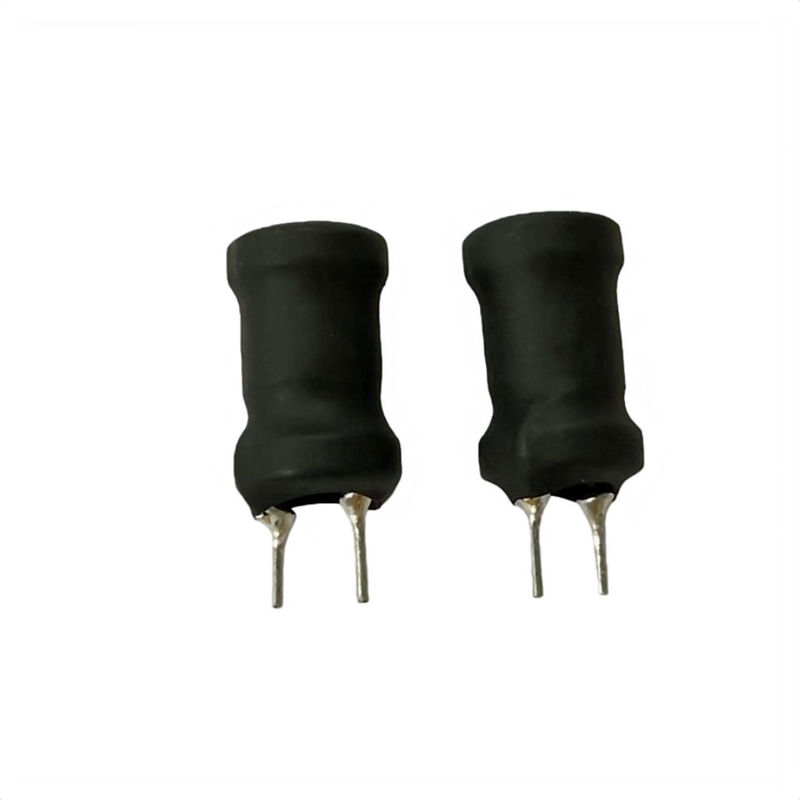

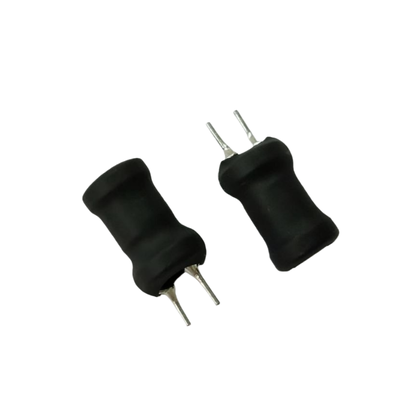

DR1016-15uH is a vertical through-hole bobbin power inductor with standard 10mm×16mm dimension. It adopts pure enameled copper wire wound on flame-retardant plastic bobbin, fully coated with black insulating epoxy for complete protection. As a cost-effective unshielded power inductor, it delivers stable 15uH inductance and consistent electrical performance after 100% full inspection, widely customized and mass-produced for various power circuit projects.

2. Core Features & Functions

Low DCR pure copper winding design, cutting conductive loss and heat generation during operation.
High saturation current capacity, no sharp inductance drop under heavy transient load.
Stable inductance tolerance ±10%, low magnetic leakage and EMI interference.
Wide working temperature range from -20℃ to 125℃, resistant to high-temperature harsh working environment.
Rigid vertical two-pin through-hole structure, easy PCB soldering with strong mechanical stability.
Flame-retardant plastic skeleton and full epoxy encapsulation, anti-short circuit, long service lifespan.
Flexible customization: adjustable inductance, wire diameter, pin length and pin spacing to match customer PCB designs.

3. Application Scenarios

This 10*16 15uH through-hole bobbin inductor is specially designed for switching mode power supply circuits, widely applied to:

AC/DC power adapters & battery chargers
LED lighting constant current drivers
DC-DC boost & step-down voltage modules
Power filter circuits for household electronics
Small industrial control power supplies
Consumer electronic power boards
