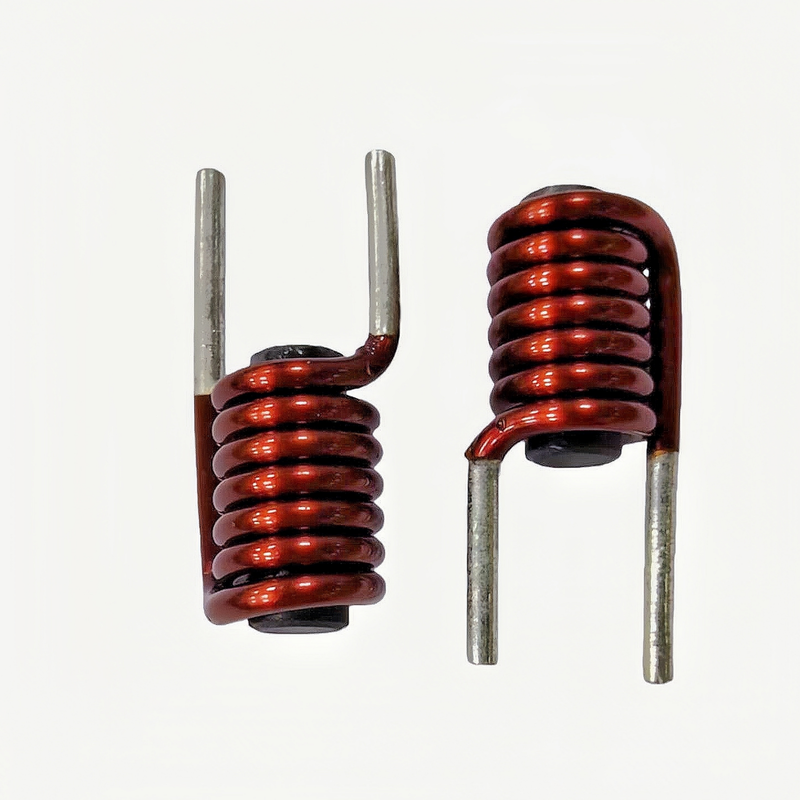

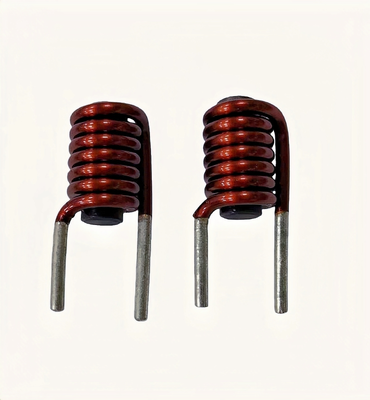

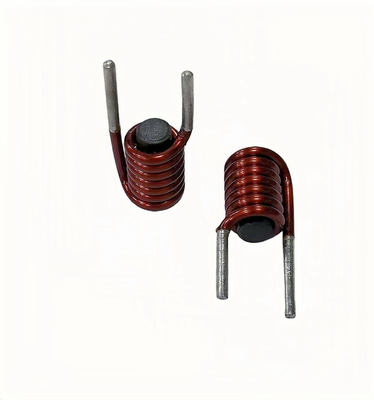

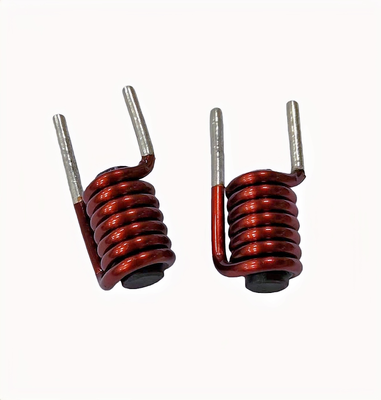

Magnetic Rod Inductor 2.3720*6.5 T Horizontal Plug-in R Rod Inductor Power Filter Magnetic Rod Coil Choke Coil

Brand Name:	ZXY
Model Number:	2.3720*6.5 T
MOQ:	negotiable
Price:	negotiable
Packaging Details:	carton
Payment Terms:	L/C

Detail Information

Product Description

Detail Information

Certification:

IS01006/ CE

Material:

Ferrite

Winding Material:

Copper Wire

Pin Material:

Tinned Pure Copper Pin

Mounting Type:

Horizontal Through-hole Plug-in Mounting

Main Function:

EMI Filtering

Application Type:

Power Supply

Supply Ability:

50000

Product Description

Magnetic Rod Inductor 2.3*7*20*6.5 T Horizontal Plug-in R Rod Inductor Power Filter Magnetic Rod Coil Choke Coil

1.Product Brief Introduction

The 2.3*7*20*6.5T magnetic rod inductor is a high-performance horizontal plug-in ferrite rod inductor designed for medium and low-power switching power supply systems. It adopts high-quality high-permeability ferrite magnetic rod and standard 6.5-turn uniform winding process with pure enameled copper wire. Featuring stable inductance value, low internal resistance and strong anti-saturation capability, this inductor can effectively filter medium and low-frequency current ripples and eliminate electromagnetic interference in circuits. With compact size, excellent thermal stability and high structural consistency, it is a cost-effective universal power filter component, widely used in various civilian and industrial small-power electronic equipment.

2.Product Features

1. Low Magnetic Loss & High Stability: Adopts high-quality ferrite core with low hysteresis loss, ensuring stable inductance output and no signal distortion during long-term operation.

2. Strong Anti-saturation Performance: Open magnetic circuit rod core structure provides excellent current saturation resistance, maintaining stable performance under high current surge and heavy load conditions.

3. Low DC Resistance & Low Heat Generation: Thickened pure copper wire winding reduces internal resistance, minimizes power loss and working temperature rise, improving equipment power efficiency.

3.Application Scenarios

1. Power Adapter & Charger: Used for filtering and noise reduction in various small and medium-power power adapters and mobile device chargers.

2. LED Lighting Driver: Applied to LED constant current drive power supply to suppress current ripple and prevent light flicker.

3. Smart Home Appliances: Suitable for control boards of air conditioners, refrigerators, humidifiers, fans and other small household appliances.

4. Communication Network Equipment: Used for power supply filtering of routers, optical modems, set-top boxes and monitoring equipment.
