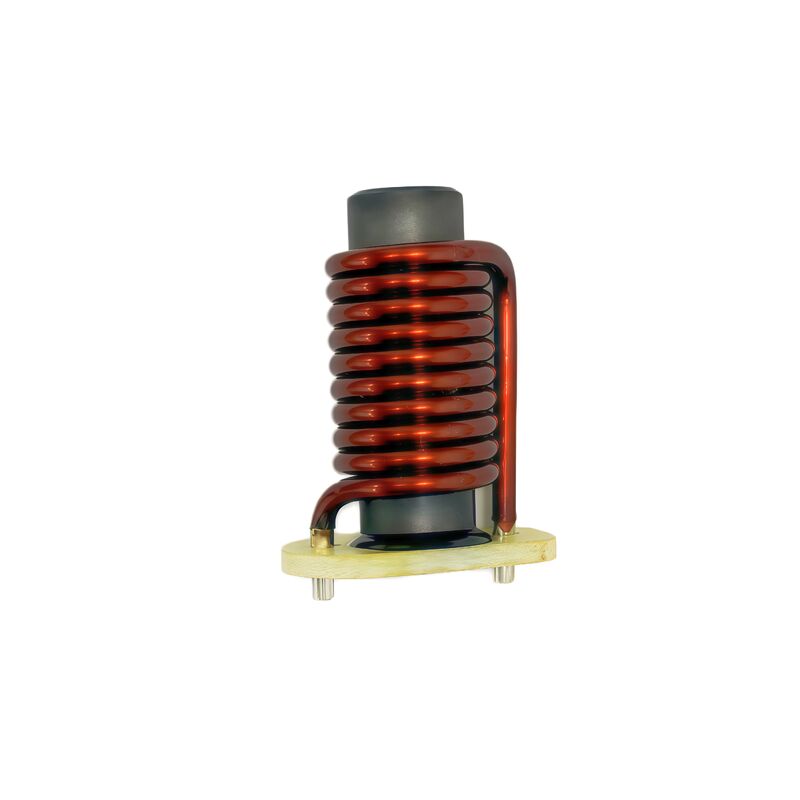

Magnetic Rod Inductor Rod shaped Choke Coil for Switching Power Supply

1.Product Description

Engineered for high-frequency switch-mode power supplies (SMPS), this premium Magnetic Rod Inductor (Rod-shaped Choke Coil) features high-purity copper windings on an advanced ferrite magnetic core. With its open magnetic circuit, it delivers exceptional current-handling capability and high resistance to magnetic saturation. Ideal for switching power supply PCB layouts, it acts as a critical low-pass filter to suppress EMI noise, smooth current ripples, and protect downstream sensitive electronics in automotive, smart furniture, and industrial DIY projects.

The open-magnetic circuit design and high saturation resistance of the Ferrite Magnetic Rod Inductor make it an indispensable component for transient filtering and ripple suppression in modern electronics. Below are the most common practical applications:

1. Automotive Electronic Modules (Car Chargers & BCMs)

• The Application: Integrated into DC-DC Buck-Boost converter circuit boards for high-power USB fast-charging car docks and Body Control Modules (BCMs).

• The Role: The 12V/24V power rail from a car battery is notoriously noisy due to alternator whine and ignition spikes. Placed at the power input stage, this rod-shaped choke coil works as a heavy-duty "buffer" to block incoming voltage surges and high-frequency EMI, ensuring it won't interfere with the vehicle's sensitive AM/FM radio or ADAS radar systems.

2. Audio Amplifiers & Communication Hardware

• The Application: Embedded in the LC output filter networks of Class-D audio amplifiers and wireless IoT gateway power rails.

• The Role: Class-D amplifiers use high-frequency PWM switching to drive speakers. A rod choke effectively strips away the high-frequency switching carrier signal before it reaches the speaker terminal, leaving only pure, high-fidelity audio signals and eliminating background static hiss.

3. Smart Home & Qi Wireless Charging Stations

• The Application: Placed on the main power entry board of multi-device wireless charging pads and smart furniture integrations.

• The Role: It prevents the high-frequency magnetic field generated by the wireless charging transmitter coils from bleeding back into the main AC/DC grid power supply lines, keeping the entire system thermally stable and compliant with global FCC/CE electromagnetic compatibility standards.

2.Performance Characteristics
