Product Description

T9×5×3 Small Magnetic Ring Inductor

High permeability iron silicon aluminum magnetic core inductor designed for DC-DC converters and switching power supplies. This compact component (9mm outer diameter, 5mm inner diameter, 3mm thickness) delivers exceptional inductance performance with low core loss, making it ideal for high-frequency, high-current applications in demanding environments.

Key Advantages

High Frequency Efficiency & Low Loss: Iron silicon aluminum cores with distributed air gaps minimize core losses at switching frequencies from tens to hundreds of kHz, reducing temperature rise and improving conversion efficiency.
High Saturation Magnetic Density: Superior saturation flux density (>1.0T) maintains inductance under large DC bias currents, preventing magnetic saturation in Buck and Boost DC-DC circuits.
Excellent Temperature Stability: Stable permeability across temperature variations ensures predictable performance and long-term reliability in varying environmental conditions.
Superior EMI Performance: Soft saturation characteristics and high electrical resistivity effectively suppress high-frequency eddy currents and switch noise.
Robust Fully Shielded Design: Toroidal structure provides closed magnetic circuit with no flux leakage, preventing interference with sensitive components.
Compact & Cost-Effective: Small T9×5×3 footprint delivers superior electrical performance in space-constrained applications.

Performance Characteristics

Category	Characteristic	Description / Value	Benefit
Core Material	Composition	Iron Silicon Aluminum (FeSiAl / Sendust) Powder Core	Excellent balance of high saturation flux, low core loss, and good temperature stability
Core Material	Effective Permeability (μe)	Typically 26μ, 60μ, 75μ, 90μ, 125μ	Provides range of inductance options for different circuit requirements
Electrical Performance	High Saturation Flux Density (Bsat)	> 1.0 Tesla (typically ~1.05T)	High resistance to DC bias, prevents core saturation under high current
Electrical Performance	Low Core Loss	Excellent high-frequency loss characteristics	Minimizes energy loss and temperature rise at switching frequencies
Physical & Reliability	Fully Shielded Structure	Closed-loop toroidal magnetic path	Virtually no magnetic flux leakage, prevents interference
Physical & Reliability	High Curie Temperature	> 500°C	Maintains magnetic properties beyond normal operating temperatures
Application Advantages	Operating Frequency Range	50 kHz to > 1 MHz	Suitable for modern high-frequency switching power supplies
Application Advantages	Temperature Stability	-55°C to +125°C+	Consistent performance under varying ambient conditions

Product Images

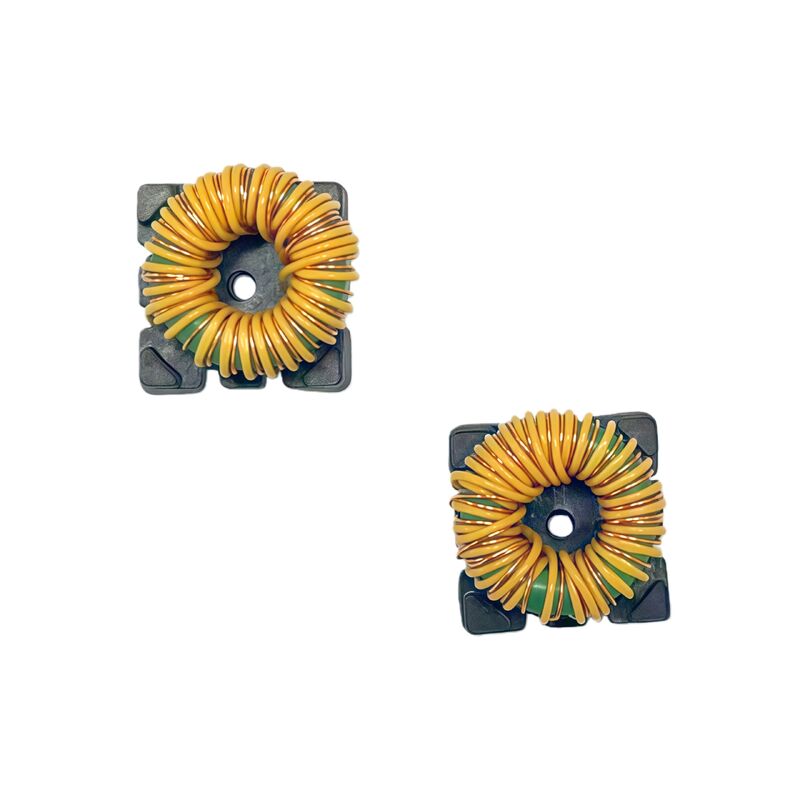

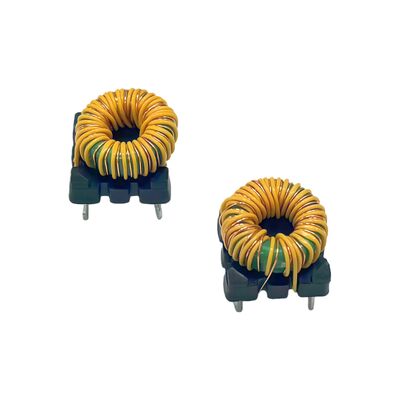

T9×5×3 magnetic ring inductor close-up view
