Power SMD Chip Inductor Common Mode Choke Inductor with High-Frequency Performance High Current Handling and Effective EMI Suppression for Communication Equipment

Brand Name: ZXY
Model Number: ZXY-122
MOQ: Negotiable
Price: Negotiable
Packaging Details: Carton
Detail Information
Product Description
Detail Information
Place of Origin:
Shenzhen Guangdong
Certification:
RoHS、ISO9001、CE
Highlight:

High-Frequency Performance Power SMD Chip Inductor

,

High Current Handling Common Mode Choke Inductor

,

Effective EMI Suppression Communication Equipment Inductor

Product Description
Power SMD Chip Common Mode Choke Inductor
Essential EMI suppression components designed for modern communication equipment. These compact surface-mount devices effectively attenuate common-mode noise while allowing differential signals to pass through unimpeded, ensuring signal integrity and EMC compliance in high-frequency applications.
Key Features
  • High Performance Noise Suppression: Efficiently suppresses electromagnetic interference (EMI) and radio frequency interference (RFI) while maintaining signal integrity for differential signals
  • High Frequency & Power Density: Advanced magnetic core materials maintain high impedance characteristics up to GHz frequencies with high rated current capacity
  • High Reliability & Stability: Excellent temperature stability with low DC resistance (DCR) ensures consistent performance across wide operating ranges
  • Miniature Integrated Design: Standard SMD surface mount packaging (0402, 0603, 0805) supports high-density PCB layouts for equipment miniaturization
  • Application-Optimized Performance: Specifically engineered for communication equipment including 5G base stations, optical modules, routing switches, and high-speed data ports
Performance Characteristics
Characteristic Description & Benefit
High-Frequency Performance Excellent impedance characteristics in MHz to GHz range, crucial for suppressing noise in high-speed data lines and switching power supplies
High Current Handling Low DC resistance and optimized core materials handle substantial common-mode currents without saturation
Effective EMI Suppression High common-mode impedance attenuates electromagnetic interference, helping meet EMC/EMI regulatory standards
Compact SMD Form Factor Miniature standard chip sizes (0402, 0603, 0805, 1206) enable high-density PCB layouts
Signal Integrity Preservation Low differential-mode insertion loss allows desired signals to pass through with minimal distortion
High Reliability & Stability Excellent temperature stability and robust construction for consistent performance under mechanical stress
Wide Operating Temperature Rated for -40°C to +125°C, ensuring reliable operation in various environmental conditions
Low Leakage Inductance Optimized winding design minimizes parasitic leakage inductance for high-speed and high-frequency circuits
Product Images

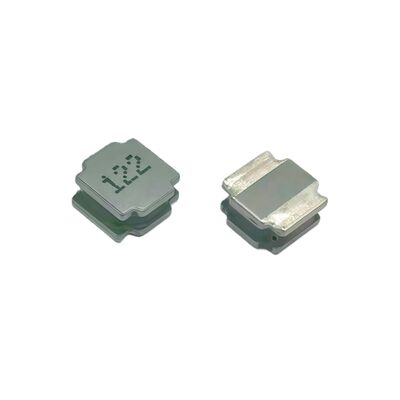

Power SMD Chip Common Mode Choke Inductor close-up view showing component details

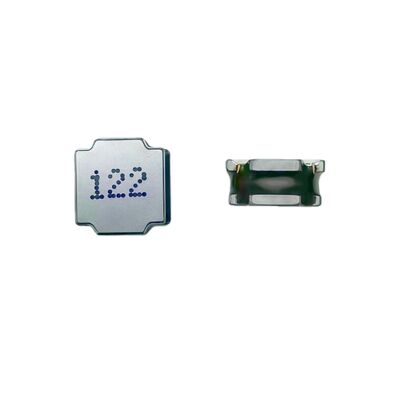

SMD inductor mounted on PCB board demonstrating compact size
