6R8 Surface Mount Inductor 6.8 μH Inductance 6.5A Rated Current SMD Miniature Molded Magnetic Shielded

Brand Name:	ZXY
Model Number:	ZXY-6R8
MOQ:	Negotiable
Price:	Negotiable
Packaging Details:	Carton

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen Guangdong

Certification:

RoHS、ISO9001、CE

Highlight:

6.8 μH Inductance Surface Mount Inductor

6.5A Rated Current SMD Inductor

Magnetic Shielded Molded Inductor

Product Description

6R8 Surface Mount Inductor 6.5A SMD Miniature Molded Inductors

The 6R8 surface mount inductor (6.8 μH inductance, 6.5A rated current) is manufactured using advanced micro molding technology. Featuring a magnetic shielding structure, it effectively suppresses electromagnetic interference and minimizes magnetic field leakage. The compact SMD package design is ideal for high-density circuit board applications, delivering efficient and stable energy storage and filtering performance in DC-DC converters, power modules, and high-frequency filtering circuits.

Key Features

High Current Capability: Rated current up to 6.5A, suitable for power conversion circuits handling high currents
Magnetic Shielding: Molded magnetic materials effectively contain magnetic fields, reducing electromagnetic interference to surrounding components
Compact Design: SMD component with miniature size meets high-density PCB layout requirements in modern electronic devices
High Reliability: Compression molding provides sturdy construction with excellent mechanical strength, heat resistance, and moisture resistance
Superior Electrical Performance: Low DC resistance reduces power loss and heat generation while maintaining specified 6.8 μH inductance

Performance Characteristics

Feature Category	Performance Characteristic	Description / Benefit
Electrical	Inductance Value	6.8 uH (marked as "6R8"). Provides precise energy storage for filtering and power conversion.
Electrical	Rated Current (Isat)	6.5 A. High current handling capability, suitable for power-intensive applications.
Electrical	Shielded Construction	Molded magnetic shield minimizes electromagnetic interference (EMI) and prevents coupling with nearby components.
Physical & Mechanical	Miniature SMD Package	Compact surface-mount design saves PCB space and enables high-density circuit board assembly.
Physical & Mechanical	Robust Molded Body	Offers excellent mechanical strength, moisture resistance, and durability for reliable operation.
Physical & Mechanical	Automation-Compatible	Standard tape and reel packaging suitable for high-speed automated pick-and-place manufacturing.
Thermal & Reliability	Thermal Stability	Molded material and construction ensure stable performance across a wide operating temperature range.
Thermal & Reliability	Low Power Loss	Typically features a low DC resistance (DCR), reducing conduction losses and heat generation.
Application Suitability	Ideal For	DC-DC converters (especially buck/boost), power modules, and noise filtering circuits in demanding environments.

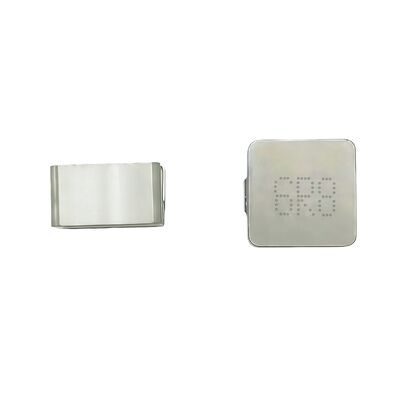

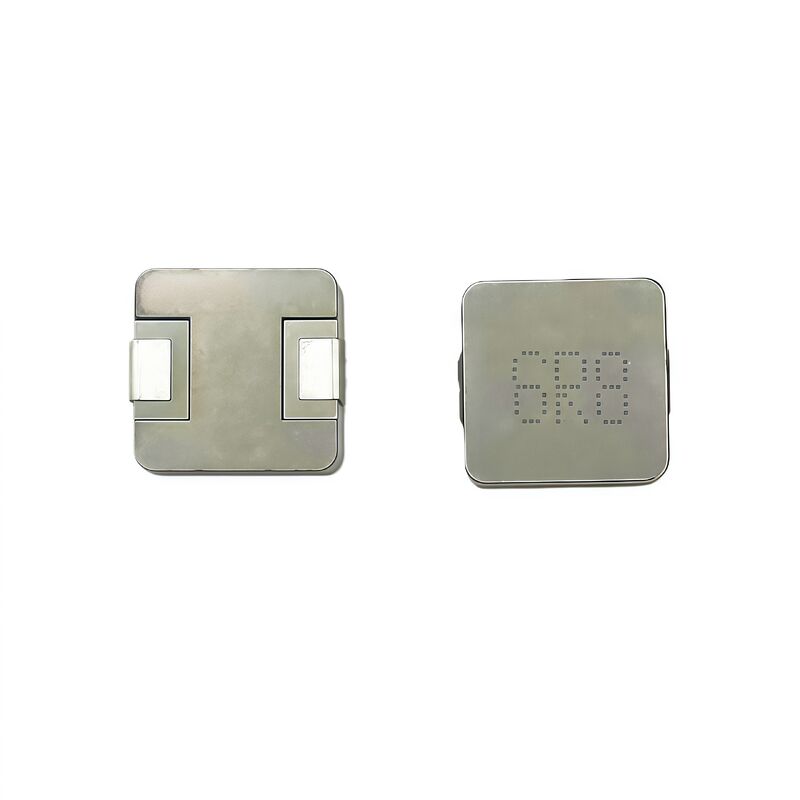

Product Images
