48 Pin Ethernet Lan Transformer Mangetincs Lan Transformer
  • name
  • name

48 Pin Ethernet Lan Transformer Mangetincs Lan Transformer

Brand Name: ED8
Model Number: H1102NL
MOQ: Negotiable
Price: Negotiable
Packaging Details: 1000pieces / Carton size:380mm*325mm*345mm
Payment Terms: T/T paypal xtransfer
Detail Information
Product Description
Detail Information
Place of Origin:
China,shenzhen city.
Certification:
RoHS,ISO9001-2001
Usage:
Electronic
Speed:
100 Base-TX Or Customized
Common Mode Rejection:
-33dB Minimum @1MHz-100MHz
Hi-pot:
1500Vrms
Pin Number:
48
Contact Resistance:
30 MΩmax
Supply Ability:
1000K-pcs/month
Highlight:

48 Pin Ethernet Lan Transformer

,

Ethernet Board Transformers

,

100 Base-TX Ethernet Lan Transformer

Product Description

Lan Network Transformer Factory Price 100 Base-T 16 Pin Modules Single Port SMD PoE+



product description:

The products are mainly used in: high-performance digital switches; SDH/ATM transmission equipment; ISDN, ADSL, VDSL, POE power receiving equipment integrated service digital equipment; FILT optical fiber loop equipment; Ethernet switches, etc.
The data pump is a device that is available on consumer-grade PCI network cards. The data pump is also called a network transformer or a network isolation transformer.
It has two main functions on a network card. One is to transmit data. It couples the differential signal sent by the PHY with differential mode.
The coil is coupled and filtered to enhance the signal, and is coupled to the other end of the connection cable with different levels through the conversion of the electromagnetic field; a
It is to isolate the different levels between different network devices connected by the network cable to prevent the transmission of different voltages through the network cable from damaging the device. In addition to this
In addition, the data pump can also play a certain lightning protection role for the equipment.

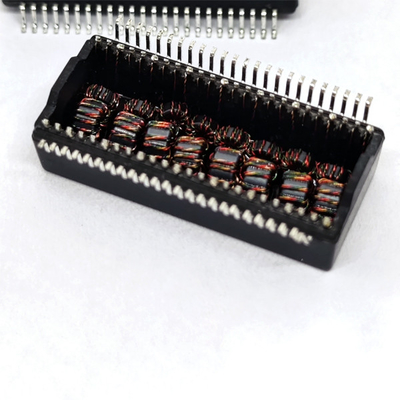

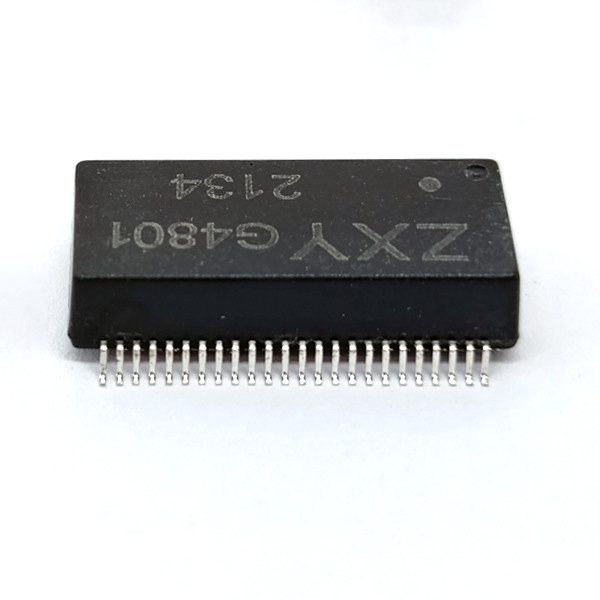

48 Pin Ethernet Lan Transformer Mangetincs Lan Transformer 048 Pin Ethernet Lan Transformer Mangetincs Lan Transformer 1

48 Pin Ethernet Lan Transformer Mangetincs Lan Transformer 248 Pin Ethernet Lan Transformer Mangetincs Lan Transformer 3

Electrical Specification @25℃

Inductance OCL:350uH Min @ 100KHz 0.1V 8mA DC BIAS

Leakage Inductance:0.50uH Max @ 100KHz 0.1V

Interwinding Capacitance:28pF Max @ 100KHz 0.1V

DC Resistance:1.22 Max (16-14,11-9)

Turn Ratio:1CT:1CT(TX)/1CT:1CT(RX)±3%

Polarity:1-16,6-11 In-Phase

Insertion Loss:0.5-100MHz -1.1dB Max

Return Loss:

0.5-30 MHz -18dB Min

30.1-60MHz -18+20log(f/30) dB Min

60.1-80MHz -12dB Min

Cross Talk:

0.5-40MHz -35dB Min

40.1-100MHz -33+20*log(f/50) dB Min

CMRR:0.5-100MHz -30dB Min

Isolation HI-POT:1500VAC 1mA 1S

Operating Temperature:0℃ to 70℃





48 Pin Ethernet Lan Transformer Mangetincs Lan Transformer 4



Tags:

Ethernet Lan Transformer 1000 BASE-T

1000base t transformer

16 PINS Ethernet Lan Transformer
