Lan Transformer
>
Single Port SMD PoE+ Lan Isolation Transformer 100 Base T 16 Pin Modules
All Category

Audio Transformer

Permalloy Audio Transformer

Audio Isolator

Power Transformer

High Frequency Transformer

Inductor

Wireless Charging Coil

EMI Filter

Air Coil

Line Filter

Common Mode Inductor

Current Transformer

Toroidal Transformer

Low Frequency Transformer

Lan Transformer

Chip Inductor
Contact Us
Ms. Chen
rhea@zxycoil.com
+8613554723725
Contact Now

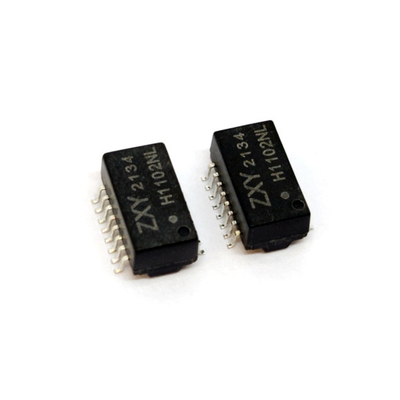

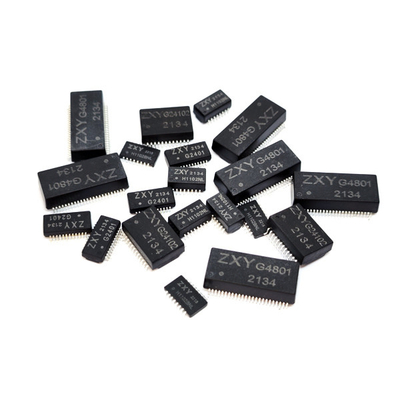

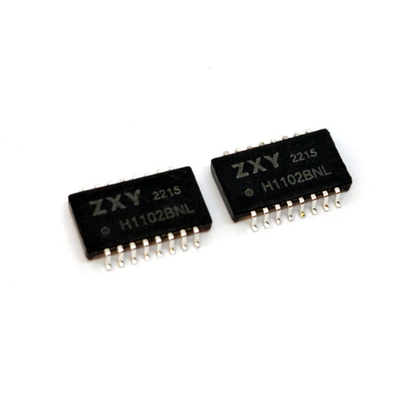

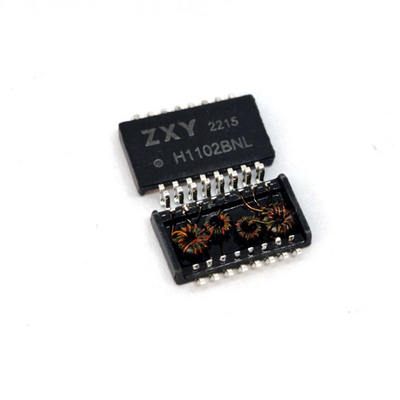

Single Port SMD PoE+ Lan Isolation Transformer 100 Base T 16 Pin Modules
  • name
  • name
  • name
  • name

Single Port SMD PoE+ Lan Isolation Transformer 100 Base T 16 Pin Modules

Brand Name: ED8
Model Number: H1102NL
MOQ: Negotiable
Price: Negotiable
Packaging Details: 1000pieces / Carton size:380mm*325mm*345mm
Payment Terms: T/T paypal xtransfer
Detail Information
Product Description
Detail Information
Place of Origin:
China,shenzhen city.
Certification:
RoHS,ISO9001-2001
Model Number:
H1102NL
Speed:
100 Base-TX
Power:
Customized
Application:
Ethernet(NoN PoE)
Polarity:
In-Phase
DC Resistance:
1.2Ω Max Or Customized
Supply Ability:
1000K-pcs/month
Highlight:

Single Port lan isolation transformer

,

100 Base T 16 Pin Modules

,

Ethernet lan isolation transformer

Product Description

Lan Network Transformer Factory Price 100 Base-T 16 Pin Modules Single Port SMD PoE+



product description:

Network transformers include T1/E1 isolation transformers; ISDN/ADSL interface transformers; VDSL high-pass/low-pass filter modules, interface transformers; T3/E3, SDH, 64KBPS interface transformers; 10/100BASE, 1000BASE-TX, 2.5GBASE, 5GBASE , 10GBASE network filter; RJ45 integrated transformer ICM; special transformers can also be designed according to customer needs.



Electrical Specification @25℃

Inductance OCL:350uH Min @ 100KHz 0.1V 8mA DC BIAS

Leakage Inductance:0.50uH Max @ 100KHz 0.1V

Interwinding Capacitance:28pF Max @ 100KHz 0.1V

DC Resistance:1.22 Max (16-14,11-9)

Turn Ratio:1CT:1CT(TX)/1CT:1CT(RX)±3%

Polarity:1-16,6-11 In-Phase

Insertion Loss:0.5-100MHz -1.1dB Max

Return Loss:

0.5-30 MHz -18dB Min

30.1-60MHz -18+20log(f/30) dB Min

60.1-80MHz -12dB Min

Cross Talk:

0.5-40MHz -35dB Min

40.1-100MHz -33+20*log(f/50) dB Min

CMRR:0.5-100MHz -30dB Min

Isolation HI-POT:1500VAC 1mA 1S

Operating Temperature:0℃ to 70℃

Single Port SMD PoE+ Lan Isolation Transformer 100 Base T 16 Pin Modules 0Single Port SMD PoE+ Lan Isolation Transformer 100 Base T 16 Pin Modules 1Single Port SMD PoE+ Lan Isolation Transformer 100 Base T 16 Pin Modules 2Single Port SMD PoE+ Lan Isolation Transformer 100 Base T 16 Pin Modules 3Single Port SMD PoE+ Lan Isolation Transformer 100 Base T 16 Pin Modules 4
