Lan Transformer
>
Ethernet Magnetic Smd Toroidal Lan Electric Trafo Transformers Integrated
All Category

Audio Transformer

Permalloy Audio Transformer

Audio Isolator

Power Transformer

High Frequency Transformer

Inductor

Wireless Charging Coil

EMI Filter

Air Coil

Line Filter

Common Mode Inductor

Current Transformer

Toroidal Transformer

Low Frequency Transformer

Lan Transformer

Chip Inductor
Contact Us
Ms. Chen
rhea@zxycoil.com
+8613554723725
Contact Now
Ethernet Magnetic Smd Toroidal Lan Electric Trafo Transformers Integrated
  • name
  • name

Ethernet Magnetic Smd Toroidal Lan Electric Trafo Transformers Integrated

Brand Name: ED8
Model Number: H1102NL
MOQ: Negotiable
Price: Negotiable
Packaging Details: 1000pieces / Carton size:380mm*325mm*345mm
Payment Terms: T/T paypal xtransfer
Detail Information
Product Description
Detail Information
Place of Origin:
China,shenzhen city.
Certification:
RoHS,ISO9001-2001
Usage:
Electronic
Speed:
10 / 100 BASE-T
Cross Talk:
-33dB Minimum @1MHz-100MHz
Hi-pot:
1500Vrms Or Customized
Number Of Pin:
48
Insulation Resistance:
500 MΩmin
Supply Ability:
1000K-pcs/month
Highlight:

Lan Electric Trafo Transformers

,

10 BASE-T lan magnetic transformer

,

Lan Electric Trafo Transformers ED8

Product Description

Network LAN Transformer SMD 10/100/1000 Base-T Magnetics



product description:

On the network communication motherboard, between the PHY chip and the RJ45 connector, there will be a small black square. This thing is called a network transformer. The book name is "Data Mercury". People often call it a network isolation transformer, LAN Transformers, LAN transformers, filters, etc.

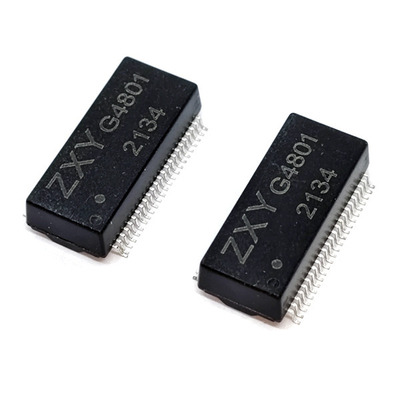

Ethernet Magnetic Smd Toroidal Lan Electric Trafo Transformers Integrated 0Ethernet Magnetic Smd Toroidal Lan Electric Trafo Transformers Integrated 1

Ethernet Magnetic Smd Toroidal Lan Electric Trafo Transformers Integrated 2Ethernet Magnetic Smd Toroidal Lan Electric Trafo Transformers Integrated 3

Electrical Specification @25℃

Inductance OCL:350uH Min @ 100KHz 0.1V 8mA DC BIAS

Leakage Inductance:0.50uH Max @ 100KHz 0.1V

Interwinding Capacitance:28pF Max @ 100KHz 0.1V

DC Resistance:1.22 Max (16-14,11-9)

Turn Ratio:1CT:1CT(TX)/1CT:1CT(RX)±3%

Polarity:1-16,6-11 In-Phase

Insertion Loss:0.5-100MHz -1.1dB Max

Return Loss:

0.5-30 MHz -18dB Min

30.1-60MHz -18+20log(f/30) dB Min

60.1-80MHz -12dB Min

Cross Talk:

0.5-40MHz -35dB Min

40.1-100MHz -33+20*log(f/50) dB Min

CMRR:0.5-100MHz -30dB Min

Isolation HI-POT:1500VAC 1mA 1S

Operating Temperature:0℃ to 70℃





Ethernet Magnetic Smd Toroidal Lan Electric Trafo Transformers Integrated 4



Tags:

Ethernet Lan Transformer 1000 BASE-T

1000base t transformer

16 PINS Ethernet Lan Transformer
