EF25 Pulse High Frequency Transformer with Thickened Insulated Wire and Ferrite Core for Pure Copper Winding

Brand Name: ZXY
Model Number: EF25
MOQ: negotiable
Price: negotiable
Packaging Details: carton
Payment Terms: L/C,D/A,T/T
Detail Information
Product Description
Detail Information
Place of Origin:
China Guangdong
Certification:
RoHS、ISO9001、CE
Core Model:
Ferrite Core
Installation Type:
Vertical Mounting
Winding Material:
100% Pure Copper Enameled Wire
Power Range:
15W To 60W
Certification:
RoHS Compliant
Insulation Grade:
Class B High Temperature Insulation
Supply Ability:
50000
Highlight:

Thickened Insulated Wire Pulse High Frequency Transformer

,

Ferrite Core High Frequency Transformer

,

Pure Copper Winding EF25 Transformer

Product Description
EF25 Pulse High Frequency Transformer
EF25 Pulse High Frequency Transformer, Thickened Insulated Wire, Main Transformer for Inverter Welding Machine Power Supply
Product Introduction
The EF25 Pulse High Frequency Transformer is a compact, high-performance power conversion component specially designed for pulse switching power supply systems. Adopting high-quality ferrite core and precise pure copper winding technology, this transformer features stable high-frequency transmission, low magnetic leakage and consistent pulse output. It is widely applied in power adapters, battery chargers, LED drivers, industrial switching power supplies and small household electrical equipment, providing reliable voltage transformation and isolated power conversion for various high-frequency working scenarios.
Product Advantages
Equipped with high-permeability ferrite core material, the EF25 pulse transformer effectively reduces core loss and improves high-frequency conversion efficiency under long-term continuous operation. The full pure copper winding structure greatly lowers internal resistance, effectively suppressing heat generation and ensuring low temperature rise during high-frequency pulse working state. With professional insulating encapsulation and rigorous craftsmanship, the product achieves high insulation strength, strong voltage resistance and excellent anti-interference performance. Its standardized EF25 structure delivers stable size consistency and excellent compatibility, supporting mass production and fast assembly for customer products.
Core Selling Points
  • Excellent pulse transmission performance, stable output under high-frequency switching operation, no pulse distortion
  • 100% pure copper enameled wire winding, lower loss, higher efficiency and longer service life
  • Ultra-low magnetic leakage design, effectively improving power supply stability and reducing electromagnetic interference
  • High temperature resistance and high insulation grade, suitable for continuous and long-time working environments
  • Compact EF25 integrated structure, easy installation and perfect compatibility with various power supply PCBs
  • Strict 100% electrical testing before delivery, including inductance, withstand voltage and open-short circuit detection
  • ROHS compliant, environmentally friendly and fully compliant with international export standards
  • Supports OEM & ODM custom winding ratio, pin definition and parameter requirements

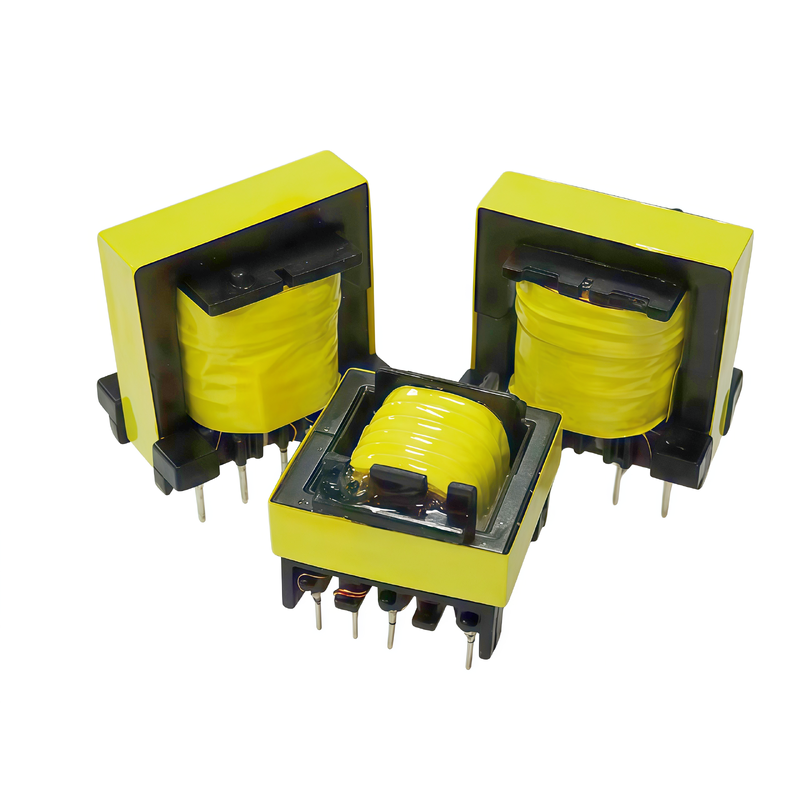

EF25 Pulse High Frequency Transformer product image EF25 Transformer technical specifications EF25 Transformer application diagram
