Efficient Energy Transfer Soft Feet 2+2 EI24 Low Frequency Transformer For Audio

Brand Name:	ZXY
Model Number:	ZXY-EI24
MOQ:	Negotiable
Price:	Negotiable
Packaging Details:	1000pieces / Carton size:380mm325mm345mm
Payment Terms:	T/T paypal xtransfer

Detail Information

Product Description

Detail Information

Place of Origin:

China,shenzhen city.

Certification:

RoHS,ISO9001-2001

Other Name:

EI24 Low Frequency Transformer

Usage:

Efficient Energy Transfer

Strong Point:

High Efficiency

Color Of Bobbin:

Customized

Winding Form:

Three Winding

Overall Structure:

Vertical

Supply Ability:

1000K-pcs/month

Highlight:

Audio Frequency Transformer EI24

high voltage pulse transformer

ISO Audio Frequency Transformer

Product Description

Efficient Energy Transfer Soft Feet 2+2 EI24 Low Frequency Transformer For Audio

1.Product Description:

EI24 Low Frequency Transformer is a low-frequency transformer designed based on the EI24 iron core, suitable for low-frequency applications ranging from 50Hz to 400Hz. Its characteristics include efficient energy transfer, low loss, and excellent magnetic properties, which can provide stable voltage conversion and electrical isolation. The compact design and durable structure make it easy to integrate into various devices, widely used in power adapters, industrial control systems, audio equipment, and renewable energy systems. This transformer is an ideal choice for low-frequency power transmission and signal processing due to its high efficiency, reliability, and economy.

2.Characteristic

Characteristics	How It Works
High Magnetic Permeability Core	The EI24 core is made of materials with high magnetic permeability, such as silicon steel. When an alternating current flows through the primary winding, it generates a magnetic field. The high magnetic permeability of the core allows this magnetic field to be concentrated and easily coupled to the secondary winding, facilitating efficient transfer of electrical energy.
Precise Voltage Transformation	Based on the principle of electromagnetic induction, the ratio of the number of turns in the primary winding (Np) to the number of turns in the secondary winding (Ns) determines the voltage transformation ratio. If the number of turns in the secondary winding is more than that in the primary winding (Ns>Np), it steps up the voltage; if Ns<Np, it steps down the voltage. The induced electromotive force (EMF) in the secondary winding is proportional to the rate of change of the magnetic flux, which is related to the current in the primary winding.
Low Magnetic Leakage	The EI-shaped core design provides a closed magnetic path, minimizing the leakage of the magnetic field outside the core. This ensures that most of the magnetic flux generated by the primary winding is linked with the secondary winding, improving the efficiency of the transformer and reducing energy losses due to magnetic leakage.
Good Electrical Insulation	The windings of the EI24 low frequency transformer are insulated from each other and from the core using high-quality insulating materials. This prevents electrical short circuits between the primary and secondary windings and between the windings and the core. When there is a voltage difference between the windings, the insulation materials withstand this potential difference, ensuring the safe and reliable operation of the transformer.
Stable Performance at Low Frequencies	It is designed to operate efficiently at low frequencies. The core material and winding design are optimized to handle the magnetic and electrical characteristics associated with low-frequency applications. At low frequencies, the magnetic hysteresis and eddy current losses are managed effectively, allowing the transformer to maintain stable voltage transformation and power transfer performance.
Compact Size and Space-saving	The EI24 structure offers a relatively compact form factor. This makes it suitable for applications where space is limited. In circuit designs, it can be easily integrated without taking up excessive space, and its compact size also helps in reducing the overall size and weight of the electrical equipment that incorporates it.

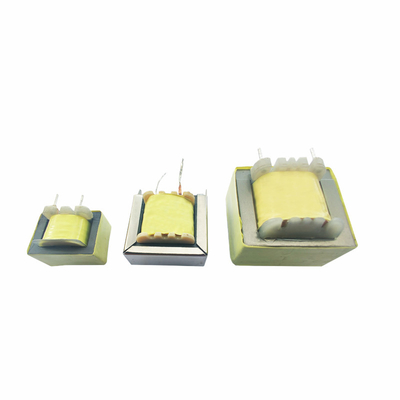

Efficient Energy Transfer Soft Feet 2+2 EI24 Low Frequency Transformer For Audio 0

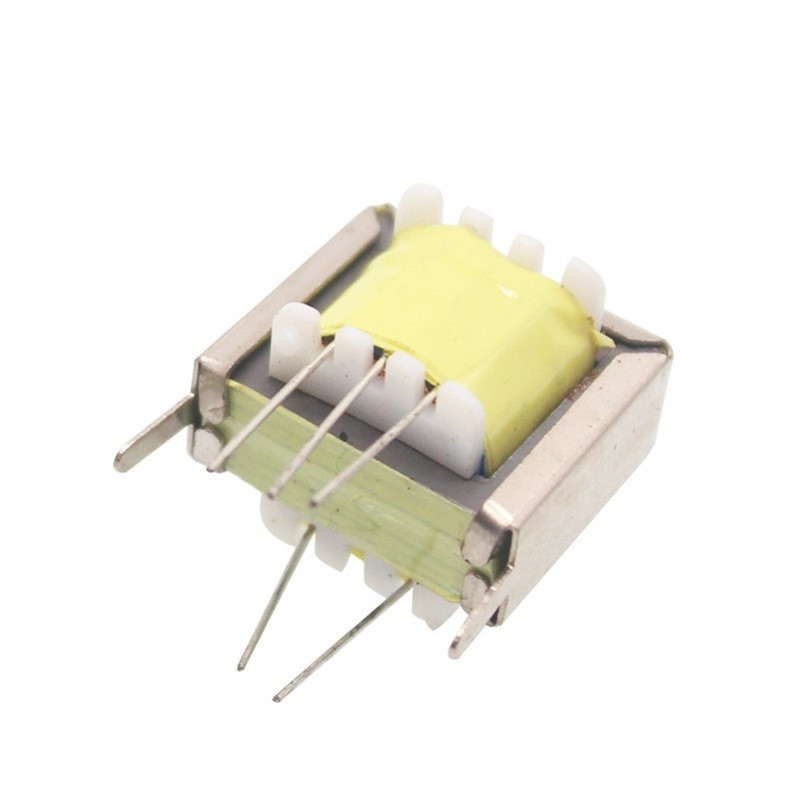

Efficient Energy Transfer Soft Feet 2+2 EI24 Low Frequency Transformer For Audio 1

Efficient Energy Transfer Soft Feet 2+2 EI24 Low Frequency Transformer For Audio 2

Efficient Energy Transfer Soft Feet 2+2 EI24 Low Frequency Transformer For Audio 3
