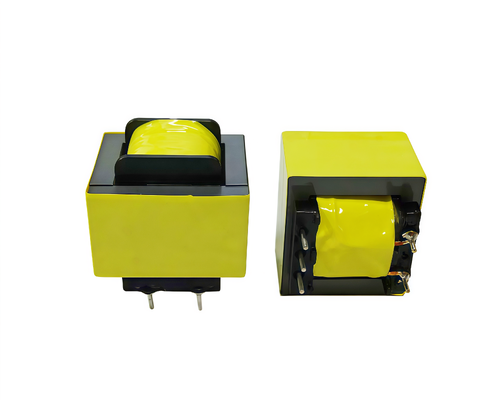

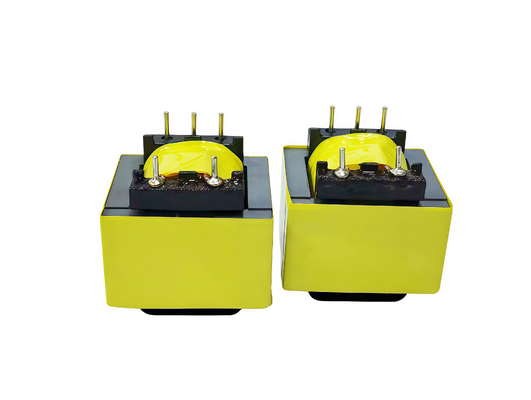

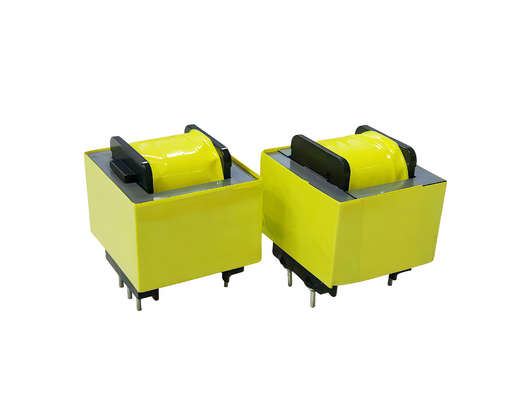

EI28 Low Frequency Transformer with Pure Copper Winding and 50Hz/60Hz Rated Frequency for Customizable Input/Output Voltage
  • name
  • name
  • name

EI28 Low Frequency Transformer with Pure Copper Winding and 50Hz/60Hz Rated Frequency for Customizable Input/Output Voltage

Brand Name: ZXY
Model Number: EI28
MOQ: negotiable
Price: negotiable
Packaging Details: carton
Payment Terms: L/C,D/A,T/T
Detail Information
Product Description
Detail Information
Place of Origin:
China Guangdong
Certification:
RoHS、ISO9001、CE
Core Material:
Cold Rolled Silicon Steel Sheet
Rated Operating Frequency:
50Hz / 60Hz
Insulation Coating:
Yellow Epoxy Dip Coating
Mounting Type:
PCB Vertical Pin Mount
Winding Material:
Enameled Copper Wire
Customizable Item:
Input Voltage, Output Voltage, Power Rating, Pin Layout
Insulation Grade:
Class B Insulation
Supply Ability:
50000
Highlight:

Customizable Input/Output Voltage Low Frequency Transformer

,

Pure Copper Winding Isolation Transformer

,

50Hz/60Hz Rated Frequency Power Supply Transformer

Product Description
Industrial Custom EI28 Low Frequency Transformer
The EI28 low frequency power transformer is a high-stability 50Hz/60Hz industrial isolation transformer specially designed for instrumentation and control system power supply. Adopting high-quality silicon steel sheet and pure copper winding, this transformer features low loss, low heat generation and high voltage resistance. It supports custom turns ratio, input and output voltage to meet diverse industrial power conversion demands.
Core Features
  • Stable Low-frequency Performance: Designed for 50/60Hz industrial mains frequency with extremely low magnetic loss and stable inductance output
  • High-precision Isolation Design: Excellent electrical isolation performance protects precision instrument circuits from interference
  • Pure Copper Winding Technology: Full copper enameled wire winding with low internal resistance and high power conversion efficiency
  • Premium Silicon Steel Core: High permeability silicon steel sheet minimizes eddy current loss
  • Strong Customization Compatibility: Support for custom input/output voltage, turns ratio, pin position and power parameters
  • Safe Insulation & Pressure Resistance: Multi-layer insulation structure with vacuum dipping process ensures high dielectric strength
  • Industrial Grade Durability: Solid lamination structure resists vibration and high-temperature environments
Application Scenarios
  • Industrial precision instrument power supply and monitoring equipment
  • Automation control system circuit isolation and voltage conversion
  • Smart meter, sensor and testing device power modules
  • Factory automation equipment and low-frequency power distribution systems
  • Medical auxiliary equipment and laboratory precision power units
  • Civil and industrial electrical equipment isolation voltage transformation
EI28 Transformer technical diagram showing internal components
EI28 Transformer mounted on PCB board
EI28 Transformer side view showing pin configuration
EI28 Transformer dimensional specifications
Manufacturing Excellence
Advanced manufacturing facility with automated equipment
Quality control inspection station
Precision winding machinery in operation
Final product testing and verification process
