Audio Transformer

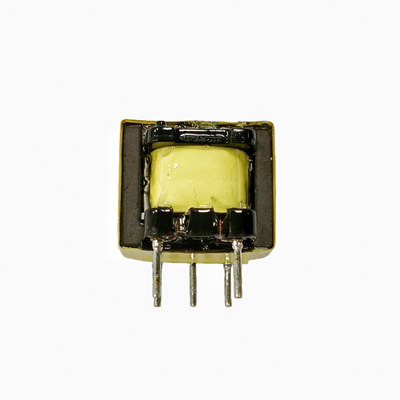

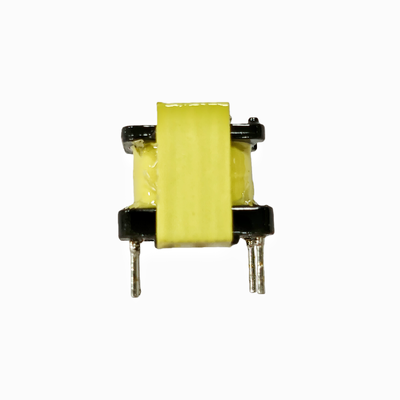

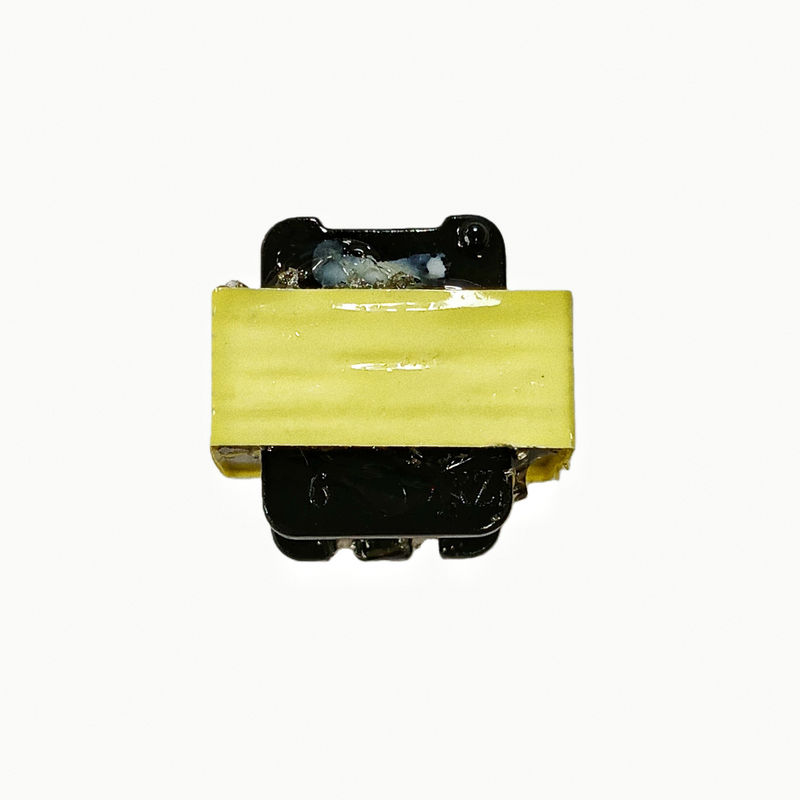

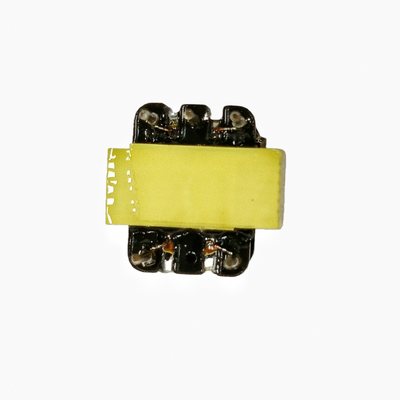

High Efficiency EI14 Vertical Low Frequency Transformer Silicon Steel Core Mini PCB Vertical Pin Type Transformer

All Category

Chip Inductor

Ms. Chen

rhea@zxycoil.com

+8613554723725

Contact Now

High Efficiency EI14 Vertical Low Frequency Transformer Silicon Steel Core Mini PCB Vertical Pin Type Transformer

Brand Name:	ZXY
Model Number:	EI14 Vertical
MOQ:	negotiable
Price:	negotiable
Packaging Details:	carton
Payment Terms:	L/C

Detail Information

Product Description

Detail Information

Place of Origin:

China Guangdong

Core Type:

EI Laminated Silicon Steel Core

Core Materia:

Z11 Cold Rolled Silicon Steel Sheet

Mounting Style:

Vertical PCB Through-hole Pin Type

Working Frequency:

50Hz / 60Hz Low Frequency

Rated Power Range:

0.5W – 15W, Customizable

Insulation Resistance:

≥100MΩ @500V DC

Supply Ability:

50000

Product Description

High Efficiency EI14 Vertical Low Frequency Transformer Silicon Steel Core Mini PCB Vertical Pin Type Transformer

1.Product Function Overview

EI14 vertical transformer is a low-frequency audio isolation transformer based on silicon steel core. Its core functions include audio impedance matching, ground loop noise elimination, electrical isolation between primary and secondary circuits, and low-frequency voltage conversion. It stabilizes audio signal transmission, filters clutter interference, and provides safe isolated power supply for small voice communication equipment.

2. Application Fields

Audio & communication devices: landline telephones, building intercoms, doorbell voice modules, mini Hi-Fi speakers, audio mixer signal isolation boards
Small household appliances: humidifiers, massage devices, mini fans, aromatherapy machine control power boards
Security equipment: access control voice intercom modules, simple alarm detectors
Small industrial instruments: low-frequency signal isolation panels, portable medical mini equipment

High Efficiency EI14 Vertical Low Frequency Transformer Silicon Steel Core Mini PCB Vertical Pin Type Transformer
