ZXY-3012 Audio Transformer with Permalloy Core 10K:600 Impedance Matching and 20Hz-20KHz Frequency Response for Professional Audio
  • name
  • name
  • name
  • name

ZXY-3012 Audio Transformer with Permalloy Core 10K:600 Impedance Matching and 20Hz-20KHz Frequency Response for Professional Audio

Brand Name: ZXY
Model Number: ZXY-3012
MOQ: negotiable
Price: negotiable
Packaging Details: carton
Payment Terms: L/C
Detail Information
Product Description
Detail Information
Place of Origin:
China Guangdong
Material:
Permalloy
Model:
ZXY-3012
Electrical Performance:
20Hz~20KHz
Temperature Range:
-40℃ ~ 125℃
Electrical Index:
20Hz-20KHz
Function:
Audio Impedance Matching
Product Description
ZXY-3012 Audio Transformers Permalloy Core 10K:600 Impedance Matching Audio Isolation Transformer for Recording Mixer
Product Overview
ZXY-3012 Audio Transformers feature high-performance permalloy magnetic cores and high-purity oxygen-free copper wire, delivering ultra-low audio distortion and flat 20Hz-20KHz full-band frequency response. Built with closed magnetic circuit structure, they support AC 500V signal isolation with excellent temperature stability and strong anti-interference capability to eliminate ground loop hum and signal noise.
  • Standard 10K:600 impedance matching ratio for professional audio applications
  • Fully customizable parameters including pin count, wire diameter, winding turns, and installation methods
  • 100% factory electrical inspection with tight ±10% parameter tolerance
  • Stable batch consistency and continuous operation from -40℃ to 125℃
  • Vertical, horizontal, DIP through-hole, and bracket type installation options
Applications
ZXY-3012 Audio Transformers are widely used in professional audio equipment including studio recording devices, mixing consoles, broadcast power amplifiers, microphone impedance matching modules, Hi-Fi high-fidelity audio gear, conference audio systems, and audio isolation/noise reduction devices.
This series effectively solves common audio transmission issues such as impedance mismatch, electromagnetic interference, and current noise, making them ideal for broadcast media, live recording, audiophile systems, conference audio engineering, and sound processing applications.
Product Images

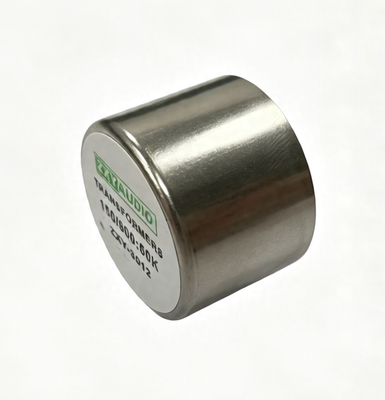

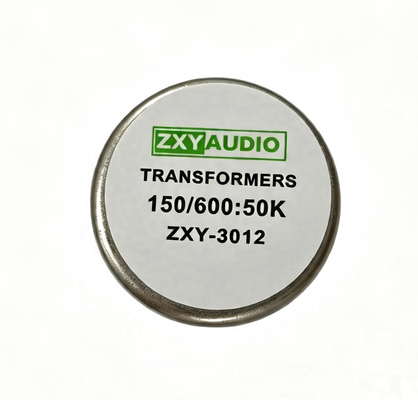

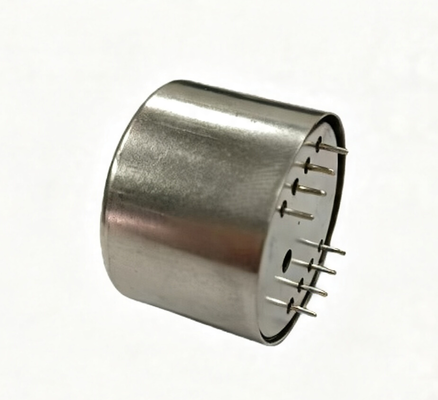

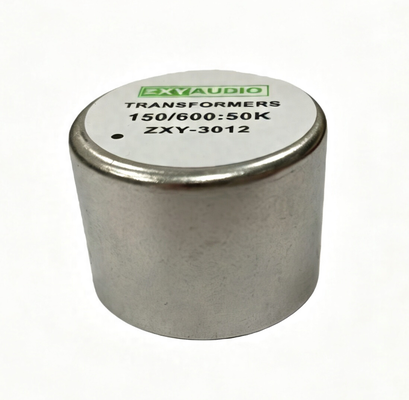

ZXY-3012 Audio Transformer front view showing component details ZXY-3012 Audio Transformer side view with dimensional reference ZXY-3012 Audio Transformer installation configuration
