ZXY1527 Audio Transformer with High Magnetic Permeability Permalloy for Non-Destructive Sound Transmission and 1500Vrms Isolation

Brand Name: ZXY
Model Number: ZXY1527
MOQ: Negotiable
Price: Negotiable
Packaging Details: Carton
Detail Information
Product Description
Detail Information
Place of Origin:
Shenzhen Guangdong
Certification:
RoHS、ISO9001、CE
Highlight:

High Magnetic Permeability Permalloy Audio Transformer

,

Non-Destructive Sound Transmission Audio Transformer

,

1500Vrms Isolation Permalloy Transformer

Product Description
ZXY1527 Audio Transformer
High Magnetic Permeability Permalloy Non Destructive Sound Transmission
Product Overview
The ZXY1527 Audio Transformer utilizes a high magnetic permeability Permalloy core to deliver exceptionally low signal loss and distortion, ensuring non-destructive sound transmission across a wide frequency spectrum while effectively eliminating electromagnetic interference for pristine audio reproduction in professional and high-fidelity applications.
Key Features
  • Signal Isolation and Noise Purification: Functions as an excellent audio isolator with Permalloy magnetic core and high insulation design, achieving electrical isolation up to 1500Vrms. Fundamentally cuts ground loops and strongly suppresses common mode noise and RF interference.
  • Precise Impedance Matching and Power Transmission: Offers multiple standard impedance ratio options (600Ω:600Ω, 10kΩ:10kΩ) to build efficient energy transmission bridges between devices with different impedance characteristics.
  • Signal Coupling and Format Conversion: Features safe isolated DC capability for lossless audio signal coupling while blocking dangerous DC voltages. Converts between balanced and unbalanced signals for enhanced system compatibility.
Performance Specifications
Feature Specification / Description
Core Material High-permeability Permalloy (Ni-Fe alloy) core for minimal hysteresis loss and high magnetic efficiency
Frequency Response 20 Hz - 50 kHz (±0.5 dB), ensuring wide-band, flat audio signal transmission
Low Distortion THD < 0.01% at rated level, preserving signal integrity and dynamic range
High Noise Rejection Common-mode noise rejection > 90 dB, effective in suppressing ground loops and EMI/RFI interference
Excellent Linearity High initial permeability and low coercivity provide linear magnetic response across the operating range
Impedance Matching Available in multiple standard impedance ratios (e.g., 600Ω:600Ω, 10kΩ:10kΩ) for flexible system integration
Low Insertion Loss Typically < 0.3 dB at 1 kHz, ensuring minimal signal attenuation
High Isolation Voltage ≥ 1500 Vrms (primary-secondary), enhancing safety and signal separation
Operating Temperature -40°C to +85°C, suitable for stable performance in varied environmental conditions
Applications Professional audio consoles, broadcast equipment, studio gear, instrument amplifiers, and high-end Hi-Fi systems

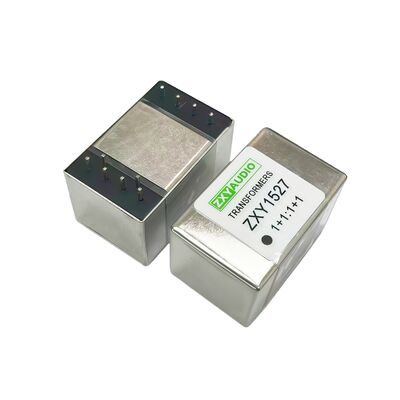

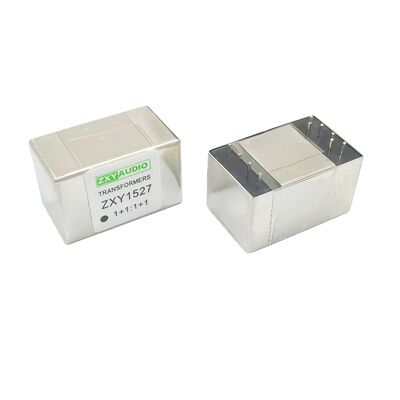

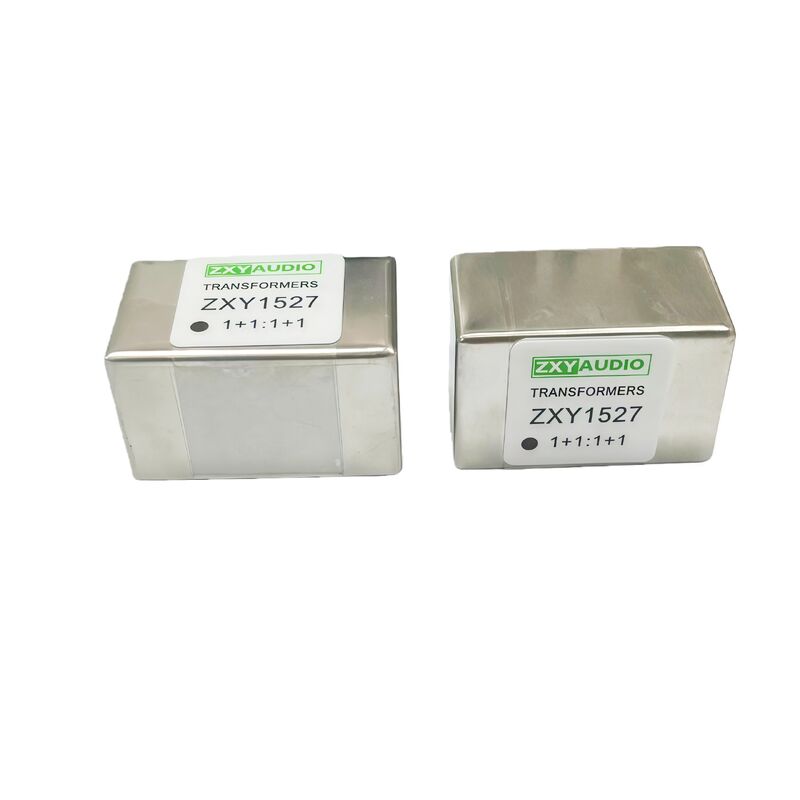

Product Images
ZXY1527 Audio Transformer with High Magnetic Permeability Permalloy for Non-Destructive Sound Transmission and 1500Vrms Isolation 0 ZXY1527 Audio Transformer with High Magnetic Permeability Permalloy for Non-Destructive Sound Transmission and 1500Vrms Isolation 1 ZXY1527 Audio Transformer with High Magnetic Permeability Permalloy for Non-Destructive Sound Transmission and 1500Vrms Isolation 2
