Efficient Noise Suppression 150/600:10K Permalloy Audio Transformer for Broadcast Communication Systems

Brand Name:	ZXY
Model Number:	ZXY-150/600:10K
MOQ:	Negotiable
Price:	Negotiable
Packaging Details:	Carton

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen Guangdong

Certification:

RoHS、ISO9001、CE

Highlight:

Efficient Noise Suppression Audio Transformer

150/600:10K Impedance Ratio Permalloy Audio Transformer

High-Permeability Permalloy Core Broadcast Communication Transformer

Product Description

Efficient Noise Suppression 150/600:10K Permalloy Audio Transformer

The latest 150/600:10K Permalloy Audio Transformer from ZXY is a high-performance isolated conversion device designed specifically for professional audio fields such as broadcast communication systems. Its core adopts a high permeability Permalloy magnetic core, combined with a precise impedance transformation ratio of 150 Ω/600 Ω to 10K Ω, achieving excellent signal transmission and impedance matching characteristics.

Key Features

Efficient noise suppression, pure and reliable signal: Permalloy magnetic cores and fully shielded structures effectively suppress common mode noise, ground loop interference, and radio frequency interference, ensuring high fidelity and high signal-to-noise ratio in broadcast communication systems.
Accurate impedance matching, stable and lossless transmission: Provides precise impedance transformation from 150 Ω/600 Ω to 10K Ω, perfectly adapted to professional audio equipment and system input/output stages for efficient signal energy transmission.
Wide bandwidth and low distortion, excellent sound quality performance: Features flat frequency response characteristics across the entire audio range while maintaining extremely low harmonic distortion and phase distortion, meeting stringent broadcast grade audio requirements.
High durability and stability, suitable for harsh environments: Uses industrial grade materials and processes with magnetic cores that resist saturation, high-temperature and moisture-resistant coils, and stable long-term performance for 24/7 continuous operation.
Compact integrated design, easy to integrate and install: Compact structure with sturdy packaging and standard pin or terminal interfaces for easy integration into existing audio devices, rack systems, and customized communication solutions.

Performance Characteristics

Characteristic	Description
Core Material	High-permeability Permalloy core, optimized for superior audio performance and high efficiency at low signal levels.
Impedance Ratio	150Ω / 600Ω to 10kΩ, providing precise impedance matching for a wide range of professional audio input and output stages.
Key Performance	Efficient Noise Suppression. Excellent rejection of common-mode noise, ground loop hum, and RF interference, ensuring signal integrity in complex systems.
Frequency Response	Wide and flat response across the audible spectrum, tailored for broadcast-quality voice and audio transmission with minimal phase distortion.
Distortion (THD)	Exceptionally Low Total Harmonic Distortion (THD), preserving signal fidelity and clarity in critical audio paths.
Shielding	Comprehensive Electrostatic & Magnetic Shielding to prevent cross-talk and further enhance noise immunity.
Isolation	High galvanic isolation between windings to break ground loops and protect connected equipment.
Primary Application	Designed for Broadcast & Professional Communication Systems, including mixing consoles, interfaces, amplifiers, and transmission equipment.
Construction	Robust, compact housing suitable for PCB mounting or chassis installation, built for reliability in 24/7 operational environments.

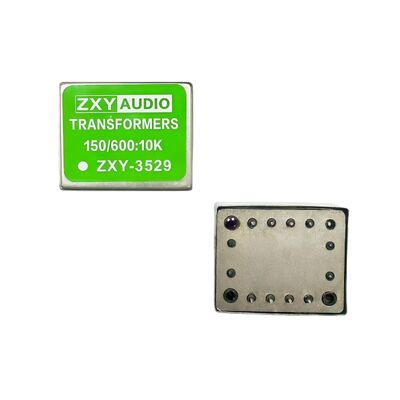

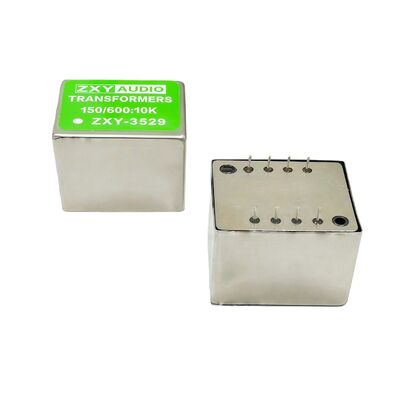

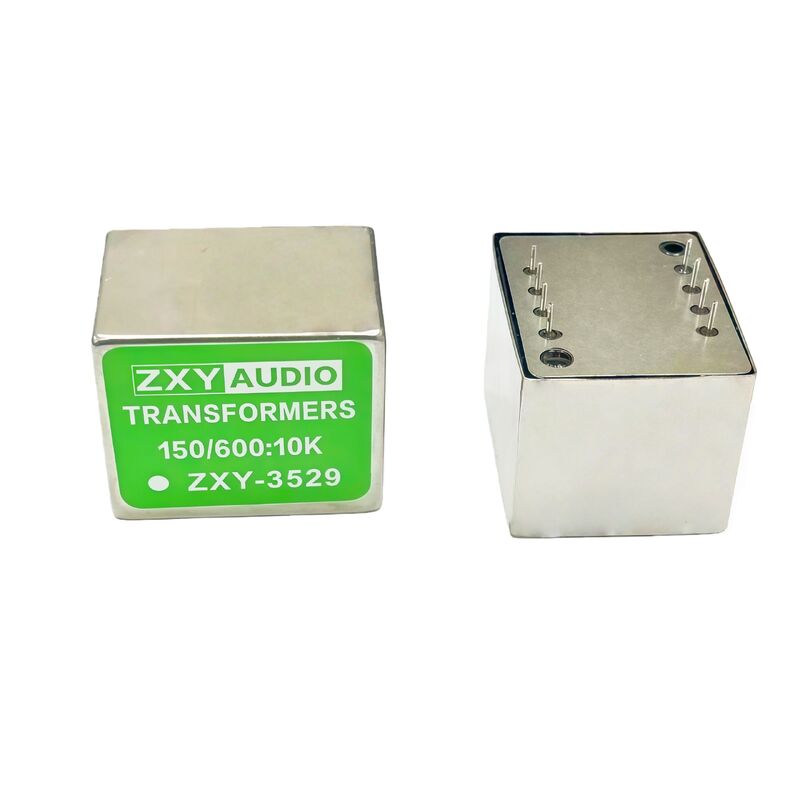

Product Images
