EPC13 High-frequency Transformer with High Efficiency Low Loss and Compact Design for AC-DC Adapters

Brand Name:	ZXY
Model Number:	EPC13
MOQ:	Negotiable
Price:	Negotiable
Packaging Details:	Carton

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen Guangdong

Certification:

RoHS、ISO9001、CE

Highlight:

High Efficiency High-frequency Transformer

Low Loss EPC13 Transformer

Compact Design Audio Transformer

Product Description

EPC13 High-frequency Transformer

Compact, high-performance magnetic component designed for modern switching power supplies with excellent efficiency and minimal core/copper losses. Ideal for AC-DC adapters, USB chargers, LED drivers, and low-power auxiliary power modules.

Core Functions

Energy Transmission and Voltage Conversion

Serves as an energy bridge, efficiently transferring input electrical energy to the output end through magnetic coupling. By changing the turns ratio of primary and secondary windings, precise voltage boosting or lowering is achieved to meet required voltage levels.

Electrical Isolation

Provides a safe electrical isolation barrier through magnetic coupling instead of direct electrical connection. This ensures personal safety by preventing dangerous high voltage from reaching accessible parts and protects sensitive circuits by blocking noise and interference.

Performance Characteristics

Feature Category	Key Features & Performance
Electrical Performance	High Efficiency & Low Loss: Premium ferrite cores and optimized winding design minimize core and copper losses High Power Density: Compact EPC13 footprint delivers excellent power transfer capability Excellent Consistency: Automated manufacturing ensures tight tolerances on key parameters Low EMI Profile: Designed winding structure suppresses high-frequency noise
Reliability & Construction	High-Quality Core Materials: Standard or high-grade ferrite materials ensure stable performance Robust Insulation System: Class B (130°C) or higher insulation materials with triple-insulated wire options Automated Precision Winding: Fully automated production guarantees consistent construction Mechanical Stability: Potting or vacuum varnish impregnation for enhanced durability
Customization & Flexibility	Electrical Parameters: Customizable primary inductance, turns ratio, and winding configuration Mounting Styles: Vertical, horizontal, and SMD pinout configurations available Safety & Standards: Designed to meet international safety standards (UL, VDE, IEC) Special Requests: Support for custom labeling, tape color, and packaging
Typical Applications	AC-DC Adapters & USB Chargers LED Lighting Drivers Auxiliary Power for Home Appliances & Industrial Controls Isolated DC-DC Converters in Networking/Telecom Equipment Low-Power Switch-Mode Power Supplies (SMPS)

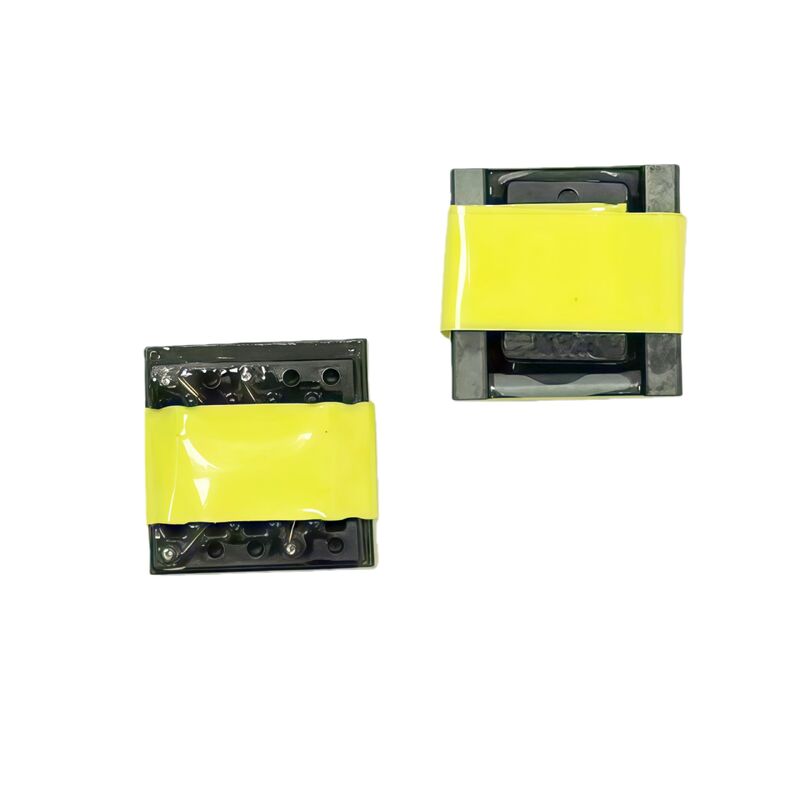

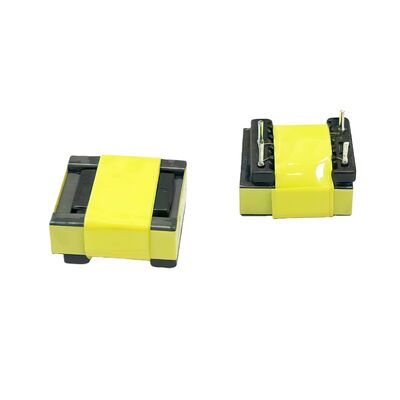

Product Images
