P3188 Fully Encapsulated SMD Shielded Audio Isolation Transformer with 1:1 Turns Ratio and 6 Pins

Brand Name: ZXY
Model Number: P3188
MOQ: 1000
Price: Negotiable
Packaging Details: Customized
Payment Terms: T/T
Detail Information
Product Description
Detail Information
Place of Origin:
Guangdong, China
Certification:
RoHS、ISO9001、CE
Supply Ability:
Customized
Highlight:

1:1 Turns Ratio Audio Isolation Transformer

,

6 Pins SMD Audio Transformer

,

Fully Encapsulated Shielded Audio Transformer

Product Description
P3188 Fully Encapsulated SMD Shielded Audio Isolation Transformer 1:1 with 6 Pins
The P3188 is a fully packaged, shielded SMD audio isolation transformer featuring a 1:1 turns ratio and 6-pin configuration. This precision component eliminates ground loop noise, common mode interference, and DC components in audio circuits through magneto-electric isolation, significantly improving signal-to-noise ratio and audio purity.
Key Features and Benefits
  • Electrical Isolation: Provides physical electrical isolation between input and output terminals, eliminating ground loop noise and protecting circuits from surges
  • Noise Suppression: Built-in magnetic shielding effectively resists EMI/RFI interference for cleaner audio signals
  • Signal Coupling: 1:1 transformer couples AC audio signals without loss while blocking DC components
  • Impedance Matching: Maintains circuit balance for effective signal transmission in recommended designs
  • Robust Construction: Fully encapsulated SMD design offers excellent moisture, dust, and vibration resistance
Technical Specifications
Feature Category Specification / Description
General Type Audio Frequency Isolation Transformer
Turn Ratio 1:1 (Primary : Secondary)
Mounting Style Surface Mount Device (SMD)
Package Fully Encapsulated (Plastic Case)
Shielding Integrated Internal Magnetic Shield
Pin Count 6 Pins
Primary Function Electrical Isolation & Common-Mode Noise Rejection
Key Benefits - Eliminates Ground Loop Hum & Noise
- Suppresses EMI/RFI Interference
- Blocks DC Bias between circuits
- Enhances Signal Integrity (SI)
Construction Robust, shielded construction within a resin-filled package
Typical Applications - Professional Audio Equipment
- Communication Systems
- Consumer Audio Devices
- Audio I/O Ports on Digital Devices
Product Images

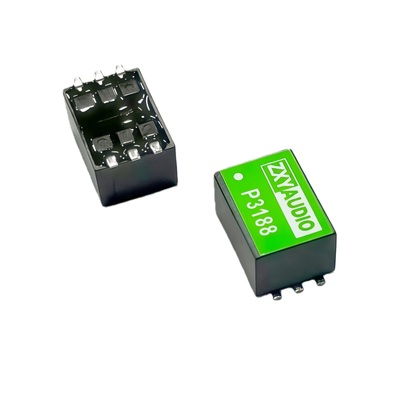

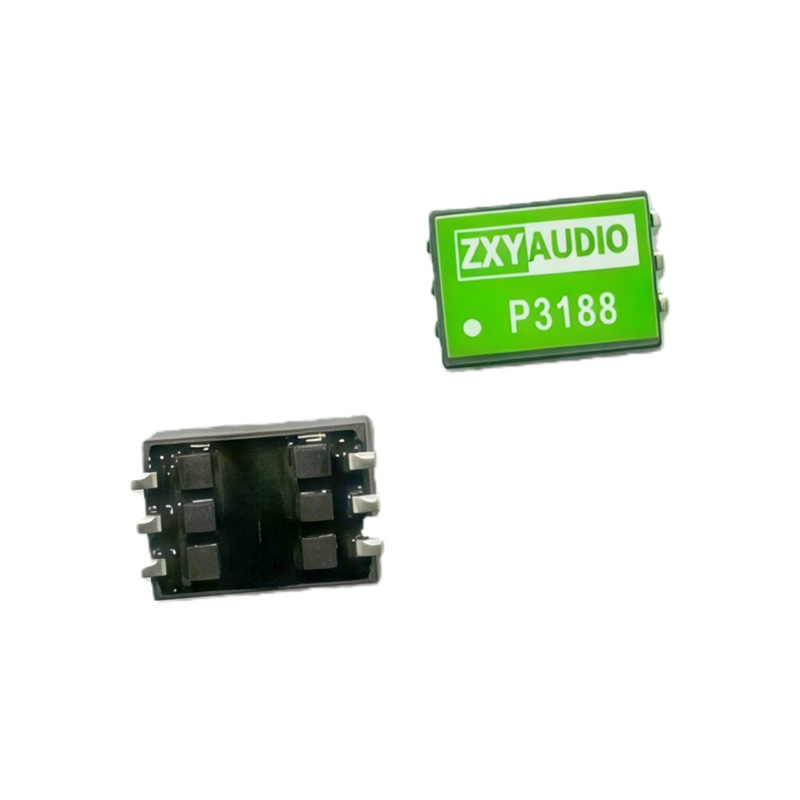

P3188 Audio Isolation Transformer close-up view
P3188 Transformer technical diagram
P3188 Transformer dimensional specifications
P3188 Transformer application example
