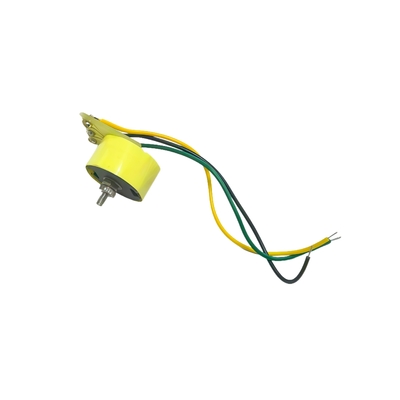

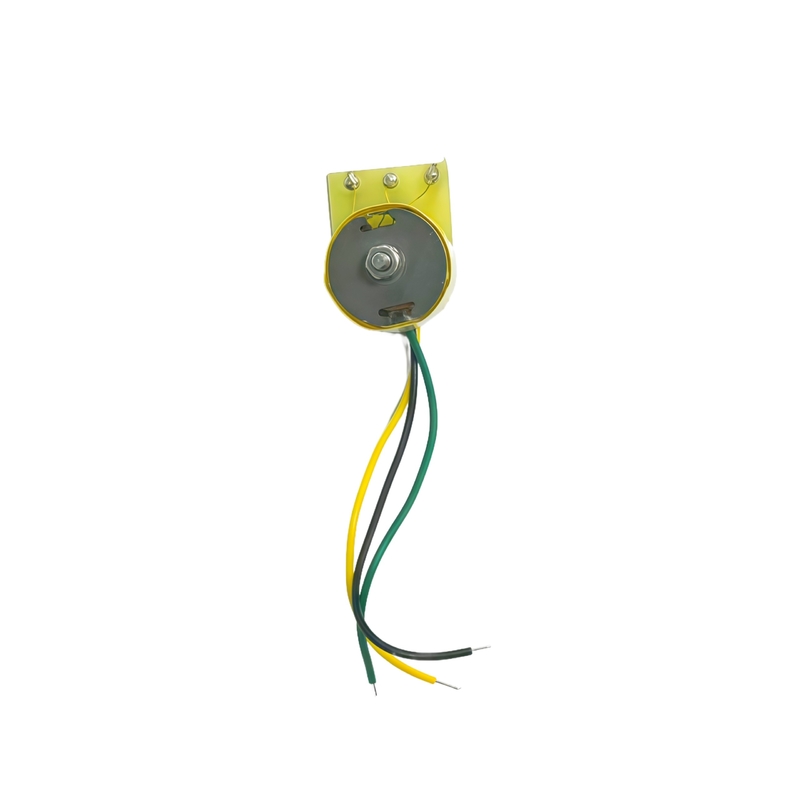

Microphone Transformer Audio Transformer Magnet Ring Coil High Power Filter

1.Product Description

This is a core signal processing and power filtering system specifically designed for high-end professional audio equipment, particularly vacuum tube microphones. The system employs audio transformers to achieve precise impedance matching and signal isolation, ensuring warm, rich sound quality with exceptionally low background noise. Ferrite core inductors effectively suppress high-frequency and radio-frequency interference, purifying signal transmission. High-power filters deliver pure, stable DC power, significantly reducing AC ripple. All components work in concert to guarantee the microphone's operational stability, high signal-to-noise ratio, and exceptional audio performance in complex electromagnetic environments. This system is an essential accessory for achieving broadcast-grade sound quality and reliability.

Three Core Functions:

1. Signal Processing and Optimization

Impedance Matching: The core function of microphone/audio transformers. It converts the high impedance of the microphone capsule into a lower impedance more suitable for long-distance transmission and amplifier reception. This enables efficient signal energy transfer, significantly enhancing signal strength, improving frequency response (especially at low frequencies), and reducing distortion.

Signal Isolation: Transformers transmit signals via electromagnetic induction, severing the direct electrical connection between the microphone circuit and subsequent equipment. This completely eliminates ground loop hum, forming the foundation for clean audio.

Tone Shaping: High-quality transformers introduce mild harmonic distortion, creating the so-called “Transformer Sound.” This adds warmth, thickness, and an analog character to the sound—a signature tone sought after in many professional audio devices.

2. Noise Suppression and Purification

Suppress EMI/RFI: Ferrite cores (magnetic beads) are specifically designed to filter out high-frequency noise. Acting as a barrier, they effectively absorb radio frequency interference from external sources like cell phones, Wi-Fi, and lighting, preventing it from entering the audio signal path and ensuring signal purity.

Power Purification: High-power filters serve as the “guardian” of the power supply system. They filter out AC ripple and various noise components from the power source, delivering exceptionally pure and smooth DC power to the microphone. This is the most critical prerequisite for achieving extremely low background noise.

3. Power Stability and Protection

Provide Stable Voltage: High-power filters handle significant power fluctuations and surge currents, delivering highly stable DC voltage. This ensures the microphone's precision amplification circuitry—particularly vacuum tubes—operates consistently at peak performance, guaranteeing reliability and uniform performance.

System Protection: Through filtering and voltage stabilization, these components shield expensive microphone capsules and amplification circuits from damage caused by voltage fluctuations and surge impacts, thereby extending equipment lifespan.

2.Performance Characteristics
