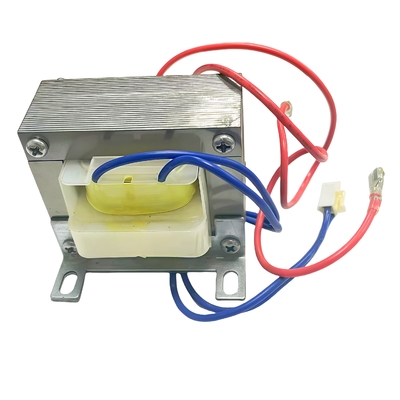

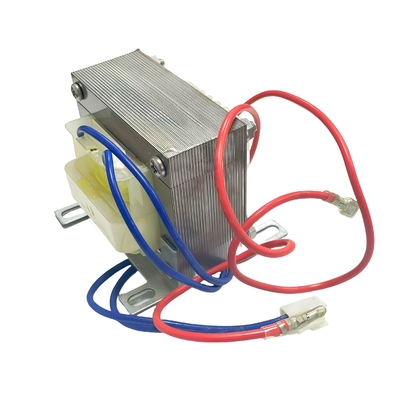

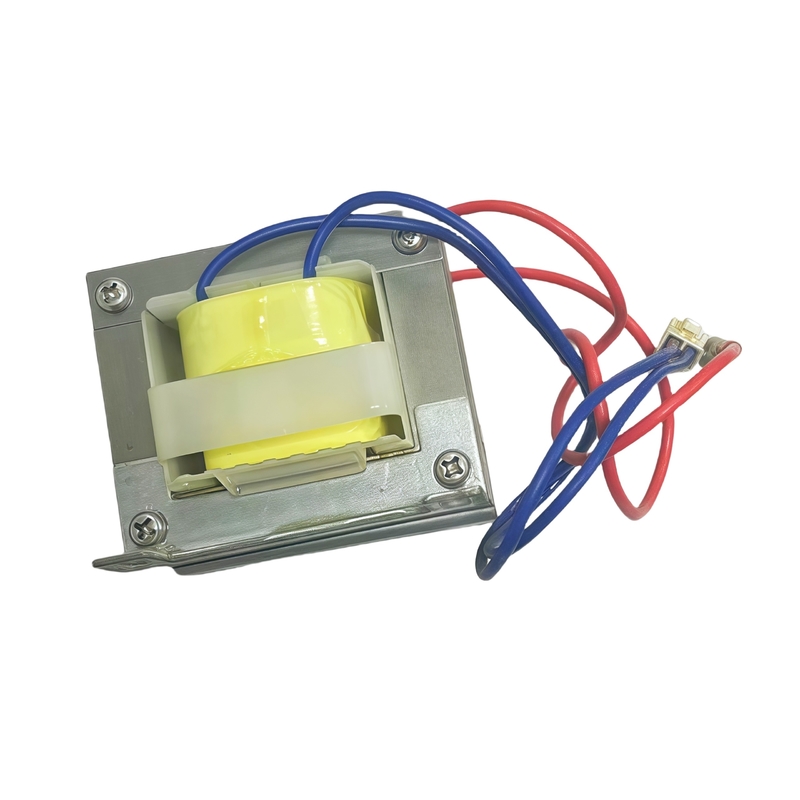

Customized EI66 Low Frequency Power Supply Transformers Square Inverter 110V 220V

Brand Name:	ZXY
Model Number:	ZXY-EI66
MOQ:	Negotiable
Price:	Negotiable
Packaging Details:	Carton
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Huizhou.China

Certification:

RoHS、ISO9001、CE

Model No:

Core Shape:

Product Name:

EI66 Power Supply Transformers

Proof Way:

Brand Name:

Characteristics:

Low Frequency

Product Description

Customized EI66 Low Frequency Power Supply Transformers Square Inverter 110V 220V

1.Product Description

EI66 power supply transformers are compact, cost-effective laminated transformers commonly used in low-power electronic applications. The "EI" designation refers to their stacked E-shaped and I-shaped iron core laminations, which reduce eddy current losses, while "66" indicates the core's approximate 66mm width. These transformers typically operate at 50/60Hz frequencies with power ratings ranging from 5VA to 50VA, offering reliable voltage conversion for circuits requiring isolation or step-up/step-down functionality. Their robust construction features enameled copper windings and varnish-impregnated cores for noise reduction. EI66 transformers are widely employed in power adapters, audio equipment, control systems, and small appliances due to their simple design, high efficiency (typically 85%-92%), and easy manufacturability. Proper selection requires consideration of input/output voltage, load current, regulation, and temperature rise specifications.

Here are three key features of Customized EI66 Low Frequency Power Supply Transformers / Square Inverter Power Transformers:

High Efficiency & Low Losses
- Optimized EI-66 laminated silicon steel core minimizes eddy current and hysteresis losses, achieving 85%-93% efficiency even under low-frequency (50Hz/60Hz) operation.
Robust Square Wave Compatibility
- Specially designed to handle non-sinusoidal (square wave) inverter loads without saturation, ensuring stable voltage output under harsh power conditions.
Flexible Customization
- Supports tailored designs for input/output voltages, multi-tap windings, shielded layers (EMI suppression), and potted construction for harsh environments (e.g., industrial/UPS applications).

2.Performance Characteristics

Feature	Description
Core Material	High-grade silicon steel (EI-66 lamination) for low hysteresis & eddy current losses.
Frequency Range	Optimized for 50Hz/60Hz low-frequency operation (suitable for inverter applications).
Power Rating	Customizable from 10VA to 100VA (typical), depending on design requirements.
Input/Output Voltage	Tailored windings for AC/AC or AC/DC conversion (e.g., 110V/220V input, 6V-48V output).
Efficiency	85%-93% (depends on load and design), with low no-load losses.
Isolation	Reinforced insulation (up to 4kV withstand voltage) for safety compliance.
Thermal Performance	Class B/F insulation, rated for ≤75°C temperature rise under full load.
Construction	Vacuum impregnated windings, epoxy-coated for moisture/chemical resistance.
Noise Level	Low vibration & audible noise (<40dB) due to tight core lamination.
Custom Options	- Multiple secondary taps
	- Shielded windings (EMI reduction)
	- Potted or encapsulated designs.
Compliance	Meets UL/IEC/EN61558 standards (optional certification).
Applications	Inverters, UPS systems, industrial controls, renewable energy systems.

Customized EI66 Low Frequency Power Supply Transformers Square Inverter 110V 220V 0

3.Other Recommended Produtcs

Customized EI66 Low Frequency Power Supply Transformers Square Inverter 110V 220V 4

4.Company Profile
