EI80 Core Three Phase Reactor 60A 11.5uH Low Loss Line Choke for 380V 400V Inverter

Brand Name: ZXY
Model Number: ZXY-EI80
MOQ: Negotiable
Price: Negotiable
Packaging Details: Negotiable
Detail Information
Product Description
Detail Information
Place of Origin:
Shenzhen Guangdong
Certification:
RoHS、ISO9001、CE
Product Description
EI80 Core Three Phase Reactor 60A 11.5uH Low Loss Line Choke For 380V 400V Inverter
Product Overview

Engineered for industrial automation and power quality optimization, our EI80 Core Three Phase AC Line Reactor (60A, 11.5uH) serves as a heavy-duty, low-loss magnetic solution specifically designed for 380V to 400V variable frequency drives (VFDs) and power inverters. By utilizing premium high-permeability silicon steel laminations, it significantly mitigates total harmonic distortion (THD) and safeguards sensitive drive electronics against transient voltage spikes from the grid.

In practical application, this 3-phase line choke is widely deployed on the input side of industrial motor drives, automated CNC machining centers, and heavy-duty conveyor systems—effectively preventing inverter nuisance tripping caused by grid fluctuations and preventing excessive harmonic feedback from polluting the factory's main power supply.

Performance Characteristics
Parameter Specification Details
Product Name EI80 Core Three Phase AC Line Reactor
Product Type 3-Phase AC Line Choke / Inductor
Core Structure High-Permeability EI80 Silicon Steel Core (Low Core Loss)
Rated Current 60A (Continuous operating current)
Nominal Inductance 11.5uH ±10% (Precision gap adjusted)
Rated Voltage 380V / 400V / 415V AC System Compatibility
Phase / Frequency Three-Phase (3-Phase) / 50Hz / 60Hz
Core Material High-Grade Silicon Steel Laminations (Low eddy current loss)
Winding Material 100% Pure Enameled Copper Wire
Insulation Class Class H (Withstands up to 180°C)
Dielectric Strength 3000V AC / 50Hz / 5mA / 60s (No breakdown)
Impedance Drop 3% - 4% (Standard industry impedance configuration)
Terminal Connection Heavy-Duty Copper Lugs / Terminal Blocks (Ready to bolt)
Certification CE, RoHS & REACH Compliant
MOQ 10 - 50 PCS (Supports sample orders for industrial testing)
Product Images

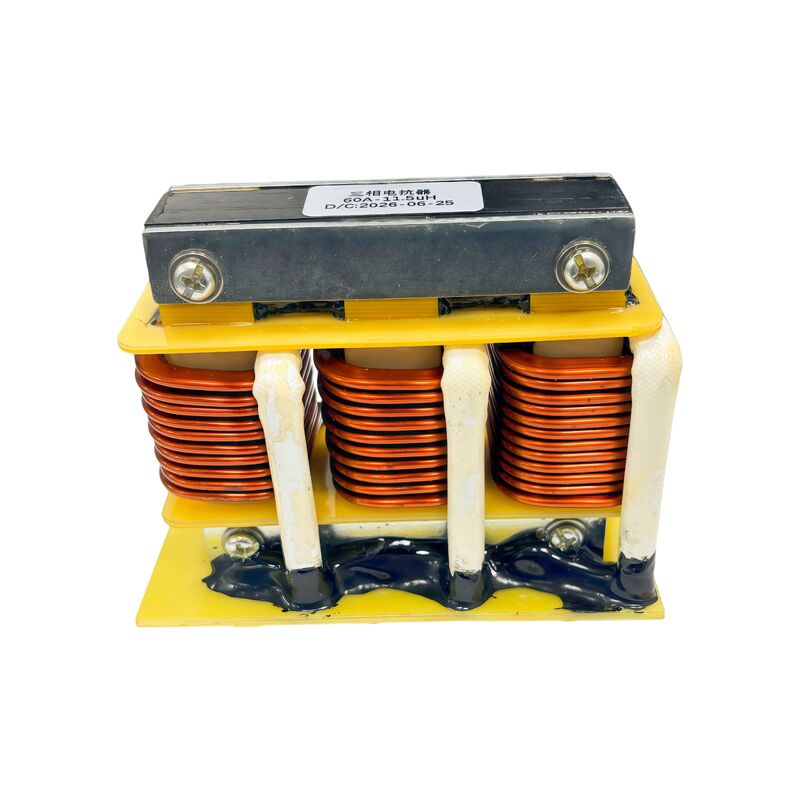

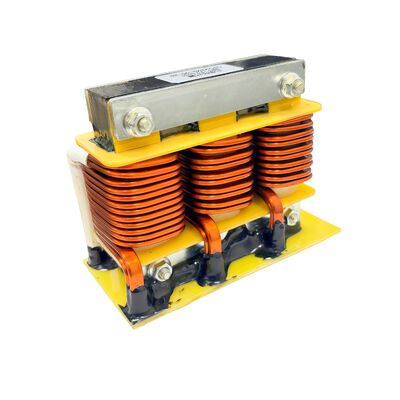

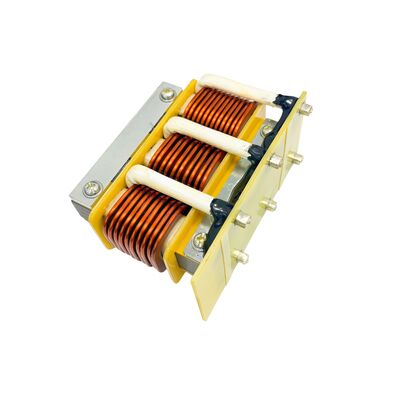

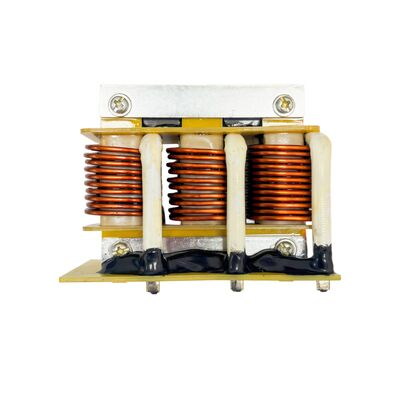

EI80 Core Three Phase Reactor front view EI80 Core Three Phase Reactor side view EI80 Core Three Phase Reactor terminal connections EI80 Core Three Phase Reactor mounting details EI80 Core Three Phase Reactor technical specifications EI80 Core Three Phase Reactor dimensional drawing
