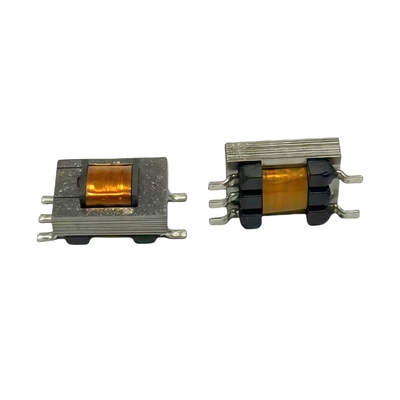

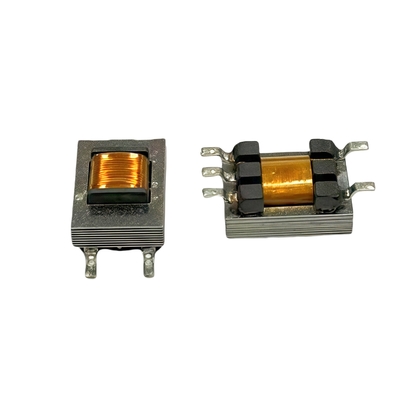

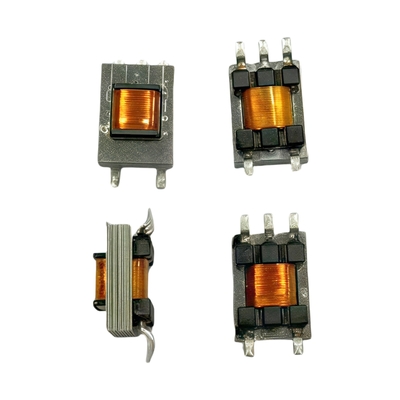

ED8 Audio Transformer 600:600 1:1 SMD Shielded Audio Isolation Transformer 5H

1.Product Description

This ED8 audio transformer is a 600:600 1:1 SMD shielded audio isolation transformer designed specifically for high-quality audio transmission, with an inductance of 5H, providing excellent signal processing capabilities for audio systems. The 600:600 turns ratio and 1:1 voltage conversion ratio ensure that the audio signal is transmitted without attenuation or distortion, accurately reproducing sound details; Surface mount (SMD) design is compatible with modern circuit boards, saving space and facilitating integration. The unique shielding structure effectively isolates electromagnetic interference (EMI) and radio frequency interference (RFI), eliminates current noise and crosstalk, and ensures pure output of audio signals; The high inductance of 5H enhances the transmission stability of low-frequency signals, improving the dynamic range and fullness of sound. Suitable for professional audio equipment, broadcasting systems, recording studios, and other scenarios, with excellent isolation performance and signal fidelity, it brings users a high fidelity auditory experience.

1. Lossless signal transmission: With a 600:600 turns ratio and a 1:1 voltage conversion ratio, the ED8 audio transformer achieves lossless and attenuation free transmission of audio signals. Whether it's subtle vocal details or powerful instrument performance, they can be accurately reproduced to ensure that the audio is transmitted from the input to the output in its original flavor. ​

2. Low frequency enhancement optimization: The high inductance of 5H endows it with excellent low-frequency signal processing capabilities. In the process of audio transmission, it can effectively enhance low-frequency signals, making bass more rich and powerful, and making low-frequency elements such as drum beats and bass in music more full and layered, enhancing the overall audio listening experience. ​

3. Convenient and compact installation: Using surface mount (SMD) technology, this transformer is compact in size and can tightly fit modern circuit board layouts. This not only saves circuit board space, but also simplifies the circuit design process, improves production efficiency, and is very suitable for audio devices with strict space requirements. ​

4. Efficient electromagnetic shielding: The unique shielding structure is like a sturdy electromagnetic protection wall, which can efficiently resist electromagnetic interference (EMI) and radio frequency interference (RFI). Effectively eliminating current noise and signal crosstalk caused by external electromagnetic environment, ensuring the purity of audio signals during transmission, and allowing users to enjoy clear and noise free high-quality audio. ​

5. Electrical isolation and noise reduction: With powerful electrical isolation function, it can effectively block DC components and avoid noise problems caused by grounding loops. By cutting off potential noise transmission paths, the signal-to-noise ratio of the audio system is significantly improved, ensuring stable and pure audio signals during transmission, providing reliable audio transmission guarantees for professional recording equipment, broadcasting systems, high-end audio systems, etc.

2.Performance Characteristics
