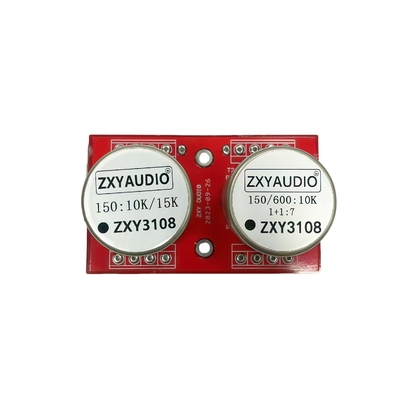

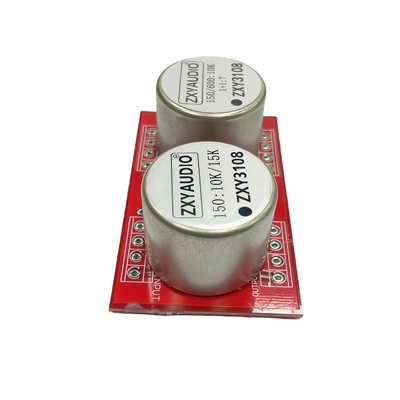

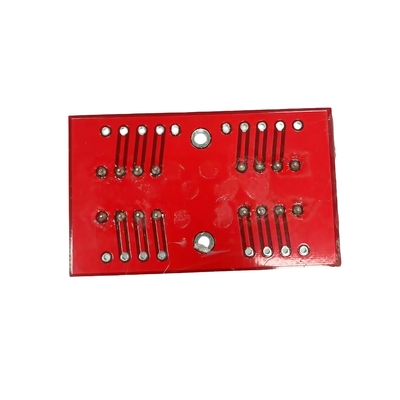

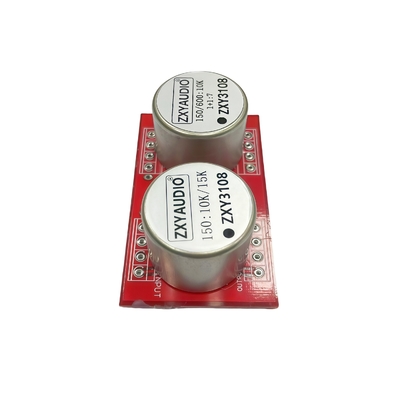

ZXY3108 150:10K/15K 150/600:10K 1+1:7 Permalloy Transformer With PCBA Circuit Board

1.Product Description

The Permalloy transformer designed with turns ratios of 150:10K/15K, 150/600:10K, and 1+1:7 has a series of outstanding features. Firstly, in terms of material properties, PoMo alloy has high magnetic permeability, which can efficiently concentrate and conduct magnetic flux, significantly improving electromagnetic conversion efficiency, reducing energy loss, and allowing transformers to generate less heat and have higher stability during operation. At the same time, its low coercivity characteristics make the magnetic core require minimal energy during magnetization and demagnetization processes, and can quickly respond to changing electrical signals, ensuring accurate and efficient processing of various complex signals.

In terms of the implementation of the turns ratio function, the rich and flexible turns ratio settings bring strong adaptability to transformers. A turn ratio of 150:10K/15K can achieve significant voltage conversion based on specific circuit requirements, such as converting lower voltages to high voltages suitable for specific equipment operation, or vice versa, to meet the power supply needs of devices with different voltage levels. The turns ratio of 150/600:10K performs well in matching circuit components with different impedances, accurately adjusting input and output impedances, reducing reflection and loss during signal transmission, and ensuring stable and efficient signal transmission. This is particularly important in fields such as audio and communication that require strict signal quality. The 1+1:7 turns ratio design is usually used to achieve special signal isolation and distribution functions, which can separate input signals into specific ratios for output, effectively isolate different circuit parts, prevent interference and crosstalk, and enhance the anti-interference ability of the entire system.

In addition, the transformer has fully considered practicality and reliability in its structural design. The compact structure makes it small in size, takes up less space, and is easy to integrate into various electronic devices that have space limitations; The sturdy and durable construction ensures stable operation in complex working environments, such as large temperature and humidity changes, or scenarios with certain mechanical vibrations, reducing the probability of failure and providing solid support for the long-term stable operation of the equipment.
