Permalloy Audio Transformer

ED8X10-1.5H/2H/3H SMD Permalloy Nickel Steel Sheet Audio Isolation Transformer

All Category

Chip Inductor

Ms. Chen

rhea@zxycoil.com

+8613554723725

Contact Now

ED8X10-1.5H/2H/3H SMD Permalloy Nickel Steel Sheet Audio Isolation Transformer

Brand Name:	ED8
Model Number:	ED8 customized
MOQ:	Negotiable
Price:	Negotiable
Packaging Details:	1000pieces / Carton size:380mm325mm345mm
Payment Terms:	T/T paypal xtransfer

Detail Information

Product Description

Detail Information

Place of Origin:

China,shenzhen city.

Certification:

RoHS,ISO9001-2001

Model Number:

ZXY-ED8X10

TransformerMaterial:

Pimo Nickel Steel Patch /Copper Wire

Keywords:

Permalloy Nickel Steel Sheet Audio Transformer

Pins Number:

4 Or Customized

Frequency:

Low Frequency

Color Of Bobbin:

Customer Designated

Supply Ability:

1000K-pcs/month

Highlight:

Audio Isolation Transformer

Permalloy toroidy audio transformer

Copper Wire Audio Isolation Transformer

Product Description

ED8X10-1.5H/2H/3H SMD Permalloy Nickel Steel Sheet Audio Isolation Transformer

1.Product Description:

Permalloy nickel steel sheet audio transformer is a key component used in audio equipment for precise processing and transmission of audio signals. Its core uses Permalloy nickel steel sheets, which are known for their high magnetic permeability and low hysteresis loss, greatly improving electromagnetic conversion efficiency and achieving efficient transmission of audio signals.
In the process of audio signal processing, it can not only effectively isolate different audio circuits to prevent signal interference, but also perform boost or buck operations on audio signals according to application requirements. In the professional audio field, such as recording studios and radio stations, it helps maintain the purity and high fidelity of audio signals, ensuring the authenticity of recorded and played sound. In consumer grade audio products such as home speakers and headphone amplifiers, it also plays an important role in improving sound quality and bringing users an immersive auditory feast.

2.Product Advantages

Advantage	Explanation in Application
Superior Magnetic Properties	- High Magnetic Permeability: The permalloy nickel - steel sheet has an extremely high magnetic permeability. In audio transformers, this property enables efficient magnetic coupling between the primary and secondary windings. It significantly enhances the transfer of audio signals, reducing signal loss. For example, in high - end audio systems, it ensures that even the subtlest nuances of sound are accurately transmitted, providing a more immersive listening experience.
Superior Magnetic Properties	- Low Hysteresis Loss: With low hysteresis loss, the energy consumption during the magnetization and demagnetization cycles of the magnetic core is minimized. This not only reduces heat generation but also helps the audio transformer maintain stable performance over long - term operation. In professional recording studios, where continuous high - quality audio processing is required, this stability is crucial for producing consistent, distortion - free audio.
Excellent Audio Signal Processing	- High - Fidelity Transmission: Permalloy nickel - steel sheet audio transformers are capable of accurately transmitting audio signals with minimal distortion. They can faithfully reproduce the full spectrum of audio frequencies, from the deep bass to the high - pitched treble. In home theater systems, this results in a more realistic sound reproduction, making viewers feel as if they are in the actual scene.
Excellent Audio Signal Processing	- Wide Frequency Response: These transformers have a broad frequency response range, covering the entire audible frequency spectrum (20Hz - 20kHz) and often beyond. This makes them suitable for various audio applications, such as music production, where different musical instruments and sounds span a wide range of frequencies. Whether it's the gentle strumming of a guitar or the thunderous beats of a bass drum, the transformer can handle the signals with precision.
Effective Electrical Isolation	- Breaking Ground - Loop Interference: They can effectively isolate the input and output circuits, breaking ground - loops. In complex audio setups, differences in ground potential between various devices can introduce unwanted noise, like hums. The permalloy nickel - steel sheet audio transformer eliminates this interference, ensuring a clean and pure audio output. This is particularly important in live sound reinforcement systems, where any noise can be amplified and disrupt the performance.
Effective Electrical Isolation	- Protecting Equipment: Electrical isolation also safeguards audio equipment from potential damage caused by electrical faults or abnormal voltages. In professional audio installations, where expensive equipment is used, this protection feature helps to extend the lifespan of the devices and reduce maintenance costs.
Structural and Material Advantages	- Robustness: The permalloy nickel - steel sheet provides good mechanical strength, making the audio transformer durable. It can withstand vibrations and impacts, which is beneficial in applications where the equipment may be subject to movement, such as in portable audio devices or on - stage audio equipment.
Structural and Material Advantages	- Material Stability: The performance of the permalloy nickel - steel sheet is less affected by environmental factors like temperature and humidity. This ensures that the audio transformer maintains consistent magnetic properties under different working conditions, providing reliable audio processing regardless of whether it's used in a hot and humid studio or a cold and dry concert hall.

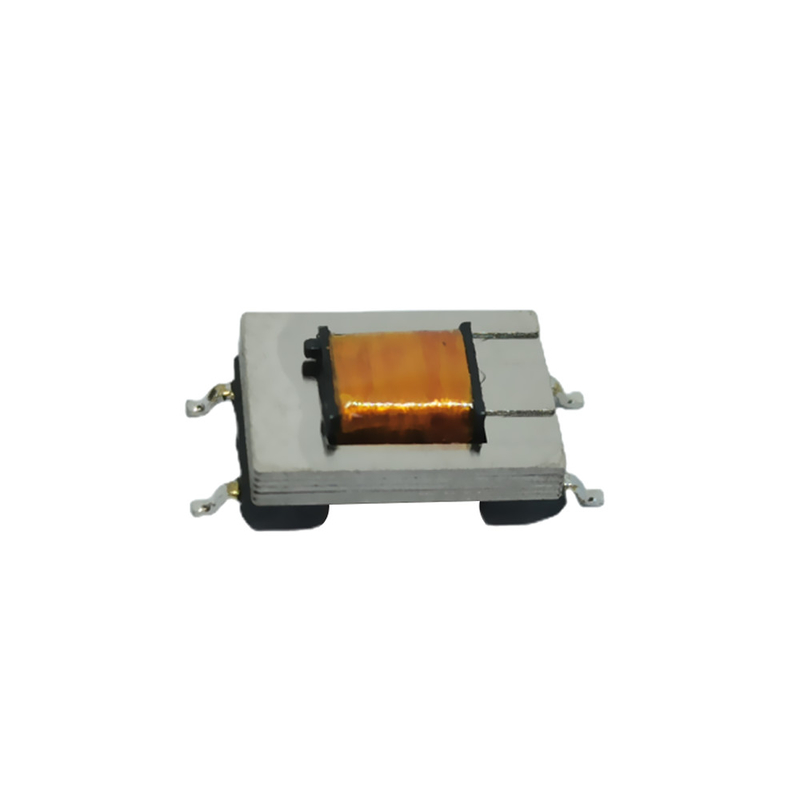

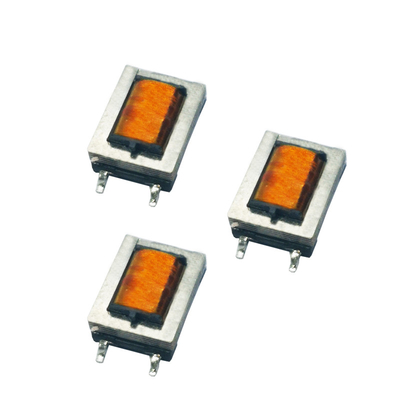

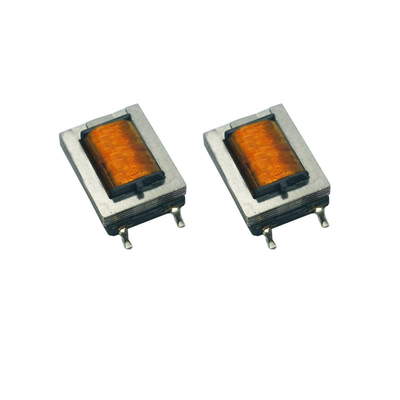

ED8X10-1.5H/2H/3H SMD Permalloy Nickel Steel Sheet Audio Isolation Transformer 0

ED8X10-1.5H/2H/3H SMD Permalloy Nickel Steel Sheet Audio Isolation Transformer 1
