Highly Integrated ZXY2207 600:600 Permalloy Transformer With PCBA Circuit Board

Brand Name: ZXY
Model Number: ZXY2207
MOQ: Negotiable
Price: Negotiable
Packaging Details: Carton
Payment Terms: T/T
Detail Information
Product Description
Detail Information
Place of Origin:
China,Shenzhen City.
Certification:
RoHS、ISO9001、CE
Product Keywords:
600:600 Permalloy Transformer With PCBA Circuit Board
Place Of Origin:
Huizhou.China
Benefits:
Good Heat Dissipation And Electromagnetic Shielding
Installation Method:
PCBA Circuit Board
Turn Ratio:
600:600
Shape Type:
Square
Highlight:

Highly Integrated Permalloy Transformer

,

PCBA Circuit Board Permalloy Transformer

,

600:600 Permalloy Transformer

Product Description

Highly Integrated ZXY2207 600:600 Permalloy Transformer With PCBA Circuit Board

1.Product Description

The combination of 600:600 Pomo alloy transformer and PCBA circuit board, with the high magnetic permeability and low loss characteristics of Pomo alloy, achieves low distortion and high fidelity signal transmission, and can accurately process signals in audio, communication and other fields. 1: The turns ratio design of 1 ensures stable conversion of input and output signals, avoiding significant fluctuations in voltage and current. The integration with PCBA circuit boards tightly integrates transformers with other electronic components, significantly reducing the size of the circuit system, minimizing signal transmission interference, and achieving standardization and automation of the production process, effectively reducing costs and improving efficiency. Its customized design can meet the special needs of different application scenarios, with a reasonable circuit board layout that balances heat dissipation and electromagnetic shielding, enhancing system reliability and electromagnetic compatibility, and facilitating equipment maintenance and functional upgrades, providing stable and efficient solutions for various electronic devices.



2.Performance Characteristics



Performance Features Description
High - Permeability Signal Transmission Leveraging permalloy’s high magnetic permeability, the 600:600 transformer minimizes hysteresis and eddy - current losses, enabling low - distortion signal transfer. Ideal for audio and communication applications, it preserves signal integrity across the frequency spectrum, ensuring accurate and stable transmission with minimal degradation.
1:1 Turns Ratio Stability The 600:600 turns ratio provides a direct 1:1 voltage and current conversion, maintaining consistent signal levels between input and output. This ratio prevents significant voltage fluctuations or current imbalances, making it suitable for circuits requiring precise signal replication without amplification or attenuation.
Integrated PCBA Design Integrated with a PCBA circuit board, the transformer combines with other components (capacitors, resistors, transistors) on a single board. This integration reduces overall system size, minimizes wiring interference, and optimizes space utilization, making it ideal for compact electronic devices and high - density circuit designs.
Customizable Configuration The PCBA allows for customized design according to application needs. Users can adjust winding arrangements, component selection, and circuit layouts, tailoring the 600:600 permalloy transformer to specific requirements of different electronic systems for optimal performance.
Enhanced Production Efficiency The combination enables standardized, automated assembly processes. Reducing manual operations and debugging steps, it streamlines production, cuts costs, and ensures consistent product quality, facilitating mass - production of reliable electronic devices.
Superior Heat Dissipation and EMI Shielding Through strategic PCBA layout design, the system addresses heat dissipation issues effectively. Additionally, integrated electromagnetic shielding reduces interference, enhancing electromagnetic compatibility (EMC) and protecting surrounding components from signal disruptions, ensuring stable system operation.
Easy Maintenance and Upgrades With components concentrated on the PCBA, fault diagnosis and repair become more straightforward. Malfunctioning modules can be easily replaced, and system upgrades are achievable by swapping or updating specific components, offering flexibility for performance enhancement and functional expansion over time.

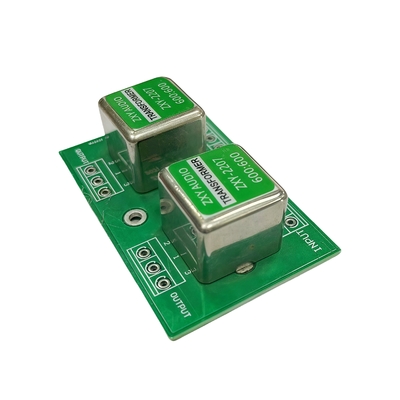

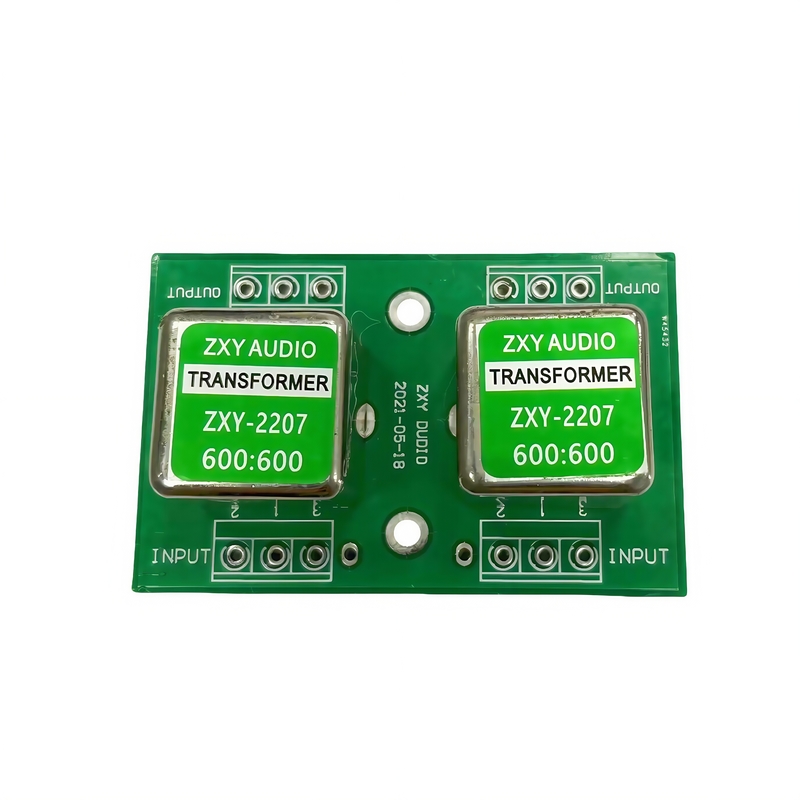

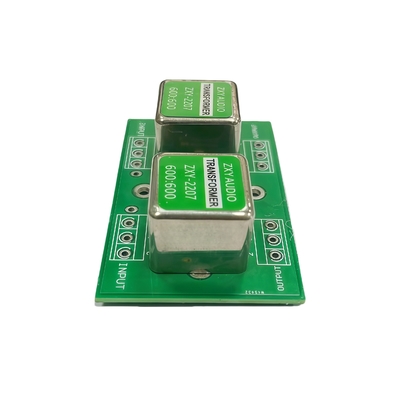

Highly Integrated ZXY2207 600:600 Permalloy Transformer With PCBA Circuit Board 0Highly Integrated ZXY2207 600:600 Permalloy Transformer With PCBA Circuit Board 1Highly Integrated ZXY2207 600:600 Permalloy Transformer With PCBA Circuit Board 2Highly Integrated ZXY2207 600:600 Permalloy Transformer With PCBA Circuit Board 3
