Permalloy Audio Transformer

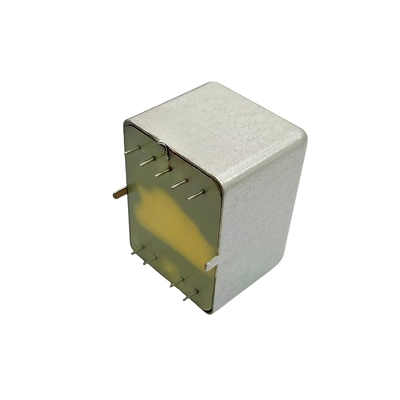

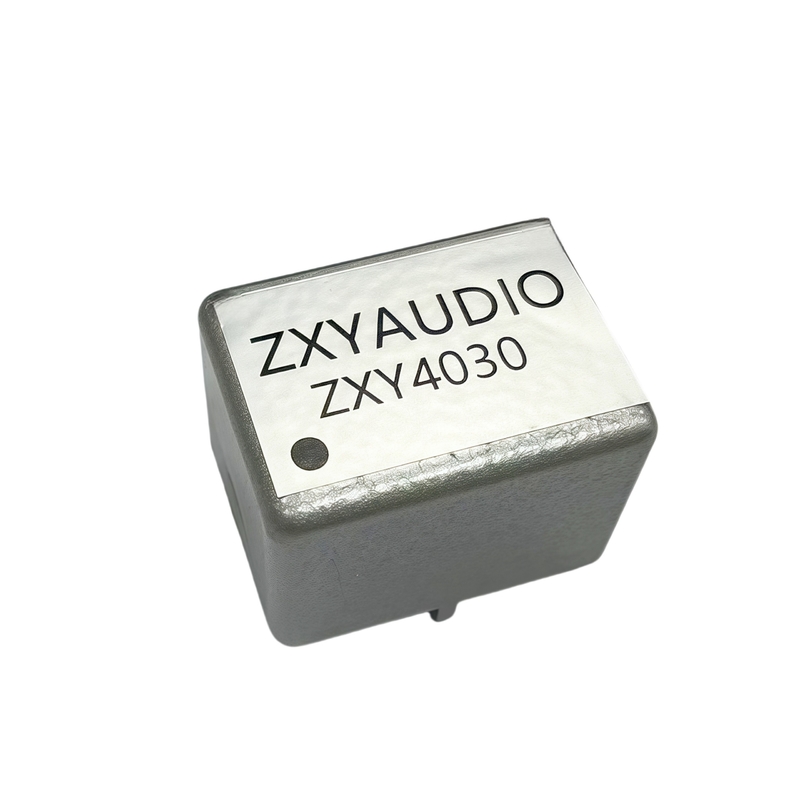

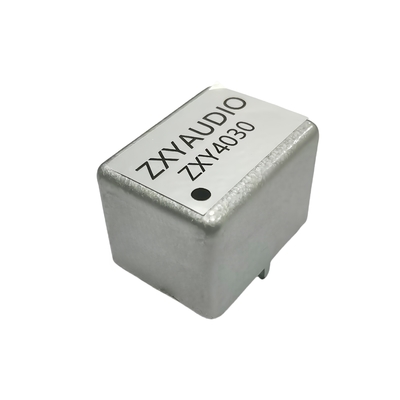

Customized Model ZXY4030 Permalloy Audio Transformer With Metal Shield Pins 5+4

All Category

Chip Inductor

Ms. Chen

rhea@zxycoil.com

+8613554723725

Contact Now

Customized Model ZXY4030 Permalloy Audio Transformer With Metal Shield Pins 5+4

Brand Name:	ZXY
Model Number:	ZXY4030
MOQ:	Negotiable
Price:	Negotiable
Packaging Details:	Carton
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China,Shenzhen City.

Certification:

RoHS、ISO9001、CE

Model Number:

ZXY4030

Characterization:

Impedance Transform

Number Of Pins:

Pins 5+4

Keywords:

ZXY4030 Permalloy Audio Transformer

Advantage:

Precision Winding Process

Rate Of Work:

Customized

Highlight:

Customized Model Permalloy Audio Transformer

Metal Shield Pins Permalloy Audio Transformer

5+4 Permalloy Audio Transformer

Product Description

Customized Model ZXY4030 Permalloy Audio Transformer With Metal Shield Pins 5+4

1.Product Description

ZXY4030 Permalloy Audio Transformer stands out in the audio field with its outstanding performance. It uses high permeability PoMo alloy as the iron core, with low coercivity and high saturation magnetic induction intensity, which enables it to quickly respond to audio signals and is less prone to magnetic saturation; Precision winding technology reduces DC resistance and enhances anti-interference ability; Reasonable structural design takes into account both heat dissipation and electromagnetic shielding. These features endow it with high fidelity sound quality, enabling extremely low distortion across the entire audio frequency range, while also having a wide impedance adaptation range that can accurately match various audio devices. In addition, its signal transmission isolation, impedance transformation and other functions are excellent, with high reliability and stability. Widely used in professional recording studios, high-end audio systems, radio stations, and film and television production, it ensures high-quality processing and transmission of audio signals, bringing users the ultimate auditory experience.

2.Performance Characteristics

Performance Features	Description
High - Permeability Permalloy Core	The ZXY4030 Permalloy Audio Transformer employs high - permeability permalloy as its core material. Characterized by low coercivity and high saturation magnetic induction, the core minimizes losses during magnetization and demagnetization, enabling rapid response to audio signal changes. Its high saturation magnetic induction ensures stable operation even under large - signal inputs, preventing magnetic saturation and laying a solid foundation for high - quality audio signal transmission.
Precision Winding Technology	Utilizing advanced winding techniques and high - precision manufacturing processes, the transformer's windings feature uniform wire diameters and close - packed arrangements. This not only significantly reduces the DC resistance of the windings, minimizing energy losses, but also optimizes the inductance performance, enhancing the processing ability of audio signals. Moreover, the precision winding technology improves the transformer's anti - interference capability, reducing electromagnetic leakage.
Optimal Structural Design	Structurally, the ZXY4030 takes into account the requirements of heat dissipation and electromagnetic shielding. Its casing is made of materials with excellent heat - dissipation properties, effectively dissipating the heat generated during operation to ensure the transformer operates within an appropriate temperature range and extends its service life. Meanwhile, the rational electromagnetic shielding design effectively blocks external electromagnetic interference, maintaining the purity of audio signals.
High - Fidelity Sound Quality	Thanks to its high - quality core material and precise design, the ZXY4030 achieves extremely low distortion across the full audio frequency range of 20Hz - 20kHz. It can accurately reproduce both delicate human voices and rich instrument tones, providing users with an immersive auditory experience and meeting the stringent requirements of professional audio production and high - end audio equipment for sound quality.
Wide - Range Impedance Adaptability	With flexible turns ratio settings, this transformer can accommodate a variety of impedance requirements. Whether it is a low - impedance microphone or a high - impedance power amplifier, the ZXY4030 can achieve efficient audio signal transmission through precise impedance matching, ensuring excellent compatibility among different devices and enhancing the overall performance of the audio system.
High Reliability and Stability	Supported by a robust structure and high - quality materials, the ZXY4030 demonstrates excellent resistance to mechanical vibrations and environmental interference. It maintains stable performance under diverse usage environments and working conditions, reducing the risk of audio quality degradation or system downtime caused by equipment failures, thus providing users with a reliable audio solution.
Signal Transmission and Isolation	The ZXY4030 can transmit audio signals from one circuit to another while achieving electrical isolation. This isolation function effectively prevents interference between different circuits, protects equipment from electrical noise and surge voltages, and improves the safety and stability of the audio system.
Impedance Transformation	By adjusting the turns ratio, it enables the transformation of input and output impedances, allowing audio devices with different impedances to match each other and achieve optimal signal transmission. Appropriate impedance transformation reduces signal reflection and loss during transmission, improving the transmission efficiency and power - carrying capacity of audio signals.
Signal Amplification and Attenuation	In certain audio circuits, the ZXY4030 can also function as a signal amplifier or attenuator. According to actual requirements, the amplitude of audio signals can be adjusted by changing the connection mode and turns ratio of the windings, meeting the signal level requirements of different audio devices.

Customized Model ZXY4030 Permalloy Audio Transformer With Metal Shield Pins 5+4 0

3.Other Recommended Produtcs

4.Company Profile
