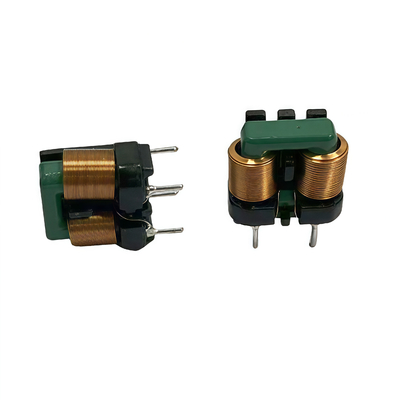

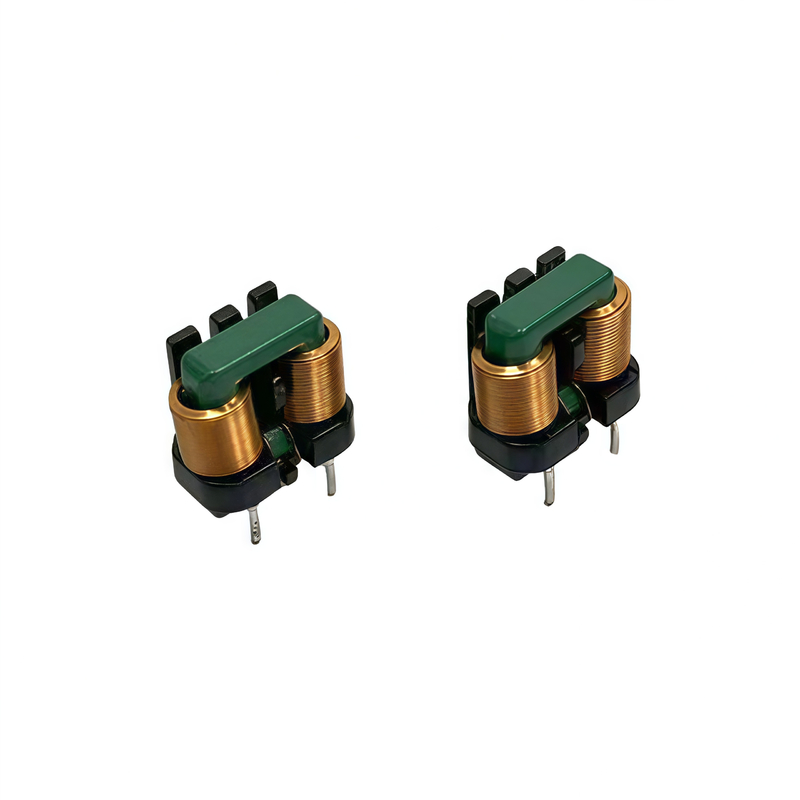

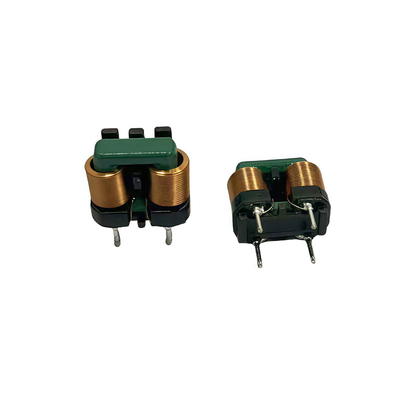

Customized Vertical Common Mode Chokes Line Filter 8mH for Noise Filter

Brand Name:	ZXY
Model Number:	ZXY
MOQ:	Negotiable
Price:	Negotiable
Packaging Details:	Carton
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China,Shenzhen City.

Certification:

RoHS、ISO9001、CE

Application:

Variable Consumer Electronic Products

Brand Name:

ZXY

Name:

Vertical Common Mode Chokes Line Filter

Material Core:

Mn-Zn Ferrite Core

Quality:

100% Testing

Place Of Origin:

Huizhou.China

Highlight:

Customized Common Mode Chokes

8mH Common Mode Chokes

Line Filter Common Mode Chokes

Product Description

Customized Vertical Common Mode Chokes Line Filter 8mH for Noise Filter

1.Product Description

The Vertical Common Mode Chokes Line Filter is a vital component in electronic circuits, designed to address the prevalent issue of common - mode interference. It features a vertical installation structure, which not only optimizes space utilization on printed circuit boards but also facilitates integration in high - density circuit designs. This filter operates on the principle of using a special winding arrangement around a high - permeability magnetic core, typically made of ferrite. When common - mode currents flow through the filter, the magnetic fields generated by the windings interact in a way that creates a high impedance path for these unwanted signals, effectively suppressing them. Meanwhile, differential - mode signals, which carry the actual information, experience minimal impedance and can pass through smoothly due to the filter's well - designed structure that ensures low differential - mode loss. With its ability to provide stable common - mode suppression across a broad frequency spectrum, from low - frequency power - supply lines to high - frequency signal paths, this filter plays a crucial role in enhancing the electromagnetic compatibility of various electronic devices. It finds extensive applications in switch - mode power supplies, where it curbs the generation and propagation of common - mode noise, as well as in a wide range of electronic equipment like computers, communication devices, medical equipment, and automotive electronics. By reducing electromagnetic interference, it safeguards the proper functioning of these devices and promotes reliable signal transmission, making it an indispensable element in modern - day electronics.

2.Performance Characteristics

Performance Feature	Description
Compact Vertical Structure	Features a vertical installation design. This not only optimizes space on printed circuit boards, allowing for more components to be placed in a limited area, but also enables seamless integration in high - density circuit designs, facilitating the miniaturization of electronic devices.
High - permeability Magnetic Core	Utilizes a magnetic core, usually made of ferrite, with high magnetic permeability. This core enhances the filter's inductance, enabling it to generate strong magnetic fields. These fields play a crucial role in impeding the flow of common - mode currents, thus improving the filter's effectiveness in suppressing common - mode interference.
Effective Common - mode Suppression	When common - mode currents pass through the filter, the magnetic fields generated by the windings interact. This interaction creates a high - impedance path specifically for common - mode signals. As a result, these unwanted signals are effectively blocked, significantly reducing electromagnetic interference in the circuit.
Low Differential - mode Loss	For differential - mode signals that carry the actual information, the filter's well - designed structure ensures minimal impedance. This allows differential - mode signals to pass through smoothly with very low loss, maintaining the integrity and quality of the transmitted data.
Wide - frequency Compatibility	Capable of providing stable common - mode suppression across a broad frequency spectrum. Whether it's in low - frequency power - supply lines or high - frequency signal paths, the filter can effectively perform its function, adapting to the diverse frequency requirements of different electronic applications.
