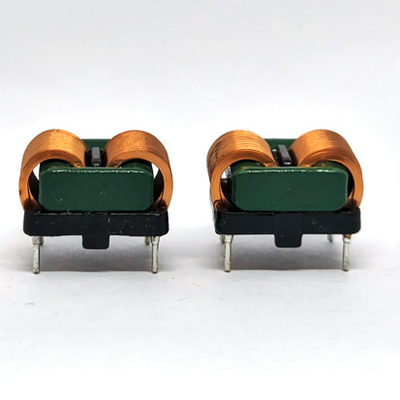

4 Layer 6.3uh 13a Common Mode Inductors Flat Copper Coil Induction
  • name
  • name

4 Layer 6.3uh 13a Common Mode Inductors Flat Copper Coil Induction

Brand Name: ED8
Model Number: T11212-20mH Horizontal
MOQ: Negotiable
Price: Negotiable
Packaging Details: 100pieces / Carton size:380mm*325mm*345mm
Payment Terms: T/T paypal xtransfer
Detail Information
Product Description
Detail Information
Place of Origin:
China,shenzhen city.
Certification:
RoHS,ISO9001-2001
Features:
High Performance
Encapsulation:
Horizontal
Inductance Value:
10mH-20mH Customizable
Size:
Customizable
Current:
5-10A Or Customizable
Inductance:
8-100uh Or Customizable
Frequency - Self Resonan:
100kHz/1.0V Or Customizabl
Supply Ability:
2000K-pcs/month
Highlight:

13a Common Mode Inductor

,

4 Layer copper coil inductor

,

6.3uh Common Mode Inductor

Product Description

Flat Copper Coil Induction 4 Layer 6.3uh 13a Common Mode Inductors



The inductance of flat coil is an inductor of flat enameled wire coil, which consists of a coil part, the connecting feet extending at both ends of the coil part, and a magnetic guide seat and cover body formed by die casting of iron powder;



Characteristics and application of flat wire inductance

1 Use flat wire.

2 shielded inductance structure.

3 The DC resistance of the same size is the lowest.

4 It can ensure smooth decrease of current-resistant inductance value.



4 Layer 6.3uh 13a Common Mode Inductors Flat Copper Coil Induction 04 Layer 6.3uh 13a Common Mode Inductors Flat Copper Coil Induction 14 Layer 6.3uh 13a Common Mode Inductors Flat Copper Coil Induction 24 Layer 6.3uh 13a Common Mode Inductors Flat Copper Coil Induction 34 Layer 6.3uh 13a Common Mode Inductors Flat Copper Coil Induction 4

Product Size:

Encapsulation: Vertical
Inductance value: 10-20mH
Size(Length X height): 21mmx16.5mmx13mm
Current: 5-10A



4 Layer 6.3uh 13a Common Mode Inductors Flat Copper Coil Induction 5





Tags:

High Current Common Mode Inductor

Magnetic Ring Common Mode Inductor

Flat Wire Common Mode Filter
