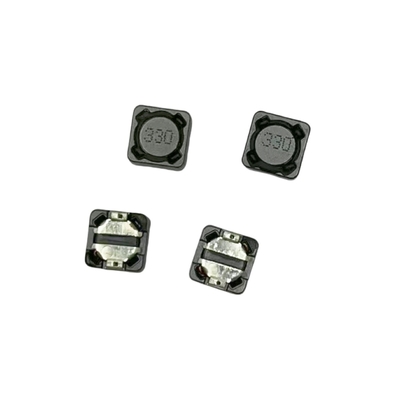

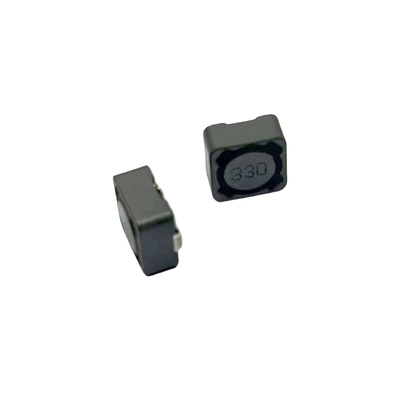

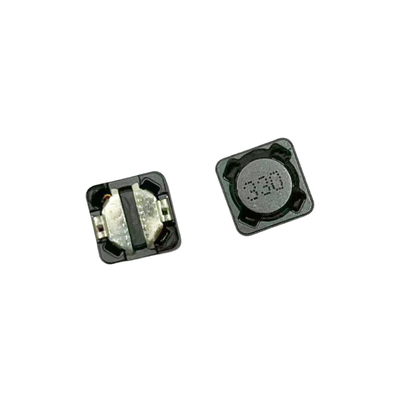

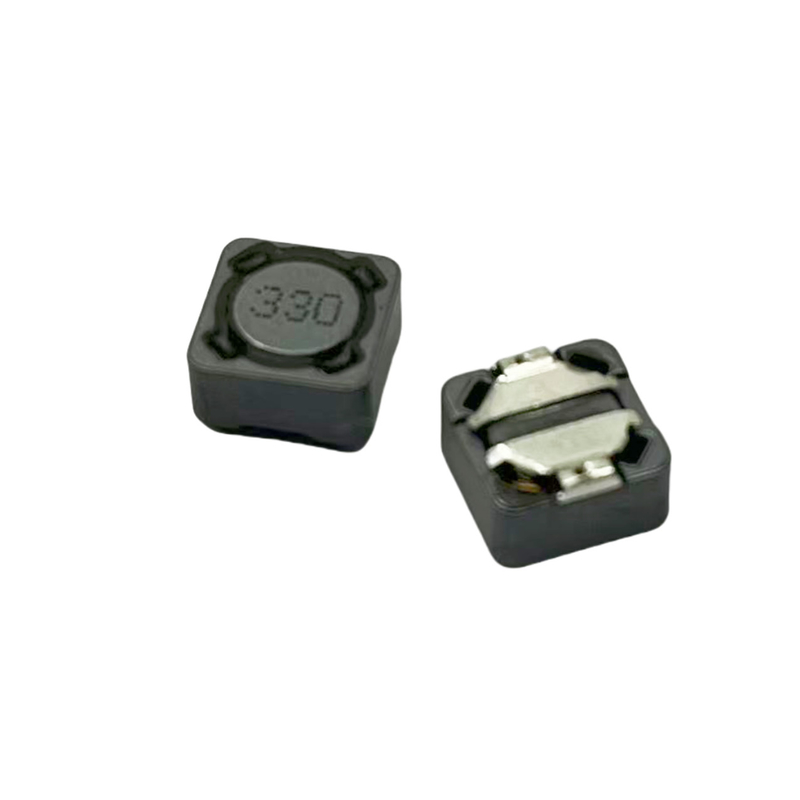

330M 33uH Ferrite Core SMD Chip Power Inductor High Current Carrying Capacity

1.Product Description

1.Electrical Characteristics
--Stable inductance value: 330M Power SMD Inductors 33μH inductance value can provide a specific electromagnetic induction effect for the circuit, and the inductance value remains relatively stable when certain temperature, current and other operating conditions change, ensuring the consistency of circuit performance.

--Low DC resistance: Low resistance winding materials and optimized design process are used to make the DC resistance as low as possible. Thus, when passing DC current, the power loss is small and less heat is generated, which improves the efficiency of the circuit and reduces the waste of energy.

--High saturation current: Can withstand large currents without saturation, to ensure that the inductor can still maintain normal inductance characteristics in the case of large currents, and will not be saturated and lead to a sharp decline in inductance value, affecting the function of the circuit.

--High Q value: Higher Q value of quality factor means that the ratio of energy storage capacity to energy dissipation capacity of the inductor is larger under the operating frequency, which can store and release energy more efficiently, reduce the loss in the signal transmission process, and improve the performance and stability of the circuit.

2.Physical Characteristics
-Miniaturization: the use of surface mount technology, small package size, suitable for use in high-density printed circuit boards (PCB), to meet the needs of modern electronic products miniaturization, thin and light design needs, to save space for other electronic components.

-Light weight: Due to the small size and relatively light materials used, the weight of the entire inductor is very light and will not add too much weight burden to electronic products, especially for portable devices with strict requirements on weight.

--Good solderability: The pins or pads have good solderability and can be reliably connected to the PCB board, so it is not easy for problems such as false soldering and desoldering to occur during the soldering process, which ensures the quality and reliability of circuit assembly.

3. Environmental characteristics
--Wide operating temperature range: generally can work normally in the temperature range of - 55 ℃ to 125 ℃, to adapt to a variety of harsh operating environments, whether in the high-temperature industrial site or low-temperature outdoor environment, can maintain stable performance.

--Humidity Resistance: It has a certain degree of moisture resistance, can work in the environment of high humidity, to prevent the inductor internal short circuit, corrosion and other problems caused by moisture, to extend the service life.

--Resistant to vibration and shock: with reasonable structural design and firm fixing of internal components, it can withstand a certain degree of vibration and shock, and is not easy to be damaged when the electronic products are subjected to vibration or collision, ensuring the normal operation of the circuit.
