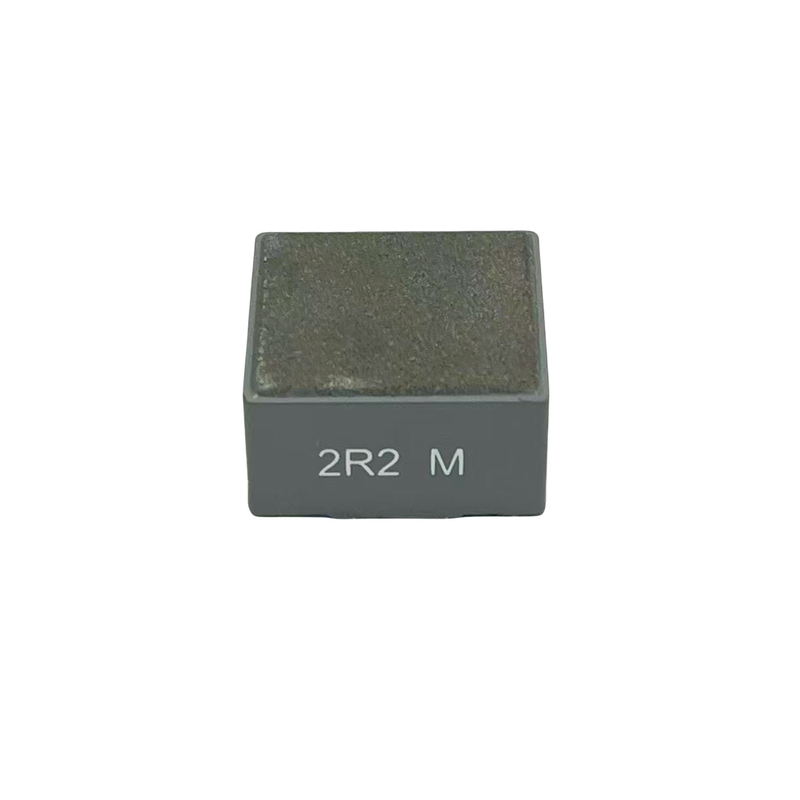

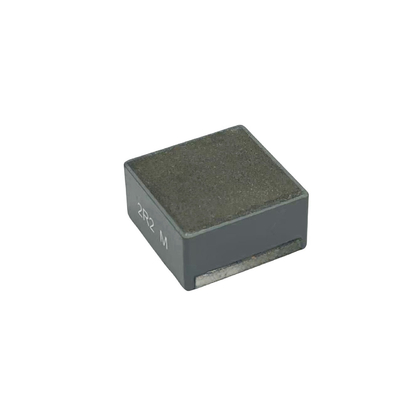

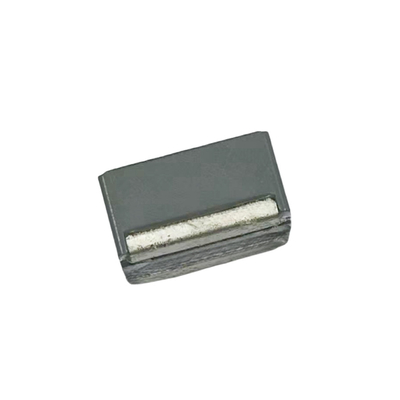

High Current Inductor 2R2 M Molded Chip Inductors 20A Or More

Brand Name:	ZXY
Model Number:	ZXY
MOQ:	Negotiable
Price:	Negotiable
Packaging Details:	Carton
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

RoHS、ISO9001、CE

Features:

Small And Compact Package Design

Product Name:

Molded Chip Inductors High Current Inductor

Model Number:

ZXY-2R2 M

Type:

Molded Chip Inductors

Form Factor:

Square-shaped

Apply For:

SMPS

Highlight:

High Current Molded Chip Inductors

20A Molded Chip Inductors

2R2 M Molded Chip Inductors

Product Description

High Current Inductor 2R2 M Molded Chip Inductors 20A Or More

1.Product Description

Molded Chip Inductors are a common type of surface mount inductor, usually consisting of magnetic material and inductive windings that are externally encapsulated into a solid structure with plastic or epoxy resin. Their encapsulated form provides better mechanical protection and is suitable for high-density, high-reliability circuit designs.

2.Working Principle

Molded Chip Inductors specific working principle steps:
1. Current change: A change in current triggers a change in the magnetic field inside the inductor.
2. Electromagnetic induction: The changing magnetic field generates a reverse electromotive force in the winding according to Faraday's law of electromagnetic induction.
3. Energy storage: Inductors store energy through the magnetic field and resist rapid changes in current.
4. Energy release: When current changes slow down, the stored energy is released to maintain current stability.
5. Feedback regulation: The inductor will continuously adjust the energy storage and release with the change of current to realize the function of current smoothing and filtering.

3.Performance Characteristics

Place of Origin	Huizhou.China
Supplier	Manufacturer
Weight	0.03KG
Strong point	High reliability and stability
Current	High current

High Current Inductor 2R2 M Molded Chip Inductors 20A Or More 0

4.FAQ

Q1: Do you provide service for custom design products?
A: Yes, we have the R&D department for custom designs,welcome to send any of your custom specifications.

Q2: How about the quality?
A: Each pieces 100% tested before shipment. We offer 90-180 days quality assurance.

Q3: What is your lead time for samples and mass orders?
A: Usually 5-10 days for samples and 15-30 days for mass production, depending on the quantity and the raw material stock.

Q4: How about the quality?
A: Each pieces 100% tested before shipment. We offer 90-180 days quality assurance.

5.Company Profile

6.Other Recommended Produtcs
