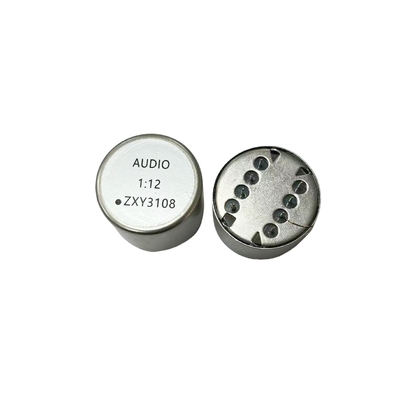

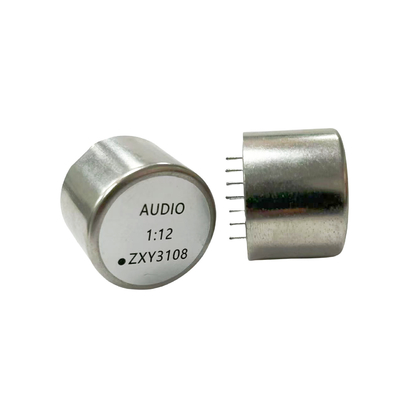

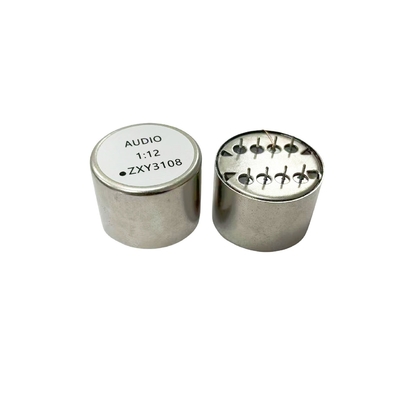

Low Noise 1:12 ZXY3108 Small Permalloy Audio Transformer Fe-Ni Alloy

Brand Name:	ZXY
Model Number:	ZXY-3108
MOQ:	Negotiable
Price:	Negotiable
Packaging Details:	Carton
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

RoHS、ISO9001、CE

Usage:

Audio Signal Transmission

Shape:

Square/Round

Product Name:

1:12 3108 Permalloy Audio Transformer

Impedance Ratio:

Characterization:

High Efficiency

Number Of Pins:

3+4/4+4

Highlight:

Low Noise Permalloy Audio Transformer

1:12 Permalloy Audio Transformer

Fe-Ni Alloy Permalloy Audio Transformer

Product Description

Low Noise 1:12 ZXY3108 Small Permalloy Audio Transformer Fe-Ni Alloy

1.Product Description

The 1:12 3108 Permalloy Transformer is a transformer using Permalloy as the core material, with a ratio of 1:12 and model number 3108. Permalloy is a nickel-iron alloy with high permeability (usually with a nickel content of between 30% and 80%) and has excellent electromagnetic properties. The following is a detailed description of this transformer

Ratio	1:12
Model No	ZXY3108
Core material	Permalloy
Operating Frequency	Suitable for high-frequency applications, usually in the range of tens of kHz to several MHz.
Power Rating	Typically in the range of a few milliwatts to a few watts, depending on the specific design.
Operating temperature range	-40°C to +85°C

2.Characteristics

1. High magnetic permeability
Permalloy has a very high magnetic permeability, which can significantly improve the efficiency of the transformer and reduce energy loss.

2.Low coercivity
Permalloy's low coercivity makes it easy to magnetize and demagnetize, making it suitable for high-frequency applications with fast response time.

3. Low hysteresis loss
Permalloy's hysteresis loss is extremely low, suitable for high-frequency and high-precision applications, and can reduce energy loss.

4. Excellent high frequency performance
Due to Permalloy's high permeability and low loss, the transformer excels in high frequency environments and is suitable for radio frequency (RF) and communications applications.

5. High saturation magnetic induction
Permalloy has a high saturation magnetic induction strength to maintain stable performance in high magnetic fields.

Low Noise 1:12 ZXY3108 Small Permalloy Audio Transformer Fe-Ni Alloy 0
