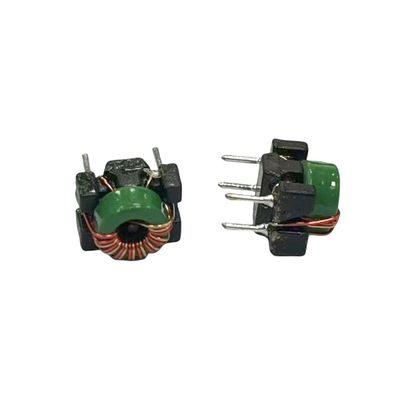

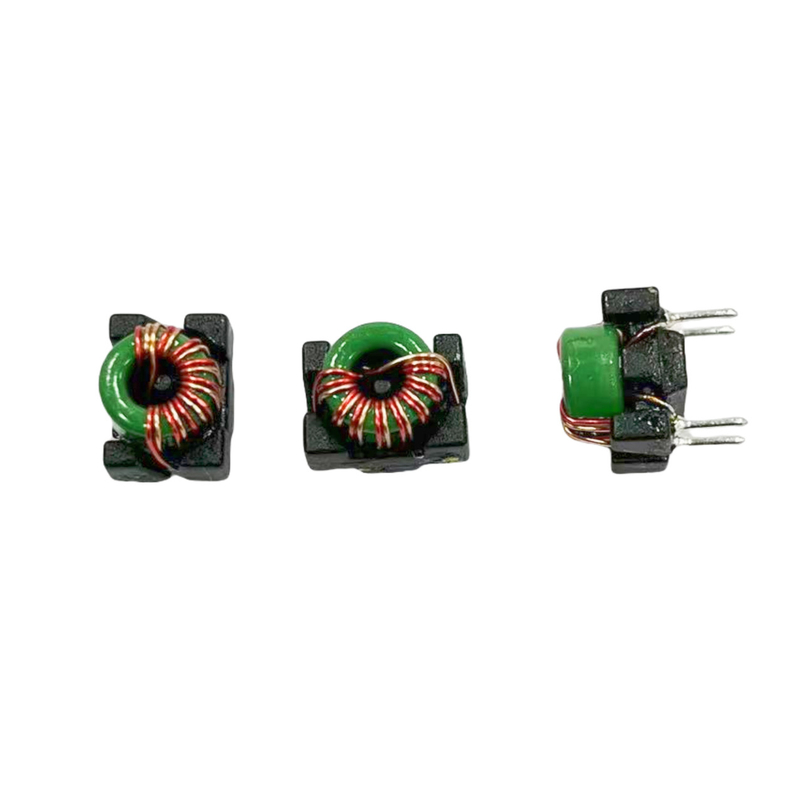

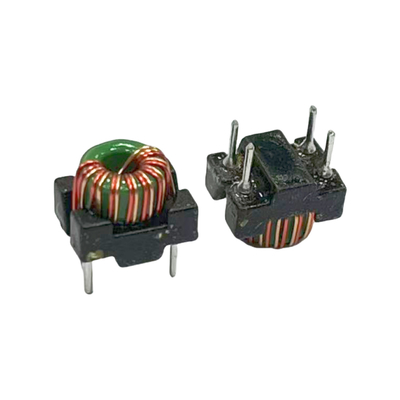

High Current Filtering Effect Magnetic Ring Inductor Common Mode Choke Coils

Brand Name:	ZXY
Model Number:	ZXY
MOQ:	Negotiable
Price:	Negotiable
Packaging Details:	Carton
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

RoHS、ISO9001、CE

Form Factor:

Horizontal

Advantage:

High Inductance

Product Name:

Magnetic Ring Inductor Common Mode Choke Coils

Weight:

0.0006KG

Shape:

Toroidal

Supplier:

Manufacturer

Highlight:

Magnetic Ring Common Mode Inductor

Filtering Effect Common Mode Inductor

High Current Common Mode Inductor

Product Description

High Current Filtering Effect Magnetic Ring Inductor Common Mode Choke Coils

1.Product Description

Common mode choke coil is a very important inductive component, widely used in power supply, communication, audio, automotive electronics and other equipment, the main role is to suppress common mode interference and high frequency noise. Its advantages include efficient noise filtering capability, low power consumption, high adaptability and good anti-interference capability. Its features include wide frequency response, low magnetic leakage, and efficient electromagnetic compatibility. The use of common mode choke coils is almost ubiquitous in modern electronic products, which effectively improves the electrical performance of the equipment and guarantees the stability of the system.

2.Performance Characteristics

Performance	Characteristics Description
Noise Suppression Capability	It can effectively suppress common-mode noise, especially in the high-frequency band, and has a strong shielding effect on the interference of power supply or signal lines.
Inductive properties	Provides a higher inductance value, especially in the high frequency band, and its inductance value increases with frequency, enhancing the noise suppression effect.
Passive components	The common-mode choke coil is a passive component that consumes no additional power, making it suitable for applications where energy efficiency is critical.
Impedance Matching	With good impedance characteristics, it can achieve high impedance in the operating frequency range, thus effectively filtering out high-frequency common-mode interference signals.

3.FAQ

Q1: Do you provide service for custom design products?
A: Yes, we have the R&D department for custom designs,welcome to send any of your custom specifications.

Q2: How about the quality?
A: Each pieces 100% tested before shipment. We offer 90-180 days quality assurance.

Q3: What is your lead time for samples and mass orders?
A: Usually 5-10 days for samples and 15-30 days for mass production, depending on the quantity and the raw material stock.

Q4: How about the quality?
A: Each pieces 100% tested before shipment. We offer 90-180 days quality assurance.
