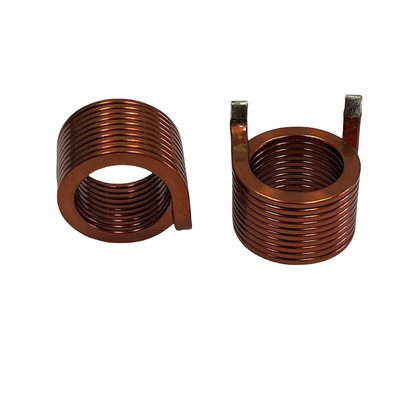

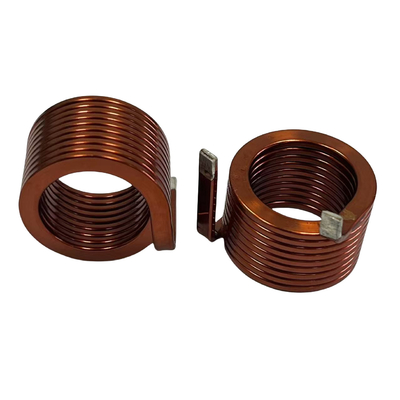

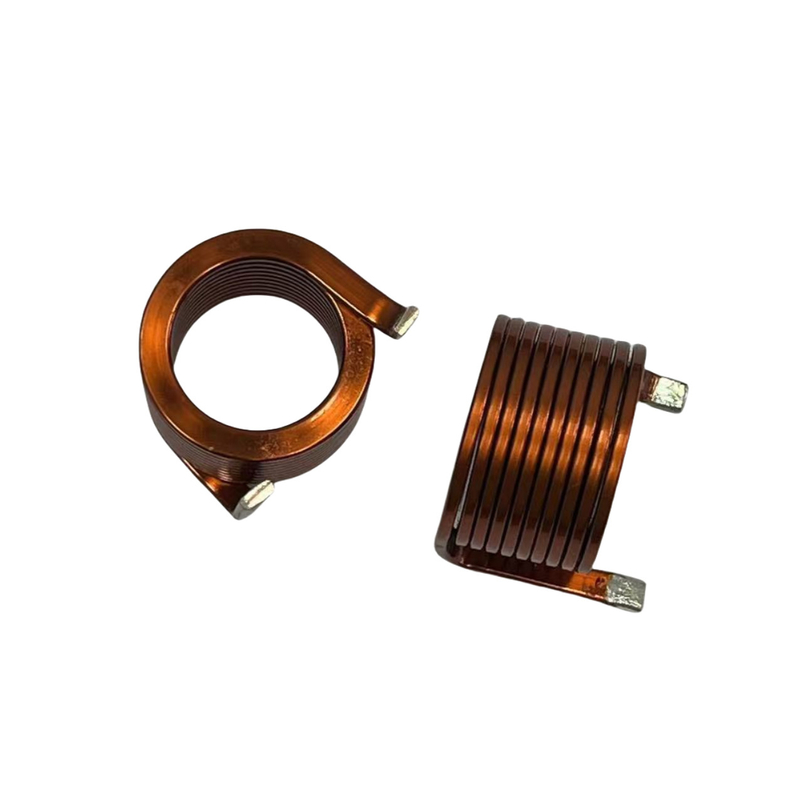

High Current Power Air Core Choke Inductor Flat Wire Induction Filtering Action

Brand Name:	ZXY
Model Number:	ZXY
MOQ:	Negotiable
Price:	Negotiable
Packaging Details:	Carton
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

RoHS、ISO9001、CE

Type:

Air Core Inductors

Keywords:

Air Core Choke Inductor

Form Factor:

Toroidal

Inductance:

Customized

Strong Point:

Non-magnetic Core To Avoid Saturation Effects

Specificities:

Low Loss

Highlight:

Flat Wire Air Core Choke Inductor

High Current Air Core Choke Inductor

Power Air Core Choke Inductor

Product Description

High Current Power Air Core Choke Flat Wire Induction Filtering Action

1.Product Description

Air Coil Inductors vs. Iron Core Inductors

Characteristics	Air Coil Inductors	Iron Core Inductors
Magnetic core	No magnetic core, relies on air to create magnetic field	Uses an iron core or other magnetic material to enhance the magnetic field
Applicable frequency	Suitable for high frequency applications	Suitable for low to medium frequency applications
Inductance	Low inductance, more turns needed to increase inductance	Higher inductance values can be obtained with fewer turns
Loss	Lower eddy current losses and hysteresis losses	Higher hysteresis and eddy current losses, especially in high frequency applications
Dimension	Larger, especially in low-electric induction use	Smaller for applications with limited space
Application	High-frequency filtering, audio equipment, RF communication, power supply	Power supply filtering, transformers, low frequency current applications

2.Working Principle

Air Core Chokes are based on the principles of electromagnetic induction and inductance. The core idea is to store energy by generating a magnetic field through the flow of current through a conductor coil. Unlike iron core inductors, air coil inductors do not have magnetic materials such as iron cores, so their magnetic field is formed entirely by air.

High Current Power Air Core Choke Inductor Flat Wire Induction Filtering Action 0

3.FAQ

Q1: Do you provide service for custom design products?
A: Yes, we have the R&D department for custom designs,welcome to send any of your custom specifications.

Q2: How about the quality?
A: Each pieces 100% tested before shipment. We offer 90-180 days quality assurance.

Q3: What is your lead time for samples and mass orders?
A: Usually 5-10 days for samples and 15-30 days for mass production, depending on the quantity and the raw material stock.

Q4: How about the quality?
A: Each pieces 100% tested before shipment. We offer 90-180 days quality assurance.

4.Company Profile

5.Other Recommended Produtcs

High Current Power Air Core Choke Inductor Flat Wire Induction Filtering Action 6
