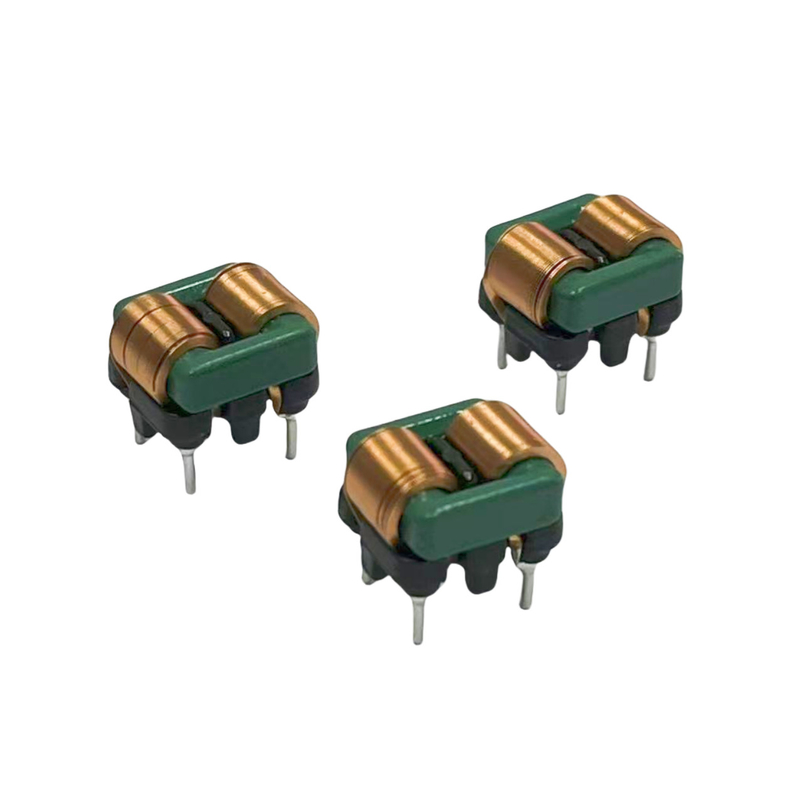

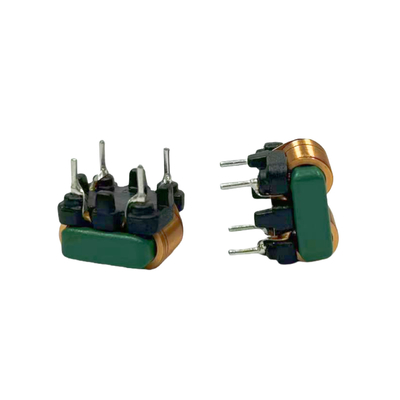

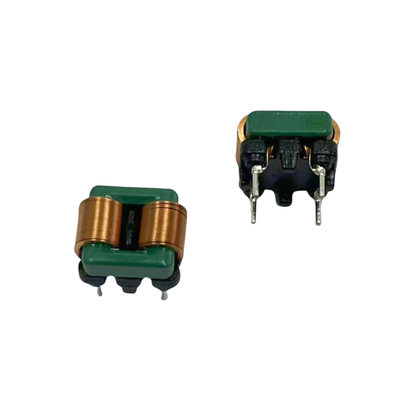

10mH Horizontal Line Filter MnZn Ferrite Flat Wire Copper Coil Inductor

All Category

Chip Inductor

Ms. Chen

rhea@zxycoil.com

+8613554723725

Contact Now

10mH Horizontal Line Filter MnZn Ferrite Flat Wire Copper Coil Inductor

Brand Name:	ZXY
Model Number:	ZXY-TD1010
MOQ:	Negotiable
Price:	Negotiable
Packaging Details:	Carton
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

RoHS、ISO9001、CE

Inductance:

Product Name:

10mH Copper Coil Inductor

Form Factor:

Square

Core Structure:

MnZn Ferrite

Strong Point:

Highly Efficient Energy Transfer

Type:

Common Mode Inductor

Highlight:

Copper Coil Flat Wire Inductor

10mH Flat Wire Inductor

Horizontal Flat Wire Inductor

Product Description

10mH Horizontal Line Filter MnZn Ferrite Flat Wire Copper Coil Inductor

1.Product Description

Characteristics	Description
Inductance	10mH for high frequency applications with moderate inductance requirements.
DC Resistance	Low DC resistance reduces energy loss and improves overall power supply efficiency.
Frequency Response	Excellent high frequency performance for switching power supplies and high frequency circuits, reducing the Skin Effect.
Current Carrying	Capability Capable of handling higher currents, suitable for high power systems, providing high current carrying capacity without excessive warming.

2.Characteristic Advantages

Key advantages of the 10mH Copper Coil Inductor include high efficiency, low resistance, high frequency performance, compact design, low EMI and high current carrying capacity. This makes it particularly suitable for applications such as high-efficiency switching power supplies, DC-DC converters, high-frequency communications and power conversion. Compared to conventional round wire inductors, flat wire inductors offer superior performance, less heat loss and longer life in high frequency, high power environments.

10mH Horizontal Line Filter MnZn Ferrite Flat Wire Copper Coil Inductor 0

3.FAQ

Q1: Do you provide service for custom design products?
A: Yes, we have the R&D department for custom designs,welcome to send any of your custom specifications.

Q2: How about the quality?
A: Each pieces 100% tested before shipment. We offer 90-180 days quality assurance.

Q3: What is your lead time for samples and mass orders?
A: Usually 5-10 days for samples and 15-30 days for mass production, depending on the quantity and the raw material stock.

Q4: How about the quality?
A: Each pieces 100% tested before shipment. We offer 90-180 days quality assurance.

4.Company Profile

5.Other Recommended Produtcs

10mH Horizontal Line Filter MnZn Ferrite Flat Wire Copper Coil Inductor 5
