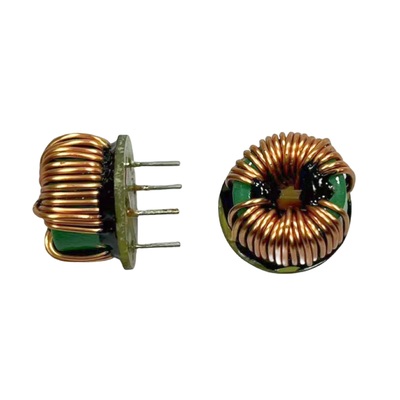

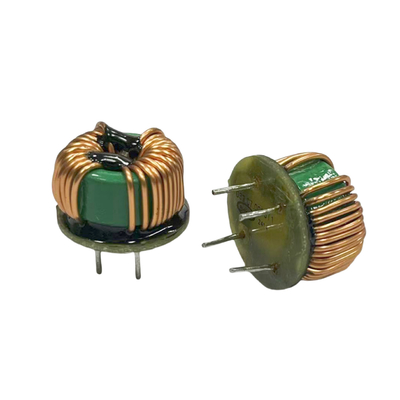

High Inductance Mn-Zn Toroidal Common Mode Choke Inductance For Power Filters

1.Product Description

The Mn-Zn Toroidal Inductor consists mainly of a toroidal core made of manganese-zinc ferrite material and coils wound on the core. The shape and size of the toroidal core determines the overall size and inductance of the inductor. The coils are usually wound from insulated wire, and the choice of turns and wire diameter affects the electrical performance of the inductor.

2.Product Features:

1. High Inductance: Mn-Zn Ferrite material has high permeability, which enables Mn-Zn Toroidal Inductor to realize high inductance value in a small volume.

2. Excellent Electromagnetic Performance: Mn-Zn Ferrite material has low coercivity and high saturation flux density, which enables Mn-Zn Toroidal Inductor to exhibit good electromagnetic performance in both high frequency and low frequency applications.

3. Good Suppression of Electromagnetic Interference: The toroidal structure helps to reduce electromagnetic leakage and improve the electromagnetic compatibility of the inductor.Mn-Zn Toroidal Inductor is commonly used in filtering circuits to suppress electromagnetic interference.

4. Wide Operating Temperature Range: Mn-Zn Toroidal Inductor has a wide operating temperature range, which enables the Mn-Zn Toroidal Inductor to work properly in various harsh environments.

3.Company Profile

4.Our Service

1. 100% test before shipment
2.Provide free samples
3.Provide new design for customers

Customized.
1. inductance;

2. input voltage and output voltage, output current.

3. turns of ratio ;

4. packing method.

5.Mounting Dimensions

6.Safety Requirements

7.Product Applications

The price of a product is mainly determined by the product parameters, the complexity of the product process, the raw material and the batch

size.

5.FAQ

Q1: Do you provide service for custom design products?
A: Yes, we have the R&D department for custom designs,welcome to send any of your custom specifications.

Q2: How about the quality?
A: Each pieces 100% tested before shipment. We offer 90-180 days quality assurance.

Q3: What is your lead time for samples and mass orders?
A: Usually 5-10 days for samples and 15-30 days for mass production, depending on the quantity and the raw material stock.

Q4: How about the quality?
A: Each pieces 100% tested before shipment. We offer 90-180 days quality assurance.
