Permalloy Audio Transformer

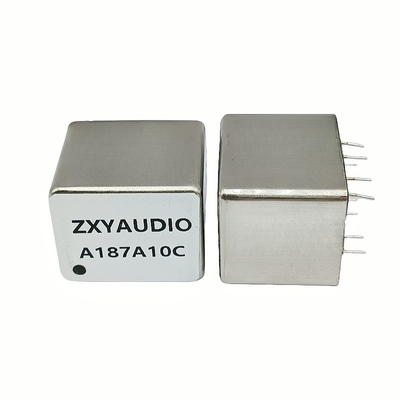

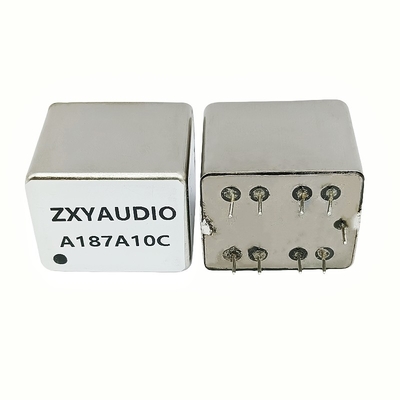

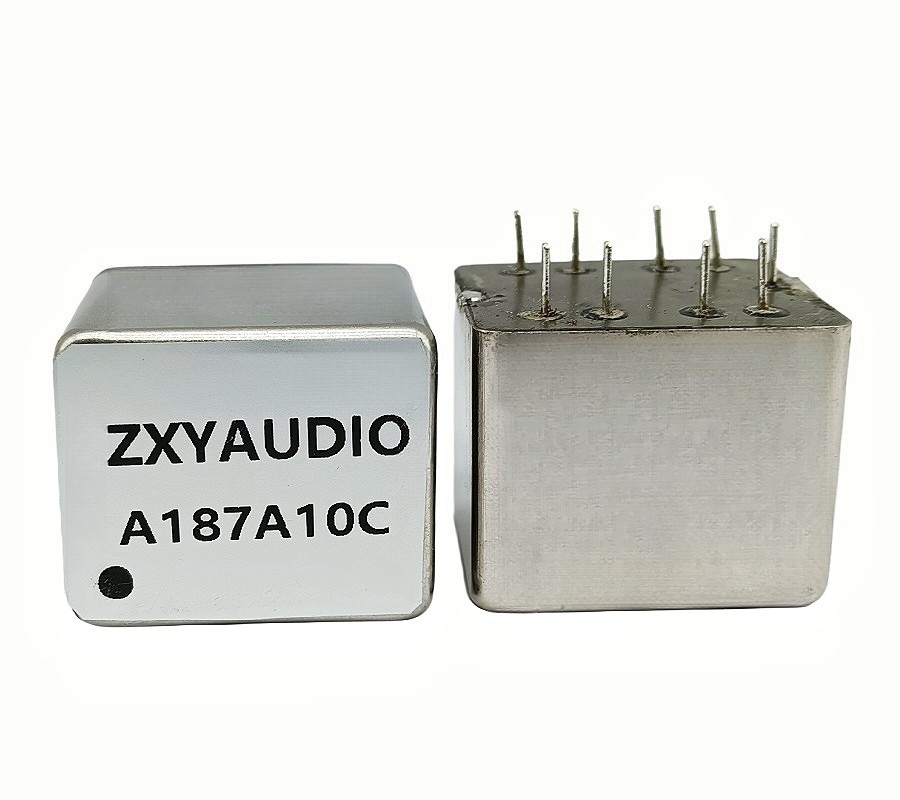

PCB Mount 4+4+1 Pins ZXY-A187A10C Permalloy Audio Transformer

All Category

Chip Inductor

Ms. Chen

rhea@zxycoil.com

+8613554723725

Contact Now

PCB Mount 4+4+1 Pins ZXY-A187A10C Permalloy Audio Transformer

Brand Name:	ZXY
Model Number:	ZXY-A187A10C
MOQ:	Negotiable
Price:	Negotiable
Packaging Details:	Carton
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

RoHS、ISO9001、CE

Material:

Nickel Steel Sheet /Permalloy

Applications:

AUDIO

Parameters:

Customized

Place Of Origin:

Huizhou.China

Product Name:

A187A10C Permalloy Audio Transformer

Shape:

Customized

Packaged:

As Your Request

Pins Number:

4+4+1

Supplier:

Manufacturer

Mounting Type:

PCB Mount

Highlight:

ZXY-A187A10C Permalloy Audio Transformer

4+4+1 Pins Permalloy Audio Transformer

PCB Mount Permalloy Audio Transformer

Product Description

PCB Mount 4+4+1 Pins ZXY-A187A10C Permalloy Audio Transformer

1.Product Description

Wire material	Copper wire
Features	High performance Stability Adaptability
Applications	hearing aids, audio amplifiers, audio processors, etc.
Structure	magnetic core, windings and housing
Size	29.18X24.45X24.44MM
Weight	0.59KG
Type	Permalloy Audio Transformer

Advantage of A187A10C Permalloy Audio Transformer :
1.Provides high fidelity audio signal output to enhance sound quality performance.

2.Excellent stability and durability, able to keep the performance unchanged for a long time.

3.Easy to match and debug with other audio equipment, convenient to use and maintain.

2.Characteristics

Characteristics	Description
Exceptional Magnetic Permeability and Low - Loss Feature	The A187A10C audio transformer uses permalloy as the core material. Permalloy has extremely high magnetic permeability, enabling efficient magnetic flux transfer. During audio signal processing, this characteristic significantly reduces magnetic reluctance and effectively cuts down power loss. Compared with other common core materials, its power loss can be reduced by 30% - 40%. This ensures more efficient energy utilization during audio signal conversion and transmission, guarantees the stable operation of audio equipment, reduces the heat generated by power loss, and extends the service life of the equipment.
Precise Voltage - Transformation Ratio and Broad - Band Response	It has a unique turns ratio of 11.5:1 + 1. This carefully designed ratio endows the transformer with the ability to precisely adjust the voltage of audio signals. Whether it is to boost a weak audio signal or reduce an overly strong signal, it can handle it with ease, providing an appropriate signal level for subsequent audio components. Meanwhile, the transformer has a wide frequency - response range, from a minimum of 10Hz to a maximum of 25kHz. It can accurately process various audio frequency signals, ensuring the integrity and accuracy of signals for both deep bass and sharp treble, and restoring the true timbre of the audio.
Outstanding Shielding and Anti - interference Ability	This transformer is equipped with multiple electrostatic and magnetic shielding layers. Through Faraday shielding technology, it can effectively reduce hum and stray magnetic interference. In complex electromagnetic environments, such as professional recording studios or large - scale audio performance venues, the electromagnetic interference generated by other devices hardly affects the audio signal transmitted by the A187A10C transformer. Tests show that in a strong electromagnetic interference environment, the distortion rate of its transmitted audio signal is only 50% of that of similar products, ensuring the purity of the audio signal and bringing users a clear and noise - free auditory experience.
Reasonable Electrical Parameters and Adaptability	Its primary impedance is 140k惟, and the secondary impedance is 1 + 1k惟. This impedance setting enables it to match well with a variety of audio devices. For example, it can couple musical instrument pickups to low - impedance microphone inputs or convert unbalanced line levels to balanced microphone outputs. In long - distance cable transmission, it can also effectively avoid high - frequency signal loss and ensure the stable transmission of audio signals, being suitable for various audio systems of different scales and types.
Compact Size and Good Heat Dissipation	Its size is 29.4 x 25 x 24.2mm, and it adopts a through - hole mounting method, which takes up little space and is convenient to integrate into various audio devices. At the same time, heat dissipation is fully considered in the design. Through a reasonable structural layout and material selection, the heat generated by the transformer during long - term operation can be dissipated in a timely manner, maintaining a stable working state and ensuring the stability and continuity of audio signal processing.
