High Inductance Toroidal Common Mode Choke Coil Inductor For EMC Filters

Brand Name:	ZXY
Model Number:	ZXY-53mh
MOQ:	Negotiable
Price:	Negotiable
Packaging Details:	1000pieces / Carton size:380mm325mm345mm
Payment Terms:	T/T,Paypal

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen,China

Certification:

RoHS,ISO9001,CE

Model Name:

Magnetic Ring Inductor

Current:

High Current

Supplier Type:

Original Manufacturer

Application:

Various Electronic Equipments

Material Of Wire:

100% Copper

Supply Ability:

200K-pcs/month

Highlight:

High Inductance Common Mode Inductor

EMC Filters Common Mode Inductor

Toroidal Common Mode Inductor

Product Description

High Inductance Toroidal Common Mode Choke Coil Inductor For EMC Filters

About this product

Common mode Inductor, also known as common mode choke, is commonly used in computer switching power supplies to filter common mode electromagnetic interference signals. In the board design, the common mode inductor also acts as an EMI filter to suppress theelectromagnetic radiation generated by the high-speed signal line from radiating outward.

Compact Size — The smaller size of Toroidal Inductors allows for excellent efficiency while maintaining top level
performance.

Lower Cost — With smaller sizes that use less raw materials, Toroidal Inductors are a highly economical choice.
Efficient Design — Inductor designers can achieve shorter length of turn with smaller-sized Toroidal Inductors using less cooper
wire and with no bobbin as with E-core designs.

Product Description

Type	Magnetic ring inductor
Application	various electronic equipments
Brand	ZXY
Feature	High current
Operating Temperature	-40~+120℃
Shape	Toroidal Shape
Advantage	High inductance,High Current
Certifications	RoHS, CE, ISO9001
Packing	Plastic Tray +Carton Box

Features

Pure copper coil
High temperature resistant copper wire, long service life, high working efficiency and good reliability.

Uniform winding
High saturation induction strength, good current superposition perfor-mance, lead-free products.

Anti interference
Small working frequency impedance,large interference frequency impedance and good thermal stability.

Black glue reinforced fixation
Strong drop impact resistance and dura-bility. Strong solderability and excellent end face strength.

Application:

Automotive products, DC TO DC power supply, mobile power supply, digital equipment, communication equipment, electrical equipment, military equipment, medical equipment and other equipment.

Product Pictures

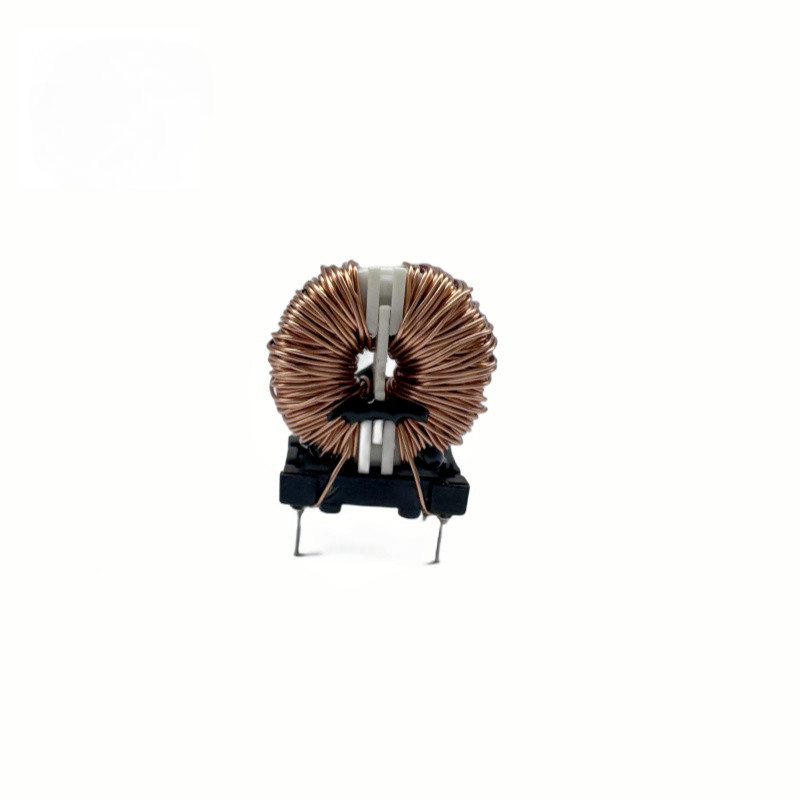

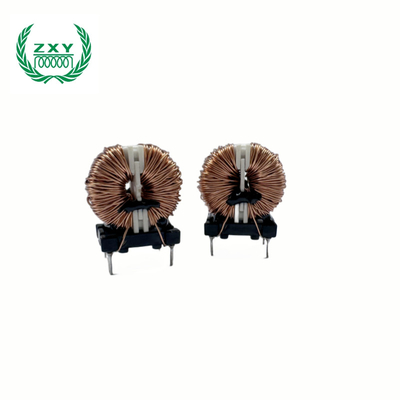

High Inductance Toroidal Common Mode Choke Coil Inductor For EMC Filters 0

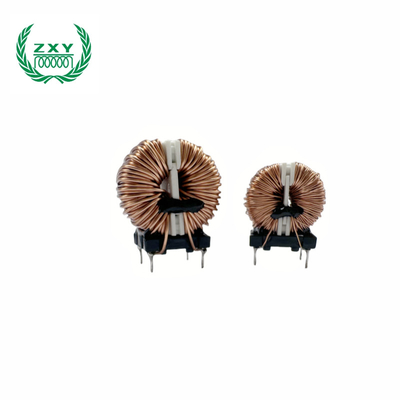

High Inductance Toroidal Common Mode Choke Coil Inductor For EMC Filters 2

FAQ

Q: Do you provide service for custom design products?
A: Yes, we have the R&D department for custom designs,welcome to send any of your custom specifications.

Q: How about the quality?
A: Each pieces 100% tested before shipment. We offer 90-180 days quality assurance.

Q: What is your lead time for samples and mass orders?
A: Usually 5-10 days for samples and 15-30 days for mass production, depending on the quantity and the raw material stock.

Q: How about the quality?
A: Each pieces 100% tested before shipment. We offer 90-180 days quality assurance.

Tags:
