Three-Phase Common Mode Choke High Current High Power Toroidal Coil Inductor For Energy Storage Inverter

Brand Name:	ZXY
Model Number:	ZXY-three phases
MOQ:	Negotiable
Price:	Negotiable
Packaging Details:	1000pieces / Carton size:380mm325mm345mm
Payment Terms:	T/T,Paypal

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen,China

Certification:

RoHS,ISO9001,CE

Model Name:

3 Phases Common Mode Choke Inductor

Coil Structure:

TOROIDAL

Current:

Supplier Type:

Original Manufacturer

Application:

Photovoltaic Inverter, Energy Storage Inverter

Supply Ability:

200K-pcs/month

Highlight:

High Current Common Mode Choke

Toroidal Coil Common Mode Choke

High Power Toroidal Coil Inductor

Product Description

Three-Phase Common Mode Choke High Current High Power Toroidal Coil Inductor

About this product

High Efficiency and Stability: The High-Efficiency Three-Phase Common Mode Choke High Current High Power Toroidal Coil Inductor offers high stability and efficiency,
Customized Options: This product allows for customized options, including MOQ of 100, packing, size, tolerance, and price
Wide Operating Temperature Range: The inductor operates within a wide temperature range of -40°C to +130°C,
Certification and Compliance: The product meets international standards, including ISO9001, ISO14001, ROHS, and REACH,
Compact Size and Energy Savings: The compact size of the inductor enables easy integration into various systems, while its high efficiency leads to energy savings.

Product Description

Type	DIP choke power inductor
Application	Switching Power Supply, Inverter, UPS Power, Radio
Brand	ZXY
Feature	High current
Operating Temperature	-40~+120℃
Resistance Tolerance	±15%mΩ
Material	Enamelled Wire
Shape	Toroidal Shape
Advantage	Quick Heat Dissipation
Certifications	RoHS, CE, ISO9001
Packing	Plastic Tray +Carton Box

Features

(1).Excellent inhibitory effect on interference,and exhibits no resonance insertion loss characteristics in a wide frequency range;

(2). With high anti-interference stability,anti-RF interference and burst signal;

(3).Low magnetic loss,high saturation current.

Dimensions and Schematic

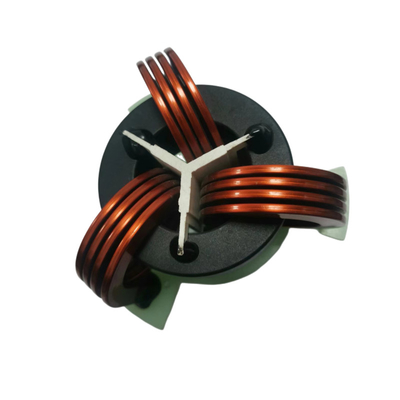

Three-Phase Common Mode Choke High Current High Power Toroidal Coil Inductor For Energy Storage Inverter 0

Product Pictures

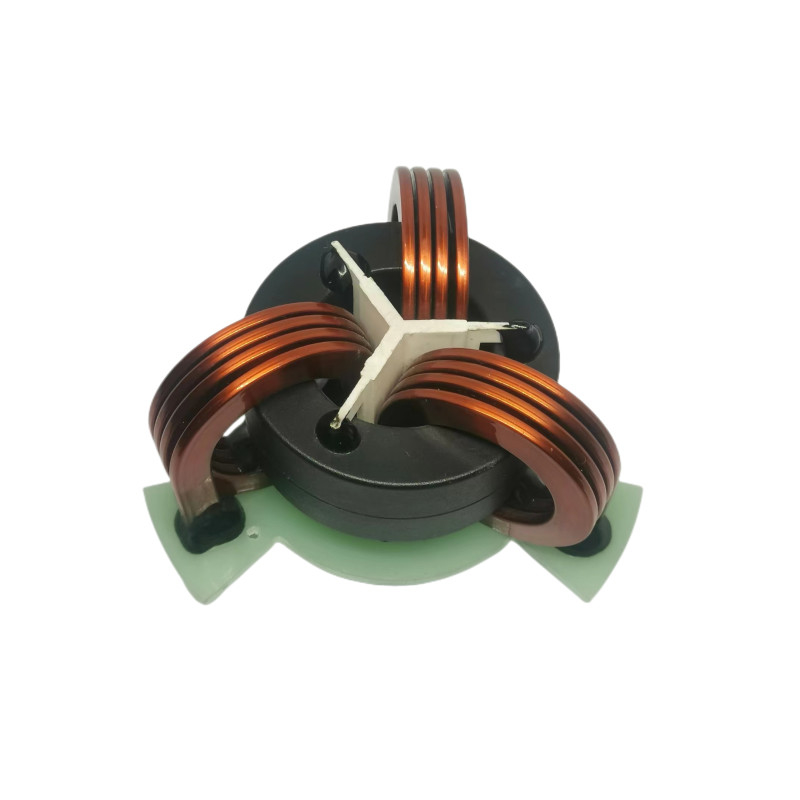

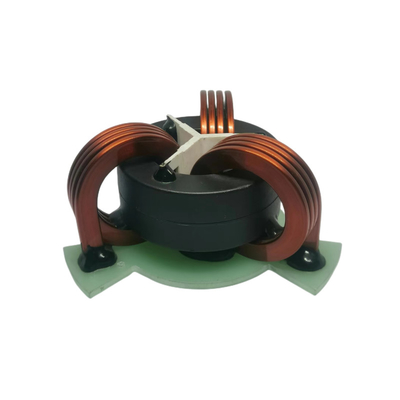

Three-Phase Common Mode Choke High Current High Power Toroidal Coil Inductor For Energy Storage Inverter 1

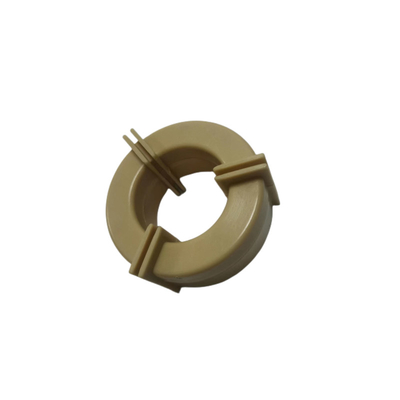

Three-Phase Common Mode Choke High Current High Power Toroidal Coil Inductor For Energy Storage Inverter 3

FAQ

Q: Do you provide service for custom design products?
A: Yes, we have the R&D department for custom designs,welcome to send any of your custom specifications.

Q: How about the quality?
A: Each pieces 100% tested before shipment. We offer 90-180 days quality assurance.

Q: What is your lead time for samples and mass orders?
A: Usually 5-10 days for samples and 15-30 days for mass production, depending on the quantity and the raw material stock.

Q: How about the quality?
A: Each pieces 100% tested before shipment. We offer 90-180 days quality assurance.
