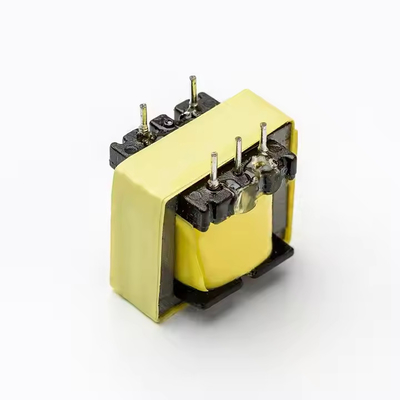

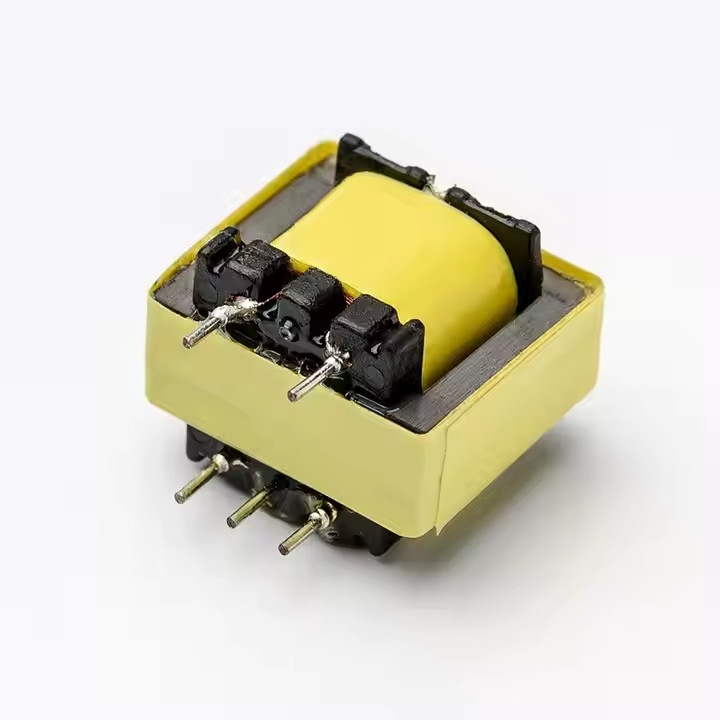

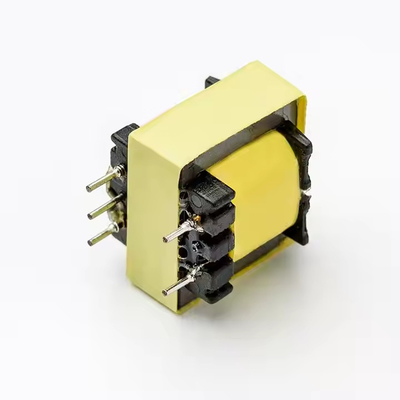

EI16 Audio Isolation Transformer for High Power Supply Drive ±20% Tolerance

All Category

Chip Inductor

Ms. Chen

rhea@zxycoil.com

+8613554723725

Contact Now

EI16 Audio Isolation Transformer for High Power Supply Drive ±20% Tolerance

Brand Name:	ZXY
Model Number:	EI16
MOQ:	Negotiable
Price:	Negotiable
Packaging Details:	0.150 kg 15X10X6 cm
Payment Terms:	T/T ,paypal transfer

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen,China

Certification:

RoHS,ISO9001,CE

Usage:

High Power Supply Drive

Other Name:

EI16 Audio Isolation Transformer

Number Of Phases:

Single Phase

Operating Temperature:

-40℃ ~ 125℃

Application:

Various Electronic Devices

Tolerance:

Coil Structure:

TOROIDAL

Supply Ability:

1000K-pcs/month

Highlight:

±20% Tolerance Audio Isolation Transformer

Single Phase Audio Isolation Transformer

Product Description

EI16 Audio Isolation Transformer for High Power Supply Drive ±20% Tolerance

1.Product Description

EI16 Audio Isolation Transformer is a transformer designed specifically for audio signal isolation. It adopts an EI16 iron core structure and has efficient energy transmission and excellent signal isolation capabilities. Its core components include a high permeability EI16 iron core, primary and secondary coils wound with high-purity copper wire, and high-quality insulation materials. The iron core is usually made of silicon steel sheets or Permalloy to ensure low loss and high magnetic permeability; The coil adopts precision winding technology to reduce resistance and energy loss; Insulation materials provide electrical isolation to prevent short circuits and leakage.
In terms of manufacturing process, the EI16 audio isolation transformer adopts strict winding technology and layered insulation design to ensure high fidelity and low distortion of signal transmission. Its compact design and lightweight structure make it easy to integrate into various audio devices, while providing excellent thermal stability and durability.
This transformer is widely used in professional audio equipment, recording studio equipment, audio systems, and broadcasting equipment, mainly for signal isolation, noise suppression, and impedance matching. Its advantages include high fidelity sound quality, wide frequency response (20Hz-20kHz), low noise and interference suppression capabilities, and efficient signal transmission. In addition, its sturdy structure and reliable performance keep it stable during long-term use.

2.Feature

Feature	Description
Efficient Magnetic Core	Utilizes an EI16-shaped core, typically made of high-quality magnetic materials like silicon steel. This core offers a closed magnetic path, minimizing magnetic leakage and enabling efficient transfer of magnetic flux, which is crucial for accurate audio signal transmission.
Electrical Isolation	Provides excellent electrical isolation between the primary and secondary windings. This effectively eliminates ground loops, preventing unwanted electrical noise and interference from degrading the audio quality. It ensures a cleaner and more pristine audio output.
Compact Size	With its EI16 dimensions, it is relatively compact in size. This makes it suitable for applications where space is limited, such as in small audio devices, compact audio interfaces, or densely populated circuit boards.
Wide Frequency Response	Can handle a broad range of audio frequencies, usually covering the entire audible spectrum (from low bass frequencies to high treble frequencies). It accurately reproduces audio signals across this range without significant attenuation or distortion, maintaining the integrity of the sound.
Low Distortion	Designed to introduce minimal distortion to the audio signal. The high-quality core and winding construction help in preserving the original waveform of the audio, resulting in a more natural and faithful sound reproduction.
Good Impedance Matching	May offer specific impedance ratios between the primary and secondary sides, allowing for effective impedance matching in audio circuits. This ensures efficient power transfer and minimizes signal reflections, enhancing the overall performance of the audio system.
Reliable Construction	Built with durable materials and a robust design. It can withstand normal operating conditions, including temperature variations and mechanical vibrations, ensuring long-term reliability and consistent performance in various audio applications.
Easy Installation	Features a user-friendly design that simplifies the installation process. It may have standard pin configurations or mounting options that are compatible with common circuit board layouts, making it accessible for both professional audio engineers and DIY enthusiasts.

EI16 Audio Isolation Transformer for High Power Supply Drive ±20% Tolerance 0

EI16 Audio Isolation Transformer for High Power Supply Drive ±20% Tolerance 3
