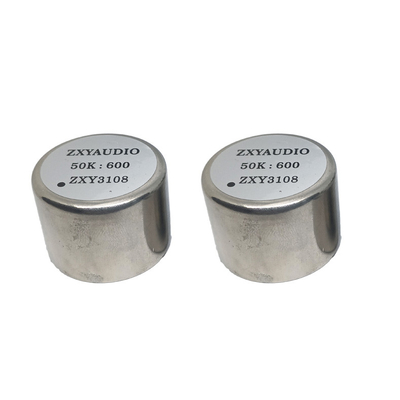

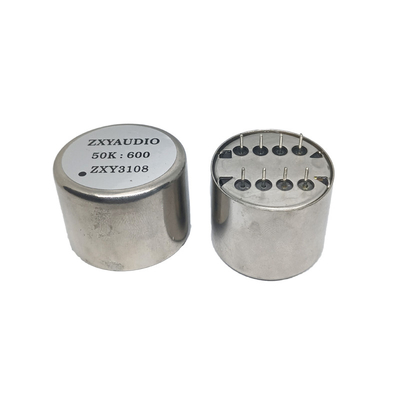

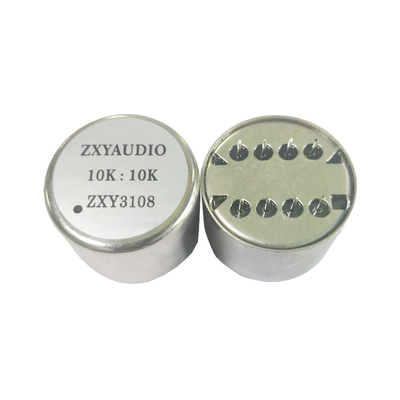

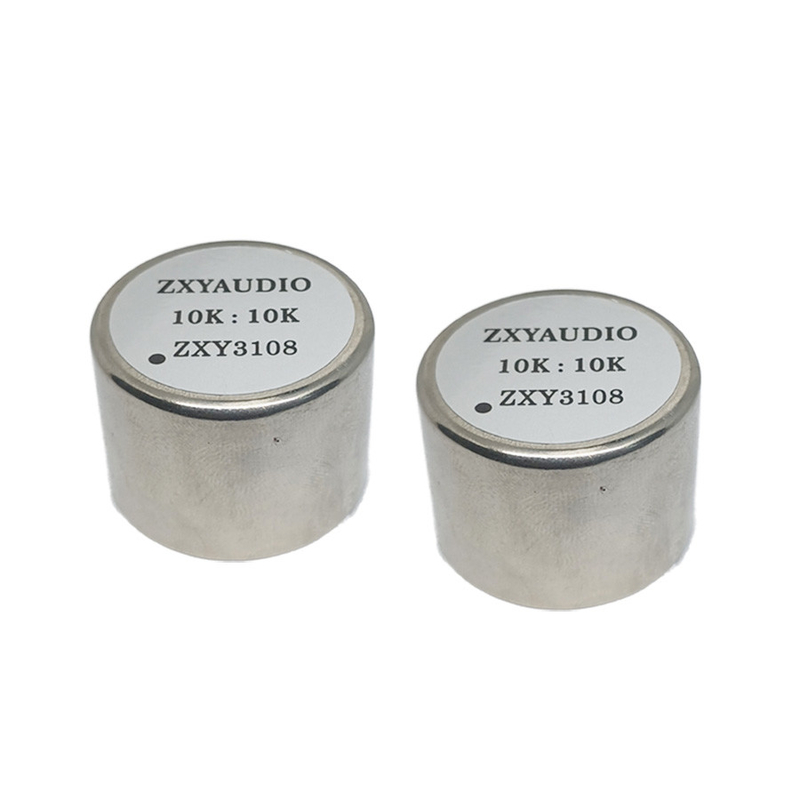

3108 Round Toroidal Coil Permalloy Audio Isolation Transformer 10K:10K 50K:600

 1.Product Description

The 3108 50K:600 10K:10K Permalloy Audio Isolation Transformer is a high - performance device tailored for audio applications. It features unique turns ratios of 50K:600 and 10K:10K, enabling it to efficiently step - up or step - down audio signals as required. This is crucial for achieving optimal impedance matching between different audio components, such as microphones, amplifiers, and speakers, thus ensuring minimal signal loss and distortion during transmission. The core of this transformer is made of permalloy, a nickel - iron alloy renowned for its high magnetic permeability. This material significantly enhances the transformer's ability to transfer magnetic flux, reducing magnetic reluctance and further minimizing power losses. In audio systems, its primary function is isolation. It effectively separates audio equipment from electrical noise sources, which is particularly important in professional audio setups like recording studios, where a clean and clear audio signal is essential. By preventing electrical interference from infiltrating the audio path, it guarantees that the audio reproduced is of the highest quality, faithfully representing the original sound and providing an immersive auditory experience for listeners.

2.Performance Characteristics

1.Flexible and precise ratio design
The unique 50K:600 and 10K:10K ratios allow flexible and precise step-up or step-down operation of audio signals according to the actual needs of the audio system. This feature enables optimal impedance matching between different audio components in complex audio systems. For example, a low impedance microphone signal can be boosted to a high impedance level suitable for a preamplifier through the 50K:600 ratio, or a 10K:10K ratio can be utilized in the power amplification process to ensure impedance matching between the amplifier and the speakers, thus greatly reducing attenuation and distortion in the signal transmission process, and guaranteeing the purity and integrity of the audio signal.

2.Advantage of high-quality PoMo alloy magnetic core
Adopting PoMo alloy as the core material, this nickel-iron alloy is known for its high magnetic permeability. The high permeability enables the transformer to efficiently sense and transfer the magnetic field when transmitting audio signals, effectively reducing hysteresis loss and signal loss. Compared with ordinary iron core transformers, signal loss can be significantly reduced. At the same time, PoMo alloy can significantly inhibit signal distortion, whether it is the crisp notes of high frequency or the heavy sound effects of low frequency, can be highly fidelity to restore the audio signal waveforms, to bring the user extremely close to the original sound of the listening experience.

3. Excellent audio isolation function
In the audio system, the core function is isolation. The ability to effectively isolate audio equipment from electrical noise sources is particularly important in professional audio scenarios that require extremely high audio quality, such as recording studios. By preventing electrical interference from entering the audio signal transmission path, it ensures that the recorded sound is clean, clear and free of noise interference, providing quality material for audio post-production. In high-end home theater and other consumer-grade audio systems, it can also effectively improve audio quality, create an immersive and immersive audio environment to meet the user's pursuit of high-quality audio enjoyment .
