0R5 Surface Mount Inductor High Power SMD Patch Inductor with Copper Wire

Brand Name:	ZXY
Model Number:	ZXY-HECEB10056-0R5M
MOQ:	Negotiable
Price:	Negotiable
Packaging Details:	1000pieces / reel :380mm325mm345mm
Payment Terms:	T/T,Paypal

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen,China

Certification:

RoHS,ISO9001,CE

Features:

High Performance

Product Name:

0R5 Surface Mount Inductor

Material:

Copper Wire

Type:

Inductor Surface Mount

Application:

Power, Lighting, Etc.

Package Type:

Reel Packaging

Supply Ability:

200K-pcs/month

Highlight:

Copper Wire SMD Patch Inductor

High Power Surface Mount Inductor

Surface Mount SMD Patch Inductor

Product Description

0R5 Surface Mount Inductor High Power SMD Patch Inductor with Copper Wire

1.Product Description

Model Number	ZXY-0R5
Place of Origin	Guangdong, China
Brand Name	ZXY
Certification	ISO9001 RoHS CE
Operating Temperature	-25℃~85℃
Material	Ferrite Core+ UEW copper Wire
Usage	Electronic equipments
Dimension	Customized
DC Resistance (mΩ)	Customized
Exports	Worldwide

0R5 Surface Mount Inductors Features

▪ Magnetic shieled structure:excellent resistance to electro magnetic interference(EMI).

▪ A composite structure, ultra low buzz noise.

▪ Low loss, high efficiency, wide application frequency.

▪ Lightweight design, save space, suitable for high density SMT.

▪ Die-casting bylow loss alloy powder:low impedance, small parasitic capacitance.

▪ Operating temperature : -40℃ ～ +125℃ (Including coil’s temperature rise)

2.0R5 Surface Mount Inductors Principle of Operation:

The basic function of 0R5 surface mount inductors is to transient current and resist it by magnetic field action. When current passes through an inductor, it generates a magnetic field inside the inductor. The impedance of the inductor is proportional to the rate of change of the current, according to Faraday I electromagnetic induction, the self-induced electromotive force of the inductor that is the induced voltage

3.0R5 Surface Mount Inductors Surface Mount Construction:

0R5 surface mount inductors are usually miniaturized so that they can be soldered directly to the surface of a circuit board. The structure generally consists of a magnetic core and copper wires wound on it. The purpose of the core is to concentrate the magnetic field and increase the inductance, thereby increasing the efficiency of the inductor.

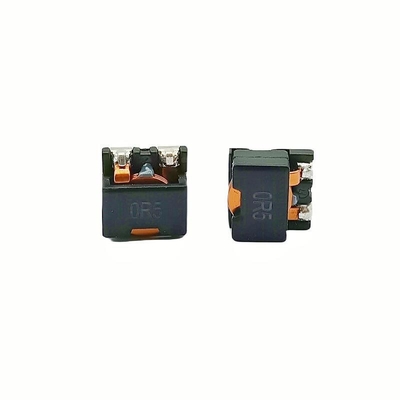

0R5 Surface Mount Inductor High Power SMD Patch Inductor with Copper Wire 0

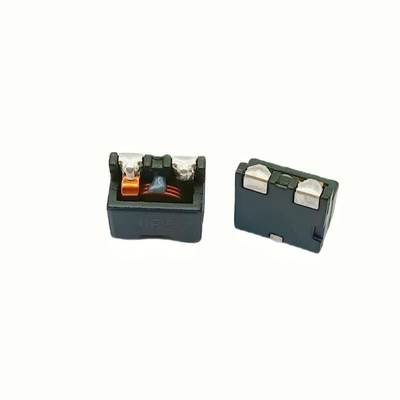

0R5 Surface Mount Inductor High Power SMD Patch Inductor with Copper Wire 2

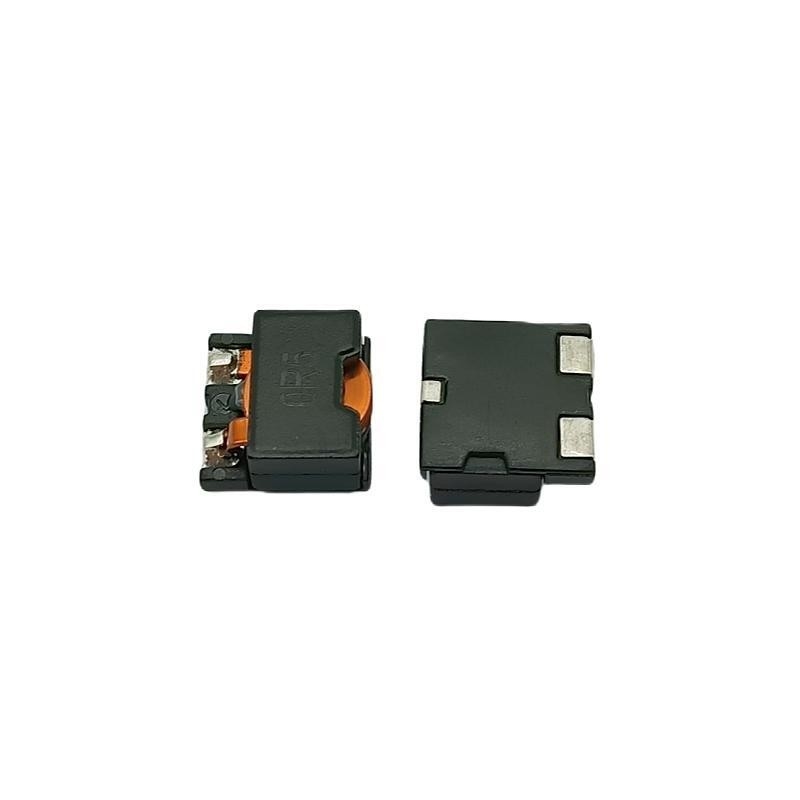

0R5 Surface Mount Inductor High Power SMD Patch Inductor with Copper Wire 4
