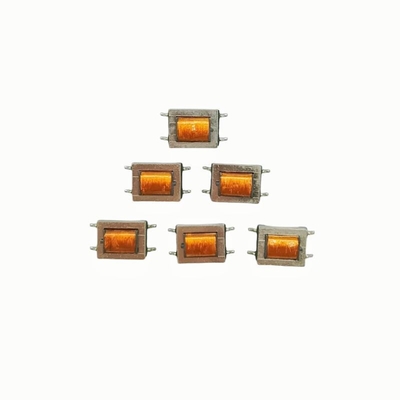

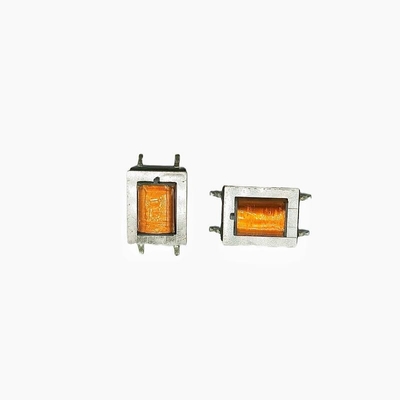

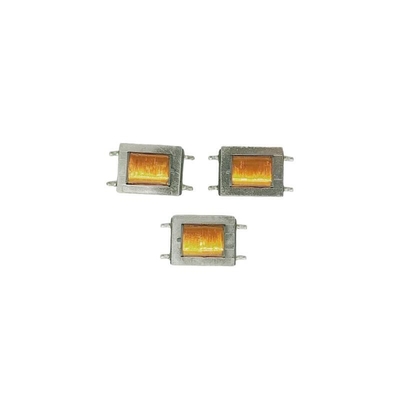

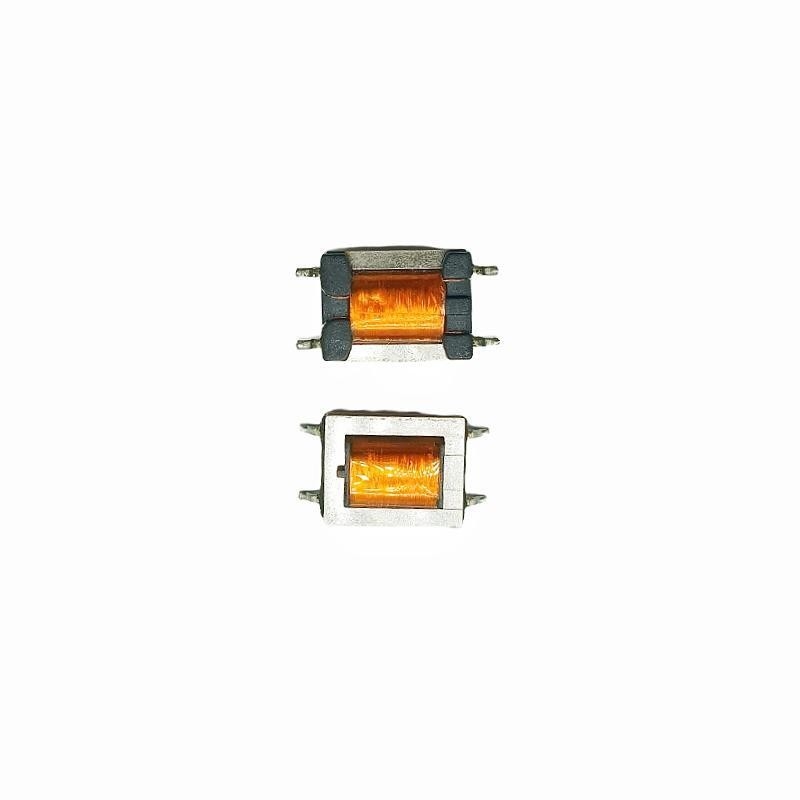

ED8 SMD Permalloy Transformer 600:600 1:1 for Home Recording Setups

1.Product Description

ED8 SMD Permalloy Transformer is a transformer made of ED8 packaging and Permalloy material. Pomo alloy is a nickel iron alloy with high magnetic permeability and low coercivity, suitable for making transformer cores, which can optimize electromagnetic performance and efficiency. ED8 SMD Permalloy Transformers typically have smaller sizes (such as 14mm * 5mm) and support surface mount (SMD), making them easy to integrate into modern electronic devices. This type of transformer may have different impedance ratios and turns ratios to accommodate different voltage conversion and impedance matching requirements. At the same time, it may also have characteristics such as a wide frequency range and high inductance value, making it suitable for audio signal processing and other applications that require high electromagnetic performance.

2.Application

1. Professional Recording Studios​

In professional recording studios, the 600:600 2207 Permalloy Audio Transformer is a linchpin for high - quality audio capture. Microphones, often with a 600 - ohm impedance, need to be connected to pre - amplifiers or audio interfaces. The transformer's 600:600 turns ratio precisely matches these impedances, allowing for an optimal transfer of the weak audio signals from the microphone. This ensures that every nuance of the sound, whether it's the delicate strum of a guitar or the subtle inflections of a singer's voice, is accurately captured without loss of detail. By minimizing signal distortion and reflection, the transformer helps in creating recordings that are rich in sound quality, suitable for professional music production, film scoring, and voice - over work.​

2. Home Recording Setups​

For home recording enthusiasts, the 600:600 2207 Permalloy Audio Transformer can significantly enhance the quality of their recordings. In a home studio, when using a microphone to record vocals, instruments, or podcasts, the transformer bridges the gap between the microphone and the recording device. It compensates for any impedance mismatches that might occur in a home - based setup, where equipment may not always be of the highest professional grade. As a result, home users can achieve recordings that are cleaner, with less background noise and more accurate sound reproduction. This is particularly beneficial for independent musicians, podcasters, and content creators who want to produce high - quality audio from the comfort of their homes.​

3. Audio Mixing Consoles​

Audio mixing consoles are at the heart of any audio production facility, and the 600:600 2207 Permalloy Audio Transformer plays a crucial role in their operation. These consoles receive audio signals from multiple sources, such as microphones, musical instruments, and playback devices. The transformer helps in distributing these signals to different processing units within the console, ensuring that the impedance is correctly matched at each stage. This enables seamless integration of various audio sources, allowing sound engineers to blend, balance, and process the signals effectively. Whether it's in a large - scale recording studio, a live concert venue, or a radio station, the transformer's ability to maintain signal integrity during distribution is essential for creating a harmonious and balanced audio output.​

4. Broadcasting Studios​

In broadcasting studios, where clear and stable audio transmission is of utmost importance, the 600:600 2207 Permalloy Audio Transformer is an indispensable component. It is used to connect announcer microphones, audio sources from remote locations, and other input devices to the broadcast equipment. The transformer's low signal distortion and high - quality impedance matching capabilities ensure that the audio signals are transmitted without degradation, even over long distances or through complex networks. This results in a consistent and high - quality audio experience for the listeners, whether they are tuning in to a radio station, watching a live TV broadcast, or streaming audio content online.​

5. High - End Home Audio Systems​

In high - end home audio systems, the 600:600 2207 Permalloy Audio Transformer can be used to improve the connection between different audio components. For example, when connecting a turntable or a CD player to a high - end amplifier, the transformer can optimize the impedance match, enhancing the transfer of audio signals. This leads to a more detailed and immersive audio experience, with improved soundstage, better bass response, and clearer highs. Home audio enthusiasts who strive for the best possible sound quality can benefit from integrating this transformer into their systems, as it helps to unlock the full potential of their high - end audio equipment.
