EI30 Encapsulated Low Frequency Transformer Mini Sealed Plug PCB Board Epoxy Potting Transformer

Brand Name:	ZXY
Model Number:	EI30
MOQ:	Negotiable
Price:	Negotiable
Packaging Details:	100pieces / Carton size:380mm325mm345mm
Payment Terms:	T/T,Paypal

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen,China

Certification:

RoHS,ISO9001,CE

Application:

Power Supply, Industrial Power Supplies, Home Audio-visual Equipment, Etc.

Frequency:

50/60Hz

Type:

ZXY-EI

Winding Material:

Copper

Number Of Phase:

Single

Rated Capacity:

Customized

Product Material:

Z11 Silicon Steel Sheet

Supply Ability:

200K-pcs/month

Highlight:

Low Frequency PCB Board Transformer

EI30 Encapsulated Low Frequency Transformer

Mini Sealed Plug PCB Board Transformer

Product Description

EI30 Encapsulated Low Frequency Transformer Mini Sealed Plug PCB Board Epoxy Potting Transformer

1.Company Profile

Shenzhen Zhixiangyuan Electronics Co., Ltd. is a high-tech enterprise specialized in customizing various kinds of special inductors, coils and transformers for customers. We are located in Guanlan High-tech Industrial Park, Longhua District, Shenzhen, Guangdong, China. The company was founded in 2011, covers an area of more than 2000 square meters, with two production bases in Huizhou and Guangan, can produce 120 million ROHS environmental protection requirements of inductors and transformers every year, the products are widely used in communication products and equipment, medical electronic equipment, automotive electronics, sports and fitness equipment, sound card, microphone, sweeping robot. Beauty instruments and consumer electronics.

We have a group of professional technical team with rich experience in R & D and production, using industrial-grade raw materials and a large number of proprietary technologies, committed to medical electronics, automotive electronics, IT, aerospace, security and other product fields, to provide high-quality inductor coils and transformers and other products.

We will be quality products, excellent service, preferential prices, excellent reputation, sincerely welcome customers at home and abroad to visit, cooperation, thank you very much for choosing Zhixiangyuan electronic products! As long as you give Zhixiangyuan a phone call, an email, a fax or online communication, Zhixiangyuan will have professional staff to provide you with fast, high quality and intimate service!

2.Product Description

a.Low-frequency potting transformer Water-proof insulated transformer Mechanical equipment power transformer

Our EI30 Low frequency 220V to 9V/1VA power transformer is a high quality electrical equipment for voltage conversion. With excellent performance and stable power output, it is suitable for various application scenarios.

b. Features

The product has good adhesion mechanical strength and electrical properties.

c.Wide range of applications

Widely used in automotive, electronics, microwave communication, instrumentation, etc. Installed in USB data cable AV cable, video audio cable and mouse cable.

3.Sort by Installation Method

It is divided into pin type and lead saddle clip type. The pin type is directly welded to the circuit board. The lead type has external leads. Most of them have an iron shell on the outside, and the iron shell has mounting holes that can be screwed.

4.General Specification

Partnumber:EI30 hard feet 2+2

Storage temperature range:-45℃ to +125℃
Operating temperature range:-40℃ to +85℃

Relative humity range:5% to 95%

NO	Product number	refer to(VA)	Dimensions	Mounting hole distance	Mounting holes	weight(KG)
1	EI28/8*12.5	1	482625	40	2--3*4	0.11
2	EI351013	1.8	573032	48	2--4*5	0.13
3	EI351015	2.5	573032	48	2--4*5	0.14
4	EI141/13*15.5	3	633336	53	2--4*6	0.18
5	EI141/13*18	4	633636	53	2--4*6	0.21
6	EI141/13*21	5	653936	55	2--4*6	0.24
7	EI141/13*26	6.5	654436	55	2--4*6	0.3
8	EI48/16*16	6	773443	164	2--4*6	0.26
9	EI48/16*20	7	773943	64	2--4*6	0.33
10	EI48/16*24	8	774343	64	2--4*6	0.37
11	EI48/16*28	11	774743	64	2--4*6	0.41
12	EI48/16*30	13	775143	64	2--4*6	0.44
13	EI57/19*19	13	874351	75	2--4*6	0.42
14	EI57/19*24	17	874851	75	2--4*6	0.5
15	EI57/19*28	20	875151	75	2--4*6	0.58
16	EI57/19*32	26	875951	75	2--4*6	0.66
17	EI57/19*38	31	876451	75	2--4*6	0.62
18	EI66/22*22	35	955059	82	2--4*6	0.75
19	EI66/22*28	45	955459	82	2--4*6	0.86
20	EI66/22*33	50	946359	82	2--4*6	0.92
21	EI66/22*35	55	976659	82	2--4*6	0.98
22	EI66/22*38	58	967059	82	2--4*6	1.06
23	EI66/22*44	69	967659	82	2--4*6	1.14
25	EI76.2/25.4*38	65	778070	63*60	4--4*6	1.6
26	EI76.2/25.4*45	85	778670	63*67	4--4*6	1.9
28	EI85.8/28.6*38	90	868478	72*62	4--4*6	2.1
29	EI85.8/28.6*44	110	868678	72*68	4--4*6	2.41
30	EI85.8/28.6*50	146	868478	172*74	4--4*6	2.8
31	EI96/32*26	70	967286	80*52	4--5*6	1.6
32	EI96/32*40	130	968686	80*66	4--5*6	2.6
33	EI96/32*48	170	969486	80*74	4--5*6	2.95
34	EI96/32*54	200	9610186	80*80	4--5*6	3.5
35	EI96/32*60	250	9610686	80*86	4--5*6	3.9
36	EI105/35*49	230	1059793	88*75	4--5*6	3.7
37	EI105/35*56	270	10510493	88*83	4--5*6	4.18
38	EI105/35*70	390	105118103	88*97	4--5*6	5.22
39	EI114/38*57	328	114108103	95*84	4--5*6	5.5
40	EI114/38*70	480	114122103	95*97	4--5*6	6.65
41	EI133.244.450	400	134115115	111*80	4--5*7	6.7
43	EI133.244.460	555	134125115	111*90	4--5*7	8.1
45	EI133.244.470	730	134135115	111*100	4--5*7	9.38
46	EI133.244.475	800	134140115	111*105	4--5*7	10.1
47	EI133.244.480	860	134145115	111/110	4--5*7	10.8
49	EI150/50*60	660	150135130	125*100	4--6*8	10.4
50	EI150/50*70	900	150145130	125*110	4--6*8	11.8
51	EI150/50*80	1100	150155130	125*120	4--6*8	12.8
52	EI150/50*100	1500	150175130	125*140	4--6*8	16
53	EI188/60*70	1550	190136165	158*110	4--6*8	21.2
54	EI188/60*80	1960	190146165	158*120	4--6*8	24.5
55	EI188/60*100	2600	190166165	158*140	4--6*8	30.5
56	EI188/60*120	3500	190186165	158*160	4--6*8	36.5
57	EI240/76*84	3000	241165208	180*115	4--Φ10	50
58	EI240/76*92	3500	241175208	180*120	4--Φ10	55
59	EI240/76*103	3860	241185208	180*140	4--Φ10	61
60	EI240/76*118	4800	241200208	180*148	4--Φ10	70
61	EI240/76*133	6000	241215208	180*160	4--Φ10	78

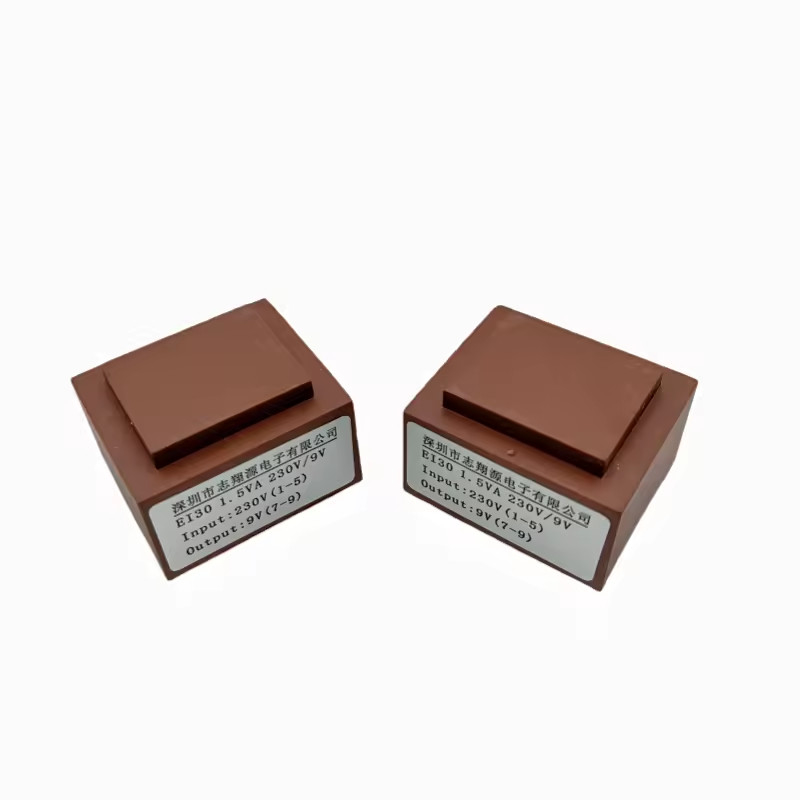

EI30 Encapsulated Low Frequency Transformer Mini Sealed Plug PCB Board Epoxy Potting Transformer 0

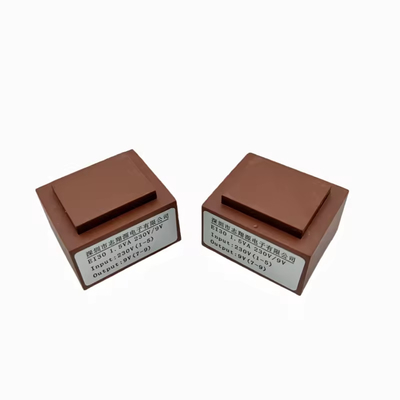

EI30 Encapsulated Low Frequency Transformer Mini Sealed Plug PCB Board Epoxy Potting Transformer 2

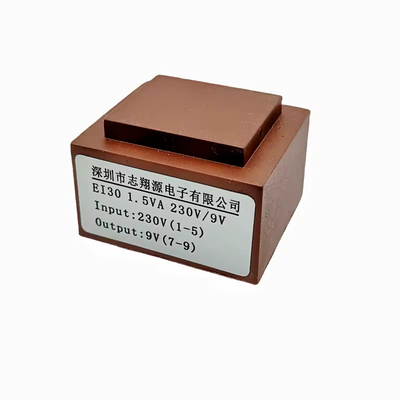

EI30 Encapsulated Low Frequency Transformer Mini Sealed Plug PCB Board Epoxy Potting Transformer 4

Mini Pcb EI Power Transformer Ei14 100w 12v 5a Amplifier Audio Transformer 1

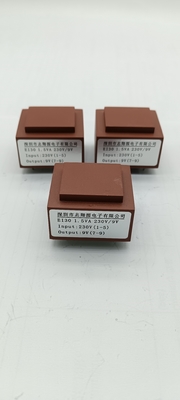

EI30 Encapsulated Low Frequency Transformer Mini Sealed Plug PCB Board Epoxy Potting Transformer 6

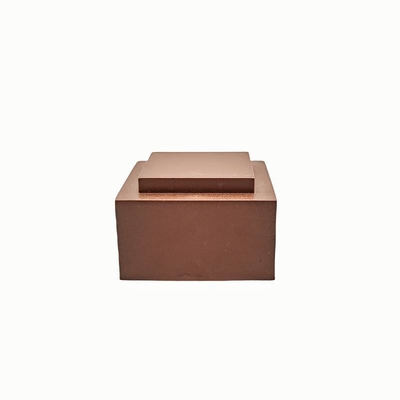

EI30 Encapsulated Low Frequency Transformer Mini Sealed Plug PCB Board Epoxy Potting Transformer 7

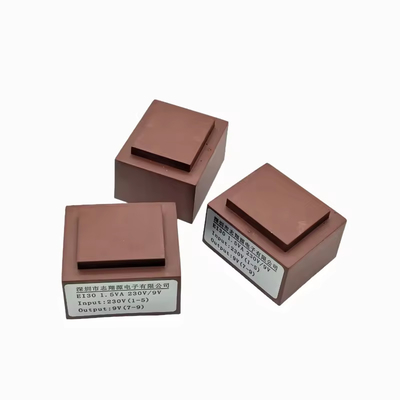

EI30 Encapsulated Low Frequency Transformer Mini Sealed Plug PCB Board Epoxy Potting Transformer 8
