Good price online

products details

Home > Products >
Permalloy Audio Transformer
>
Permalloy 3108 Series Audio Isolator Transformer Laminas With Metal Case
All Category

Audio Transformer

Permalloy Audio Transformer

Audio Isolator

Power Transformer

High Frequency Transformer

Inductor

Wireless Charging Coil

EMI Filter

Air Coil

Line Filter

Common Mode Inductor

Current Transformer

Toroidal Transformer

Low Frequency Transformer

Lan Transformer

Chip Inductor
Contact Us
Ms. Chen
rhea@zxycoil.com
+8613554723725
Contact Now
name
  • name
  • name
  • name
  • name
  • name
  • name
  • name

Permalloy 3108 Series Audio Isolator Transformer Laminas With Metal Case

Brand Name: ZXY
Model Number: ZXY-3108
MOQ: Negotiable
Price: Negotiable
Packaging Details: 1000pieces / Carton; Size:380mm*325mm*345mm
Payment Terms: T/T ,paypal transfer
Detail Information
Product Description
Detail Information
Place of Origin:
Shenzhen,China
Certification:
RoHS,ISO9001,CE
Model Number:
ZXY3108
Strong Point:
Wide Operating Frequency Range
Frequency:
Low
Product Keyword:
3108 Permalloy Audio Isolator Transformer
Shape:
Square/Round
Lead Time:
2-3 Weeks For Bulk Order
Supply Ability:
1000K-pcs/month
Highlight:

Permalloy Audio Isolation Transformer

,

Customized Audio Isolation Transformer

Product Description

Permalloy 3108 Series Audio Isolator Transformer Laminas With Metal Case

1.Product Description

The 3108 Permalloy Audio Isolator Transformer is a transformer that utilizes Permalloy material (the main components of which are iron, nickel, and small amounts of other elements) as the magnetic core. Due to its unique magnetic properties, Permalloy is widely used in high-precision electrical equipment and high-frequency power systems. Compared to conventional ferrite or silicon steel transformers, Permalloy transformers offer higher efficiency, sensitivity and stability in many applications.

Place of origin

Shenzhen,China

Brand name

ZXY-3108

Model dimension

G31*22mm

Material

Permalloy

Product key word

Permalloy audio transformer

Shape

Circular

Wire material

Copper wire

Supplier type

Original manufacturer

Feature

High security

Packaging

Carton

Frequency

Low Frequency

Product parameters

20K:600,10K:600, 600:600, 600:10K, 10K:10K, 50k:600,600:20k,150/600:10k,150:10k/20k,other

Mounting Type

PCB Mount

Pins Number

3+3/4+4/6+6

Coil Number

Autotransformer

Core Material

EE24/EI24/EE25/EI25



NO

TEST ITEM

TEST TERMINAL

LIMIT

TEST CONDITION

TEST INSTRUMENT

1

INDUCTANCE

1-4

450H MIN

100HZ 0.3V

CD1063

5-8

4.7H MIN

100HZ 0.3V

CD1063

2

DCR

1-4

1.46K OHM±15%

25°C

CD1063

5-8

36 0HM±15%

25°C

CD1063

3

IMPEDANCE

1-4

50K OHM

5-81KHZ,6000HM LOAD

CD1063

4

TURN RATION

5-8:1-4

1:9+2%

10KHZ 1V

CH3250

5

PRI-SEC

1,4-5,8

1250V

1mA 2S

HIPOT TESTER

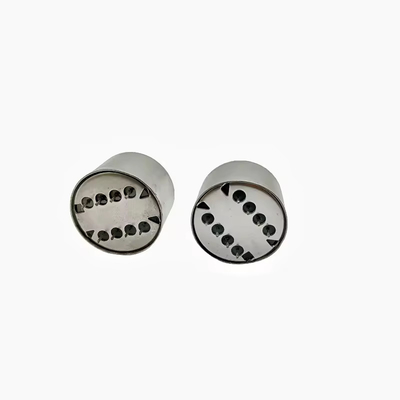

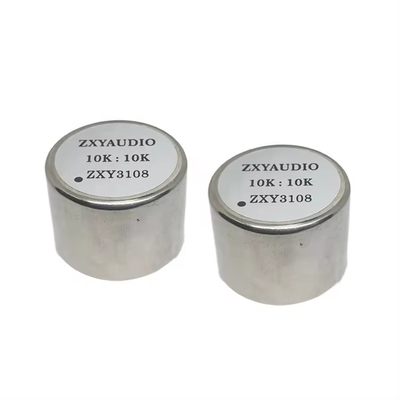

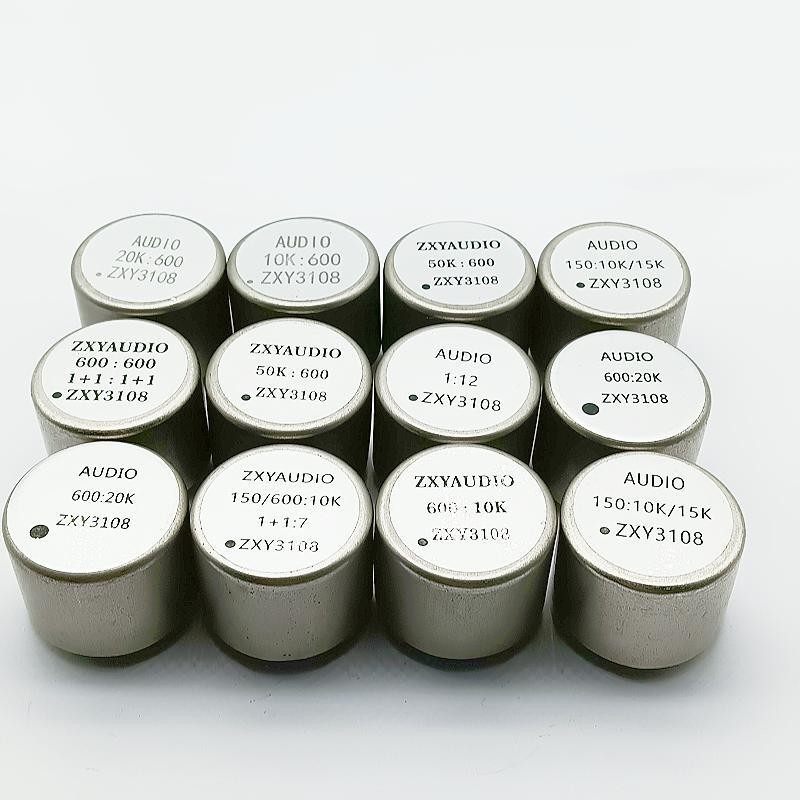

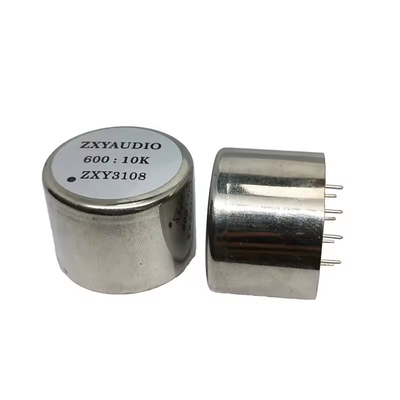

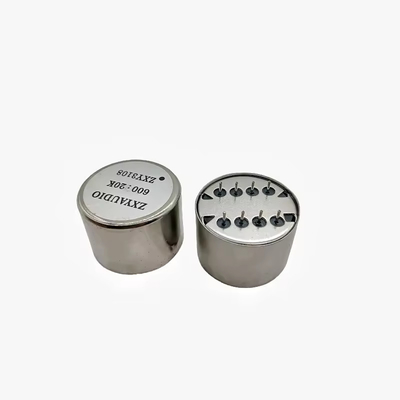

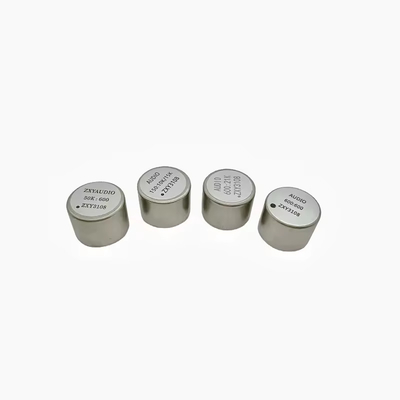

Permalloy 3108 Series Audio Isolator Transformer Laminas With Metal Case 0

Permalloy 3108 Series Audio Isolator Transformer Laminas With Metal Case 1







Permalloy 3108 Series Audio Isolator Transformer Laminas With Metal Case 2Permalloy 3108 Series Audio Isolator Transformer Laminas With Metal Case 3

Permalloy 3108 Series Audio Isolator Transformer Laminas With Metal Case 4Permalloy 3108 Series Audio Isolator Transformer Laminas With Metal Case 5

Permalloy 3108 Series Audio Isolator Transformer Laminas With Metal Case 6Permalloy 3108 Series Audio Isolator Transformer Laminas With Metal Case 7











2.Other Recommended Produtcs

Permalloy 3108 Series Audio Isolator Transformer Laminas With Metal Case 8









3.Company Profile

Permalloy 3108 Series Audio Isolator Transformer Laminas With Metal Case 9Permalloy 3108 Series Audio Isolator Transformer Laminas With Metal Case 10





Tags:

Permalloy Audio transformer

High Quality Audio Signal Transformer

Audio Signal Isolation Transformer
