Permalloy Audio Transformer

ZXY2207 Permalloy Audio Transformer Laminas Audio Isolation Amplified 600:600

All Category

Chip Inductor

Ms. Chen

rhea@zxycoil.com

+8613554723725

Contact Now

ZXY2207 Permalloy Audio Transformer Laminas Audio Isolation Amplified 600:600

Brand Name:	ZXY
Model Number:	ZXY-2207
MOQ:	Negotiable
Price:	Negotiable
Packaging Details:	1000pieces / Carton; Size:380mm325mm345mm
Payment Terms:	T/T ,paypal transfer

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen,China

Certification:

RoHS,ISO9001,CE

Wire Material:

Copper

Input Voltage:

220V, 110V, 240V, 100V, 230V, Other

Output Voltage:

12V, 24V, 36V, 2V, 5V, 6V, 9V, 48V, Other

Other Name:

600:600 2207 Permalloy Audio Transformer

Number Of Phase:

Single Phase

Packaged:

As Your Request

Supply Ability:

1000K-pcs/month

Highlight:

10K:600 Permalloy Audio Transformer

nickel steel sheet Permalloy Audio Transformer

audio isolation Permalloy Audio Transformer

Product Description

ZXY2207 Permalloy Audio Transformer Laminas Audio Isolation Amplified 600:600

1.Product Description

The 600:600 2207 Permalloy Audio Transformer is a high - performance audio component designed for precise audio signal transfer. With its 600:600 turns ratio, it is expertly engineered to match the impedance of audio devices with 600 - ohm impedance. This ensures optimal power transfer, minimizing signal distortion and maximizing the integrity of the audio signal. The utilization of permalloy in its construction is a key differentiator. Permalloy, known for its high magnetic permeability, enables the transformer to efficiently transfer magnetic flux, reducing magnetic reluctance and power loss. As a result, it can accurately reproduce audio signals with remarkable clarity and fidelity, making it an ideal choice for a wide range of applications. In professional recording studios, it plays a crucial role in connecting microphones to pre - amplifiers or audio interfaces, guaranteeing the high - quality capture of audio. In home recording setups, it helps home users achieve better audio recording quality, bringing a touch of professionalism to their recordings. It is also an essential part of audio mixing consoles, facilitating the seamless distribution of audio signals from different sources, and in broadcasting studios, it ensures clear and stable audio transmission, crucial for delivering top - notch audio content to the audience.

2.Performance Characteristics

Performance Features	Description
Turns Ratio	The 600:600 turns ratio is specifically designed to match the impedance of audio devices with 600 - ohm impedance. This precise matching ensures optimal power transfer between the connected devices. For example, when connecting a 600 - ohm microphone to a 600 - ohm pre - amplifier, it enables seamless signal flow, minimizing signal reflection and power loss at the connection point. As a result, the audio signal can be efficiently transmitted, maintaining its integrity and strength.
Permalloy Core Material	Permalloy, which is used as the core material, has high magnetic permeability. This property allows the transformer to efficiently transfer magnetic flux. High magnetic permeability means that the core can easily channel and concentrate the magnetic field generated by the windings. As a consequence, magnetic reluctance is reduced, and power loss during the transfer of audio signals is minimized. In practical terms, this leads to more efficient operation of the transformer, with less energy being wasted as heat. It also contributes to better signal reproduction, as the magnetic field can be transferred more effectively to the secondary winding, resulting in a more accurate and stable audio output.
Low Signal Distortion	The transformer is engineered to minimize signal distortion. Thanks to its well - designed structure and high - quality materials, it can accurately reproduce audio signals with remarkable clarity and fidelity. When audio signals pass through the transformer, the electrical and magnetic properties of the components work together to ensure that the waveform of the original signal is preserved as closely as possible. This is crucial for applications where high - quality audio is required, such as in professional recording studios. In such environments, even the slightest distortion can affect the overall quality of the recording, and the 600:600 2207 Permalloy Audio Transformer helps to avoid such issues, providing a clean and accurate audio signal for further processing.
Wide Application Range	It has a wide application range. In professional recording studios, it is essential for connecting microphones to pre - amplifiers or audio interfaces, ensuring the high - quality capture of audio. In home recording setups, it enables home users to achieve better audio recording quality, adding a professional touch to their recordings. It is also an integral part of audio mixing consoles, facilitating the seamless distribution of audio signals from different sources. In broadcasting studios, it plays a vital role in ensuring clear and stable audio transmission, which is essential for delivering top - notch audio content to the audience. Whether in a professional or consumer audio setting, this transformer can meet the diverse needs of audio signal transfer and processing.

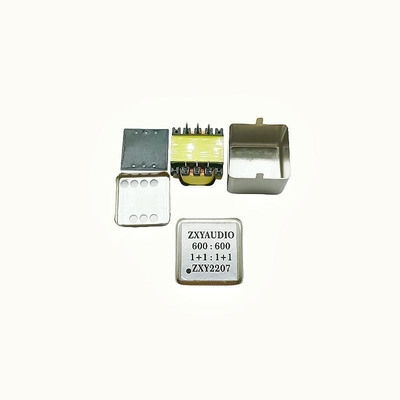

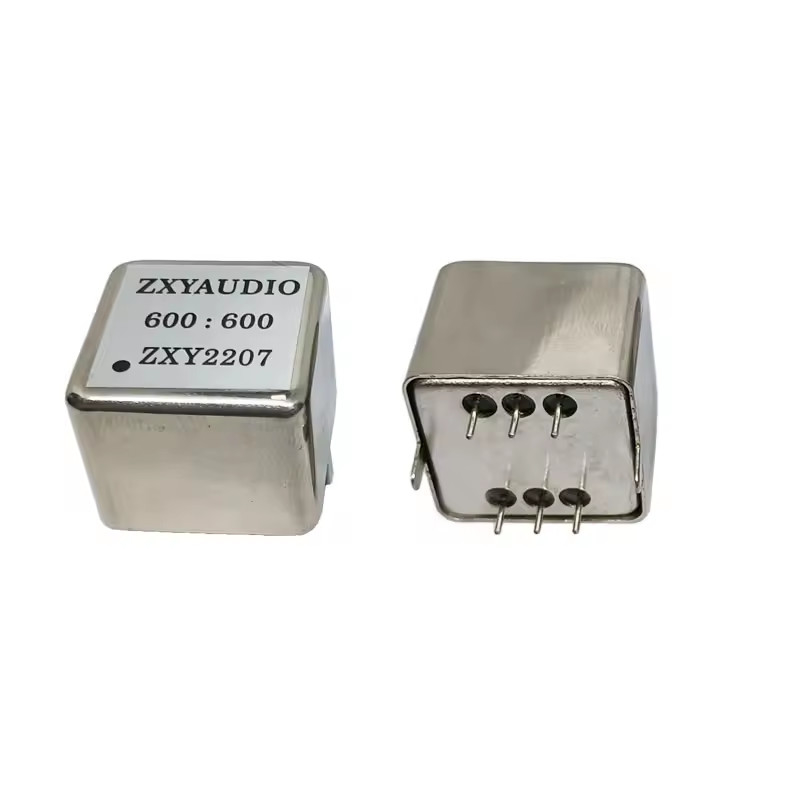

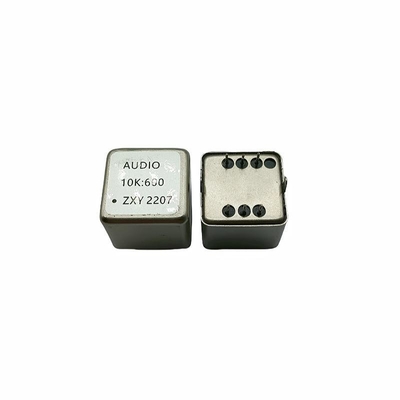

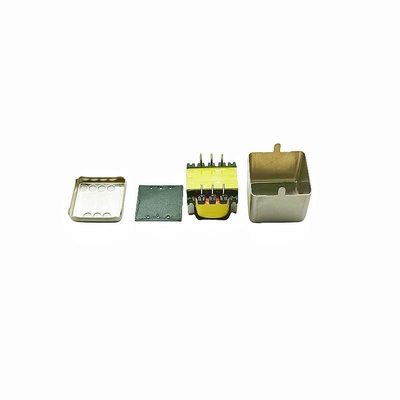

ZXY2207 Permalloy Audio Transformer Laminas Audio Isolation Amplified 600:600 0

ZXY2207 Permalloy Audio Transformer Laminas Audio Isolation Amplified 600:600 2

ZXY2207 Permalloy Audio Transformer Laminas Audio Isolation Amplified 600:600 4

ZXY2207 Permalloy Audio Transformer Laminas Audio Isolation Amplified 600:600 6

ZXY2207 Permalloy Audio Transformer Laminas Audio Isolation Amplified 600:600 8

ZXY2207 Permalloy Audio Transformer Laminas Audio Isolation Amplified 600:600 10

ZXY2207 Permalloy Audio Transformer Laminas Audio Isolation Amplified 600:600 11

ZXY2207 Permalloy Audio Transformer Laminas Audio Isolation Amplified 600:600 12
