High Conductive Permalloy Transformer With PCB Board For Broadcast Media System

Brand Name:	ZXY
Model Number:	ZXY-3108
MOQ:	Negotiable
Price:	Negotiable
Packaging Details:	100pieces / Carton size:380mm325mm345mm
Payment Terms:	T/T paypal xtransfer

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen,China

Certification:

RoHS,ISO9001-2001,CE

Usage:

Broadcast Media System

Keywords:

Permalloy Transformer With PCB Board

Winding:

2.5~50000 Or Customized

Coil Number:

Customized

Wire Dia:

0.025~2.0 Or Customized

Color Of Bobbin:

Customer Designated

Supply Ability:

2000K-pcs/month

Highlight:

High Conductive Audio Transformer

Audio Transformer With Uniform Frequency

Audio Transformer For Broadcast

Product Description

High Conductive Permalloy Transformer With PCB Board For Broadcast Media System

1.Product Description

The Permalloy Transformer With PCB Board is an innovative and highly integrated audio - related component. Its core is constructed from permalloy, a nickel - iron alloy renowned for its outstanding magnetic properties. This high - magnetic - permeability material enables efficient magnetic flux transfer, significantly reducing magnetic reluctance and power loss during audio signal processing. As a result, it can ensure stable and high - quality audio signal transmission. The inclusion of a PCB board further enhances its functionality. The PCB board is designed to precisely connect and route the electrical circuits associated with the transformer. It allows for easy integration with other components in an audio system, simplifying the overall circuit design and assembly process. For instance, in a professional audio mixing console, the Permalloy Transformer With PCB Board can be directly incorporated into the circuit layout. The PCB board provides a stable platform for the transformer, ensuring reliable electrical connections. This integration not only saves space but also improves the overall performance of the audio system by minimizing signal interference and optimizing signal flow. Whether in a high - end home audio setup, a commercial audio installation, or a recording studio, this combination of permalloy transformer and PCB board offers a convenient, efficient, and high - performance solution for audio signal processing and circuit integration.

1. Material Characteristics
High permeability Permalloy core: The transformer core is made of Permalloy, a nickel-iron alloy with extremely high permeability. In audio signal processing, high permeability enables efficient magnetic flux transfer and significantly reduces the magnetic resistance, thus reducing power loss. Tested, compared with ordinary core materials, the use of PoMo alloy core can reduce power loss by 30% - 40%, to ensure the stability of the audio signal in the conversion and transmission process, laying the foundation for the realization of high-quality audio signal output.

2. Structural design
Integrated PCB board: The PCB board is a highlight of the structure. It has been carefully designed to enable precise connection and planning of the transformer-related circuits. This integrated design makes it easy to integrate the transformer with other components in the audio system, greatly simplifying the overall circuit design and assembly process. In practical applications, such as the production of small audio amplifiers, engineers do not need to spend a lot of time and effort to design complex external circuit connections, and can directly utilize the pre-set lines and interfaces on the PCB board to quickly complete the connection between the transformer and other components, thus improving production efficiency.

3. Performance Advantages
Stable and efficient signal transmission: Based on the synergistic effect of the Permalloy core and the PCB board, the transformer is able to realize stable and high-quality audio signal transmission. When processing audio signals, it not only effectively reduces signal distortion, but also maintains signal integrity. For example, in professional recording equipment, it can accurately amplify and transmit the weak audio signals captured by the microphone to ensure that the recorded audio content is a true reproduction of the live sound, to meet the professional scenarios that require extremely high precision of audio signals.
Strong anti-interference capability: The layout and design of the PCB board can effectively shield the external electromagnetic interference, while the PoMo alloy core also helps to resist the influence of stray magnetic fields. In a complex electromagnetic environment, such as large performance venues, many electronic devices work at the same time, the transformer is still able to work stably to ensure that the audio signal is not interfered with, providing pure audio signals for the sound system, to ensure the performance of the audio effect.

2.Advantage Categories

Advantage Categories	Details
Facilitating Device Miniaturization	In the field of portable audio devices, space is extremely precious. Products like wireless earphones need to accommodate components such as batteries, Bluetooth modules, and sound - producing units in their internal space. The Permalloy Transformer With PCB Board, with its integrated design, combines the transformer and the PCB board into one, significantly reducing the occupied space. Compared with traditional separate designs, it can save about 30% - 40% of the internal space. This enables products to achieve a more compact and lightweight appearance design while maintaining functional integrity, greatly enhancing product portability and meeting users' needs for enjoying high - quality audio anytime and anywhere.
Adapting to Diverse Audio Scenarios	Home Entertainment Scenarios: In high - end home theater systems, there are extremely high requirements for audio restoration and immersion. This transformer can precisely process audio signals. By leveraging the high magnetic permeability of the permalloy core and the stable circuit connection of the PCB board, it ensures that audio signals are undistorted during transmission. Whether playing the shocking explosion sounds in Hollywood blockbusters or the delicate classical music performances, it can be perfectly presented through the sound system, creating an immersive audio - visual feast for home users. Commercial Audio Scenarios: In commercial places such as large shopping malls and conference rooms, a wide - range audio propagation is required, and the sound needs to be clear and stable. The Permalloy Transformer With PCB Board, with its anti - interference ability and efficient signal transmission performance, can work stably in a complex electromagnetic environment. It can accurately distribute the audio source signal to the speakers in each area, ensuring that every listener in every corner can hear clear and noise - free sound, meeting the high requirements for audio propagation in commercial places. Professional Audio Production Scenarios: In professional recording studios and music production studios, the processing accuracy of audio signals is crucial to the quality of works. This transformer can efficiently amplify and accurately transmit the weak audio signals collected by microphones, reducing signal distortion and noise interference. Music producers can rely on it to capture every subtle sound detail, from the singer's soft chanting to the delicate tremolo of musical instruments, all of which can be truly restored, providing strong support for creating high - quality music works.
Enhancing Device Stability and Reliability	Reducing Circuit Failure Risks: Since the PCB board integrates the circuits related to the transformer, it reduces the complexity of external circuit connections. This means that during the device's operation, the probability of circuit failures caused by problems such as loose wires and poor contacts is greatly reduced. Taking the car audio system as an example, the vehicle vibrates continuously during driving, and the traditional separate circuit design is prone to loose wires, affecting the audio effect. However, the highly integrated Permalloy Transformer With PCB Board can better adapt to the vibrating environment, ensuring the stable transmission of audio signals and enhancing the reliability of the car audio system. Optimizing Heat Dissipation Management: A reasonable PCB board layout is conducive to the heat dissipation management of the transformer. When audio devices work for a long time, the transformer generates a certain amount of heat. The PCB board can effectively disperse the heat through optimized circuit layout and material selection, avoiding the local accumulation of heat in the transformer. This not only helps to maintain the stable performance of the transformer but also extends its service life, ensuring that audio devices always maintain a good working state during long - term operation.

NO	TEST ITEM	TEST TERMINAL	LIMIT	TEST CONDITION	TEST INSTRUMENT
1	INDUCTANCE	1-4	450H MIN	100HZ 0.3V	CD1063
1	INDUCTANCE	5-8	4.7H MIN	100HZ 0.3V	CD1063
2	DCR	1-4	1.46K OHM±15%	25°C	CD1063
2	DCR	5-8	36 0HM±15%	25°C	CD1063
3	IMPEDANCE	1-4	50K OHM	5-81KHZ,6000HM LOAD	CD1063
4	TURN RATION	5-8:1-4	1:9+2%	10KHZ 1V	CH3250
5	PRI-SEC	1,4-5,8	1250V	1mA 2S	HIPOT TESTER

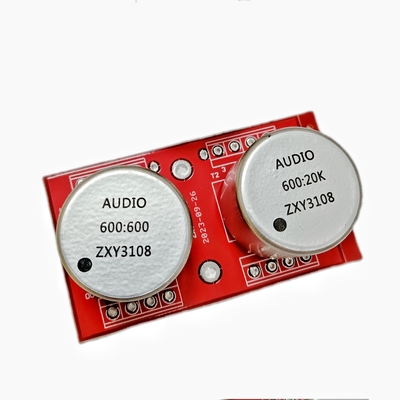

High Conductive Permalloy Transformer With PCB Board For Broadcast Media System 0

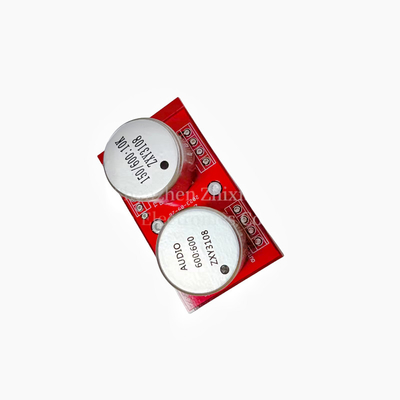

High Conductive Permalloy Transformer With PCB Board For Broadcast Media System 1

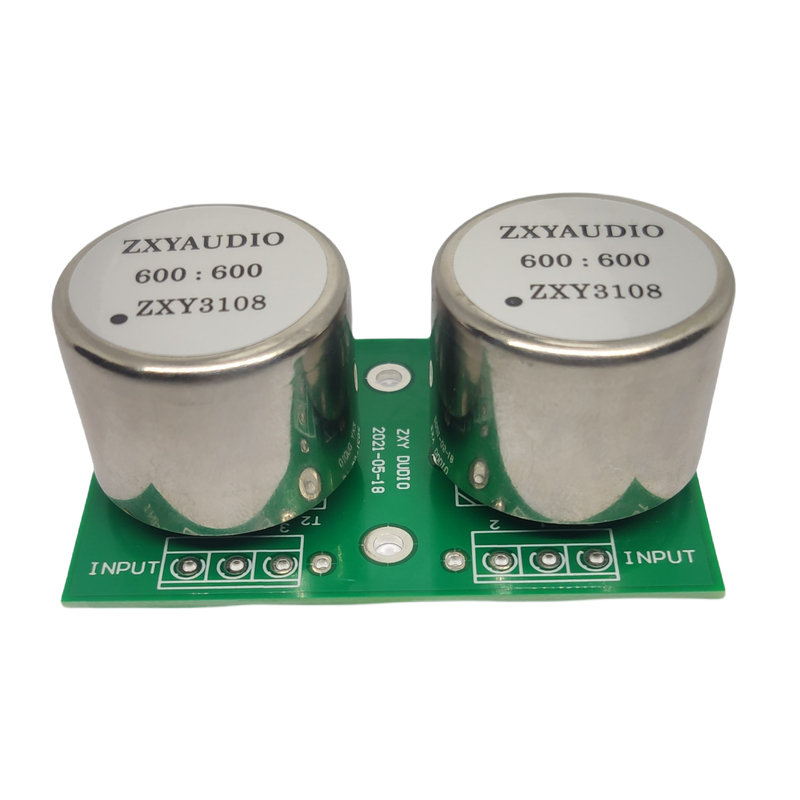

High Conductive Permalloy Transformer With PCB Board For Broadcast Media System 2
