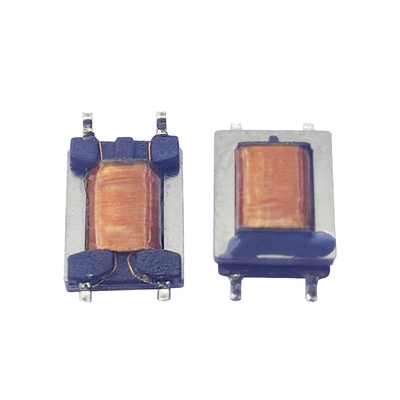

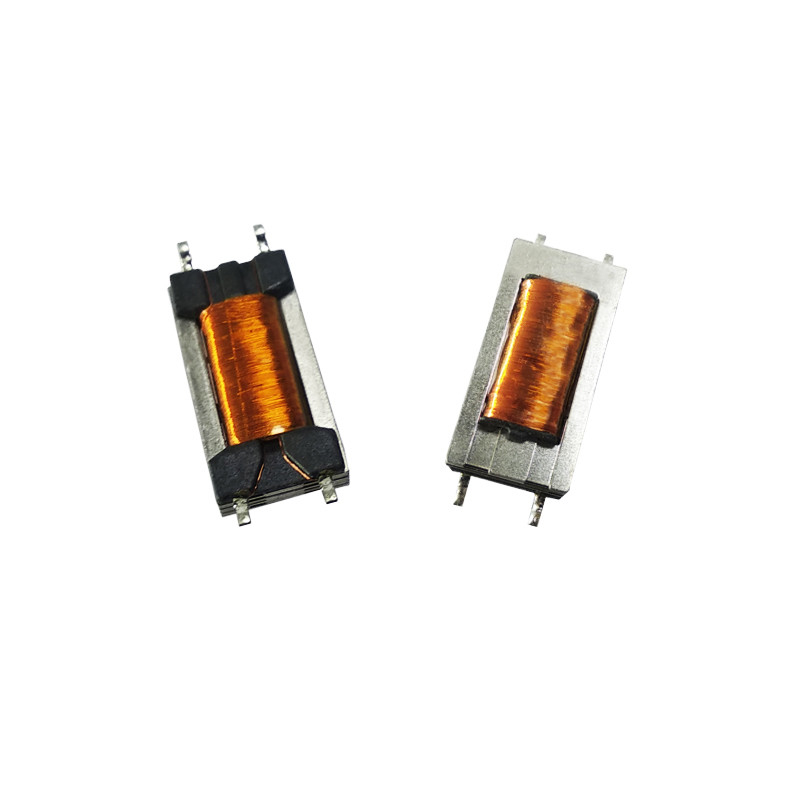

ED8*16 High Performance Audio Transformer Nickel Steel Sheet Ratio 1:1

1.Product Description

The ED816 Nickel Steel Sheet Audio Transformer is a specialized and high-performance component in the audio domain. It features an ED816 core structure crafted from nickel steel sheets, which endows it with unique and excellent magnetic properties. Nickel steel, known for its high magnetic permeability and low hysteresis loss, enables this transformer to efficiently transfer magnetic flux during the audio signal processing.

This audio transformer is designed to handle audio signals with precision. Its primary function is to either step up or step down the voltage levels of audio signals, depending on the application requirements, while maintaining the integrity of the audio waveform. The impedance matching capabilities of the ED8*16 Nickel Steel Sheet Audio Transformer are crucial in ensuring that audio components with different impedance characteristics can be connected seamlessly, minimizing signal reflections and maximizing power transfer.

In terms of its construction, the use of nickel steel sheets provides a robust and stable core that can withstand various operating conditions. The compact ED8*16 size makes it suitable for a wide range of audio equipment, especially those where space is at a premium, such as in portable audio devices, compact audio interfaces, or high-density audio circuit boards.

Moreover, it offers a wide frequency response that covers the entire audible spectrum. This means it can accurately reproduce audio signals from the deepest bass frequencies to the highest treble frequencies, delivering a rich and natural sound quality. Whether used in high-end home audio systems, professional recording studios, or audio setups for live performances, the ED8*16 Nickel Steel Sheet Audio Transformer plays a vital role in enhancing the overall audio performance by providing clean, undistorted, and reliable audio signal transmission. Its reliable performance and superior audio characteristics make it a preferred choice for audio engineers and enthusiasts seeking to achieve high-fidelity audio reproduction.

2.Product Advantages

1. Audio signal transmission and fidelity function: With the high magnetic permeability and low hysteresis loss characteristics of nickel steel sheets, it can accurately transmit audio signals and maintain the original waveform and sound quality of the audio signal to the greatest extent possible. It can cover a wide range of audio frequencies, from low to high, ensuring signal integrity and accuracy, providing users with a high-quality audio experience, whether it's enjoying music or professional audio production.

2. Balance and imbalance signal conversion function: It can achieve balance and imbalance conversion of audio signals. In some audio systems, it may be necessary to convert unbalanced audio signals into balanced signals to reduce the impact of external interference on the signal; Or convert the balanced signal into an unbalanced signal to adapt to specific device interfaces. This transformer can meet the requirements of signal conversion and increase the flexibility of audio system connection.

3. Signal amplification and buffering function: It plays a role in amplifying and buffering audio signals to a certain extent. Through reasonable winding design and magnetic core characteristics, it can enhance the strength of audio signals, provide stable signal output for subsequent circuits, reduce signal attenuation and distortion during transmission, and improve the overall performance of audio systems.





Application Field	Role and Working Principle
High-end Home Audio Systems	In high-end home audio systems, the ED8*16 Nickel Steel Sheet Audio Transformer works by matching the impedance among audio devices like players, amplifiers, and speakers through its winding design, while its high magnetic permeability nickel steel core enables accurate audio signal transmission with low loss, and the electrical isolation function eliminates electrical interference from home circuits to provide users with high-fidelity and pure sound.
Professional Recording Studios	In professional recording studios, this transformer functions by matching the impedance between various recording devices such as microphones, mixers, and recorders, allowing the weak audio signals from microphones to be efficiently transferred to the mixer without attenuation or distortion, and through its electrical isolation, it removes ground loop interference during recording; its wide frequency response enables accurate capture of all frequency sounds for high-quality original audio recording.
Live Performance Audio Equipment	For live performance audio equipment, the ED8*16 Nickel Steel Sheet Audio Transformer operates by matching the impedance of different musical instruments, microphones, and sound systems on the stage, ensuring smooth signal transmission and preventing sound distortion or volume instability; its electrical isolation isolates electromagnetic interference from stage lighting and power systems, and its signal amplification and buffering functions enhance the signal strength to cover the entire venue while stabilizing the output for a successful performance.
Radio Stations and Film & Television Production	In radio stations, this transformer processes and transmits audio signals, adjusting the voltage of audio signals according to the needs of different devices through its voltage transformation function to ensure stable signal quality from production to broadcast; in film and television production, it enables the conversion between balanced and unbalanced audio signals to meet the interface requirements of different shooting and post-production devices, and its high-fidelity signal transmission restores various sound effects in works by accurately transferring audio signals.
